SQ-6 ice pop tubes & ice lolly tubes blow molding machine
Rotary Blow Molding Machine is our famous machine, which is suitable to produce small bottles from 1ml to 800ml. This machine was widely used for produce ice lolly tubes, ice pop bottles, milk bottles, yogurt bottles, medicine bottles and pipette dropers.
Rotary Blow molding machine could work with LDPE, HDPE, PP materials, the bottle thickness could be controlled by our machine easily.
Our Rotary blow molding machine could produce with very high speed output, each hour can reach 3000 pieces of lolly tubes. 5000 pieces of pipette droppers. 1000 pieces above of the milk yogurt juice bottles;
Machine Parameters:
Max. Bottle Containment | 800ml |
Productive capacity | 2500-3000 PCS/HR for Lolly tube |
Allowed Mould width | 125mm |
Allowed Mould Thickness | 118mm |
Blowing Air pressure | 0.4-0.7Mpa |
Rated Power | 15kw |
Extruder Screw Diameter | 55mm |
Plasticizing Capacity | 40KG/Hour |
Size of Main Frame(L.W.H) | 3300×1200×1500mm |
Weight | 1500kg |
Main Machine Components:
Temperature Controller: OMRON from Japan
Motor Inverter: DELTA
Electrical Components: Delixi
Water and air rotary connector: SANQING SPEICAL DESIGNED.
Air Cylinder: ISAIA
We also could use other brand of electrical components based on special requirements.
Video Demo:

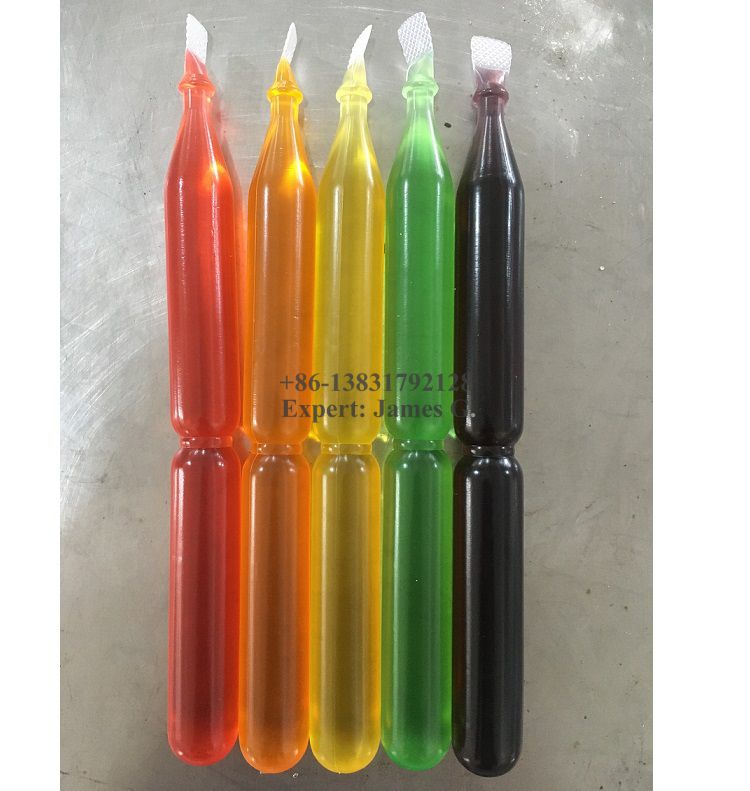

Ice lolly tubes blowing in process.
Below is ice lolly tube blow molding machine video from youtube.com
Below is litchi bottle 8 stations rotary blow molding machine demo::
Video Demo for machines operation in client jobsite:
We have three styles of rotary blow molding machine:
- connected style: the blower and extruder is connected to be a whole machine;
- separate style: the blower and extruder is separate to be two separate machines;
- PLC style: the blower and extruder is conneceted and controlled by PLC touch screen.

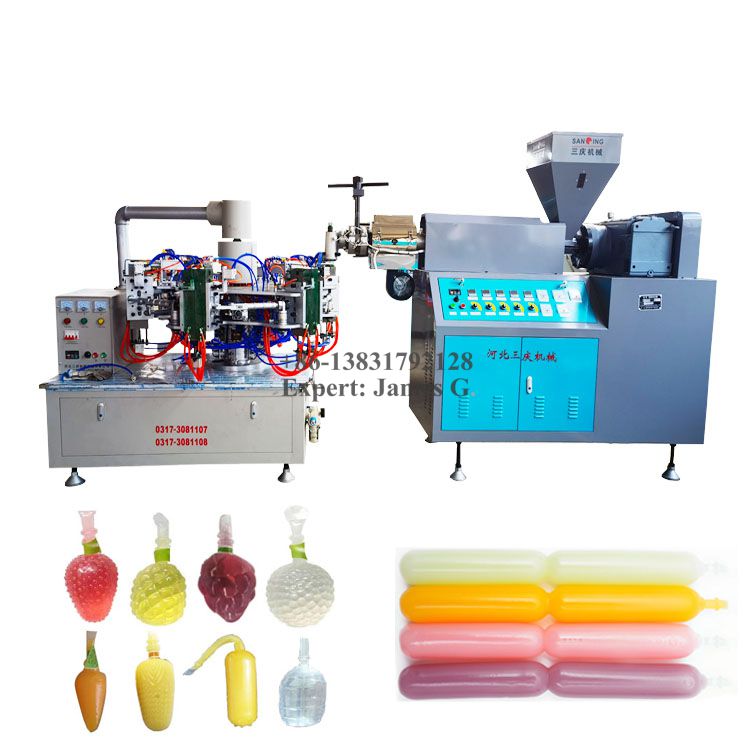

Connected Style Rotary Blow Molding Machine as below:
Separate Style Rotary Blow Molding Machine as below(Extruder and Blower Separately):

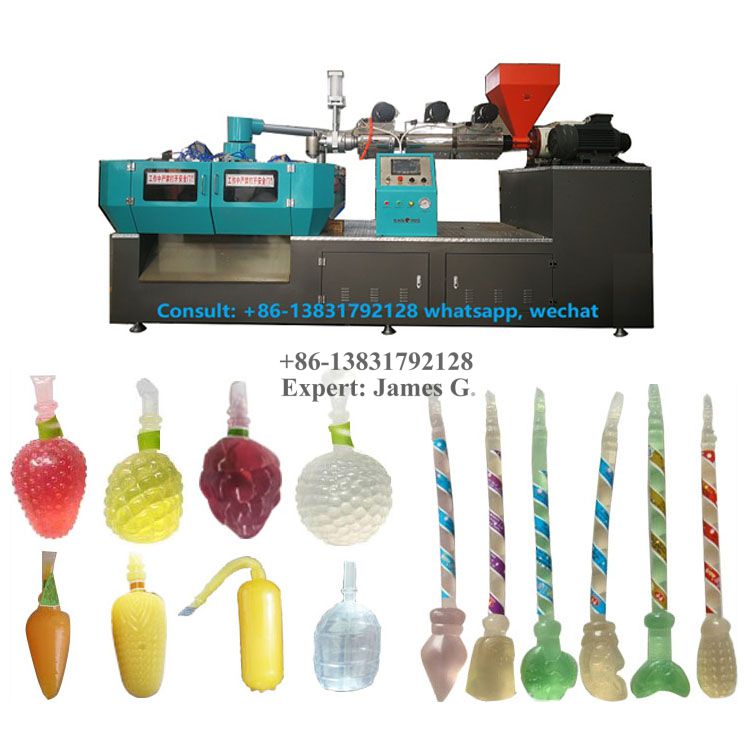

PLC type Rotary Blow Molding machine as below:
1, this type machine equipped with PLC control screen, the temperaturer controller is build in system.
Ice lolly Tube Moulds are as below:
This Part is Die Core and Cup:
Die cup and core is inside the die head, it will decide the parison diameter. Different product needs different die core and cup, so before production, please make sure the die cup and core is correct size. However, we will choose the most suitable die core and cup for your product if you place order for us.
Ice lolly Tubes Drawing:
Customer could provide us drawing or sample, we will able to produce molds based on customer needs; If customer don't have drawing or sample, we will able to provide our drawing to customer to choose. We also could modify the drawing based on customer requirement.
Customer also could put the logo on the tube body, including the arabic words of ingredients as well as changeable month and year. We could produce based on the requirements.
For 90ml ice lolly tubes, every piece about 3 grams
For 40ml ice lolly tubes, every piece about 2.2 grams
Machines' detail photo:

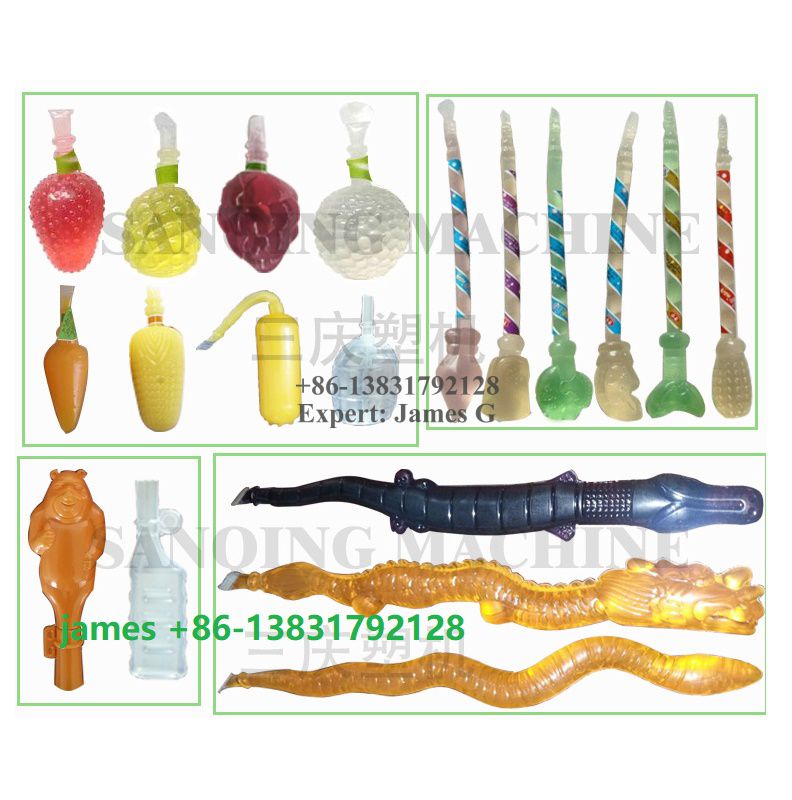

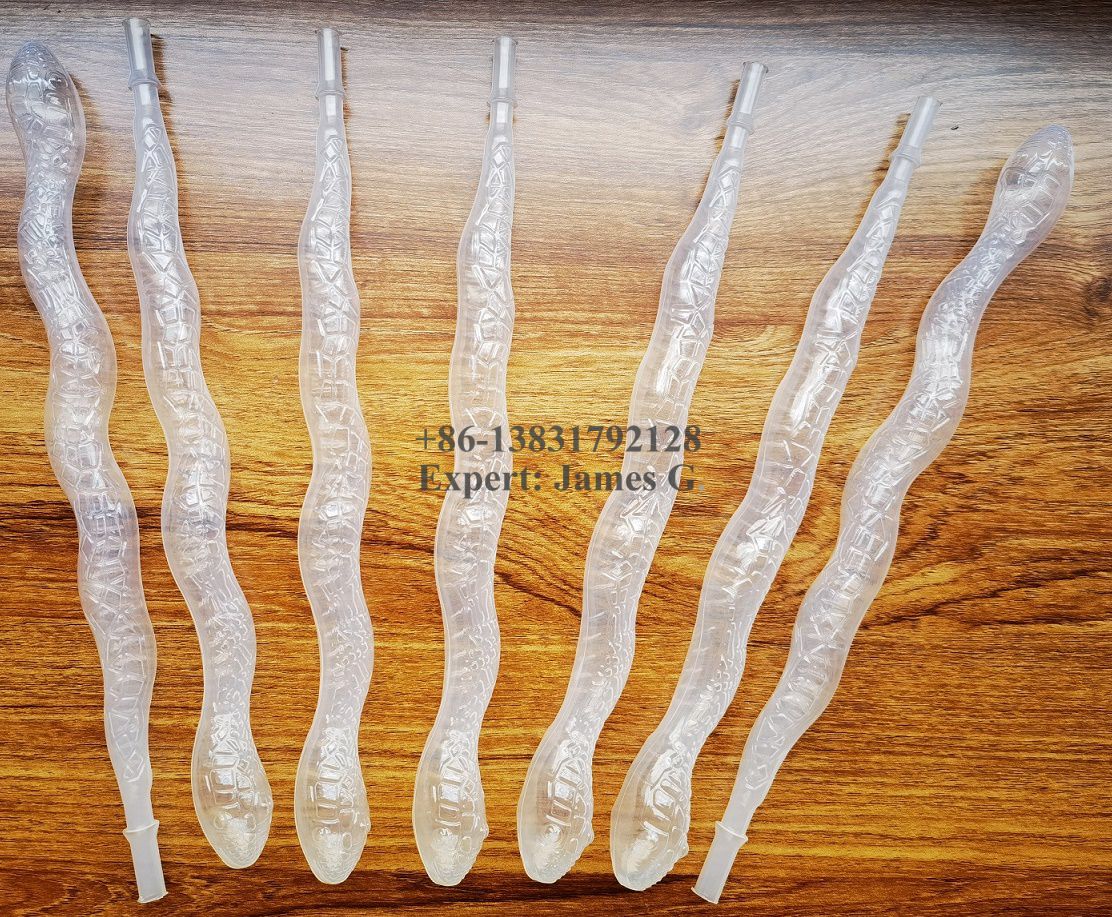

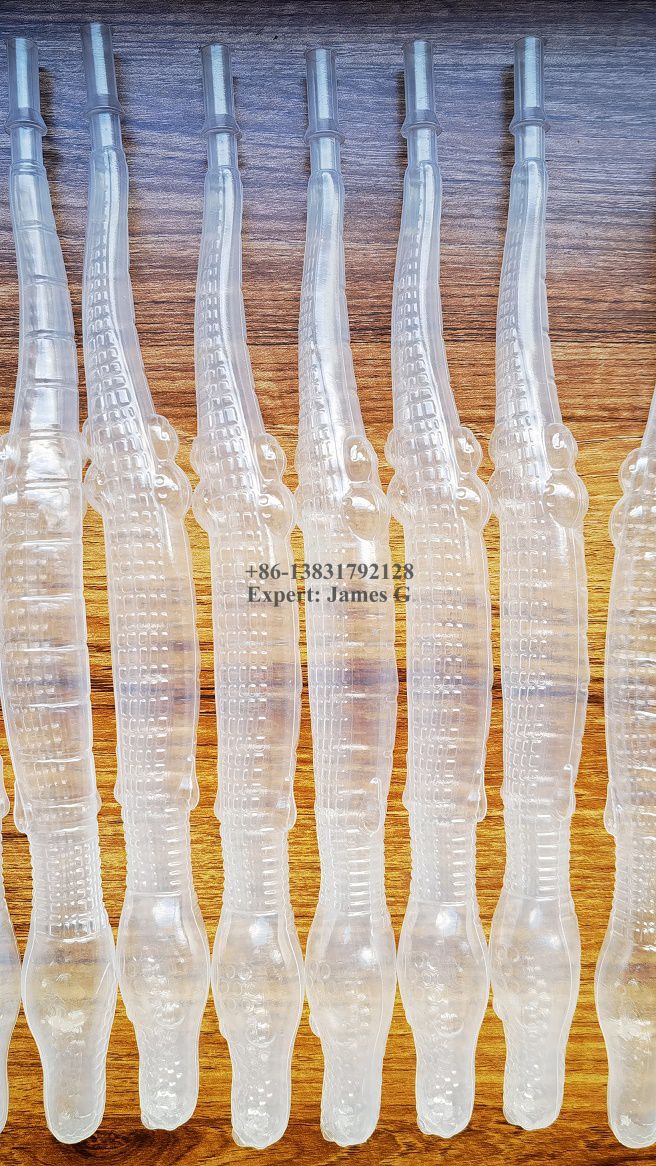

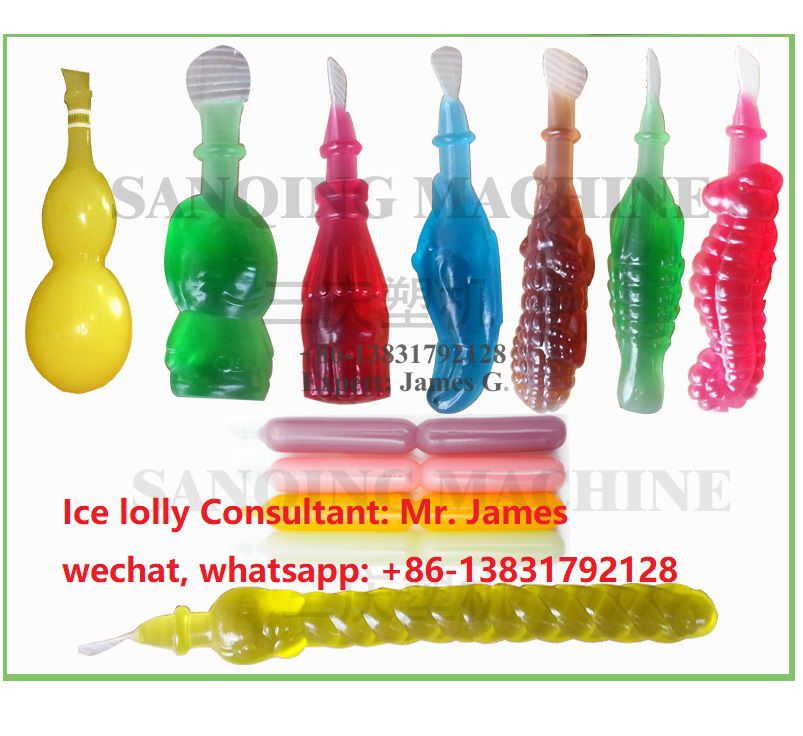

The below products could be produced:
Machine Spare Parts
Our machine is stable operation, however, customer should prepare some spare parts in stock in case need to change necessary.
Below is the spare part list(you can require this list with us):
Our company machine in customer jobsite:
our machine in Bangladesh No. 1 Company
our machine in Bangladesh No. 1 company
packing section of ice lolly company in Bangladesh
packing section of ice lolly company in Bangladesh
Our machine in Bangladesh Exhibition
Auxiliary Machines
Auxiliary Machines are necesary for blow molding machines. Only blow molding machine cannot operate, we should use the blow molding machine together with below auxiliary machines:
1, Air compressor: use to supply compressed air
2, Auto Loader: use to load virgin resins to the hopper of the extrudor
3, Chiller: use to cooling the molds, because after long time operation, the molds will become hot;
4, Crusher: for the waste material from the blow molding machine, crusher will break the waste material to be small pieces, so we could use the recycled materil to mix with virgin resins again(customer decied to reuse material depends on the actual condition).
5, Mixer: The recyled material will be mixed with virgin resins and use mixer to mix the materials averagely.
6, Molds: all the plastic product shapes depend on molds, we can produce molds for the blow molding machine, the molds could be designed by our company;
Ice lolly Tube Plant Layout
Ice lolly Production Plant Layout
