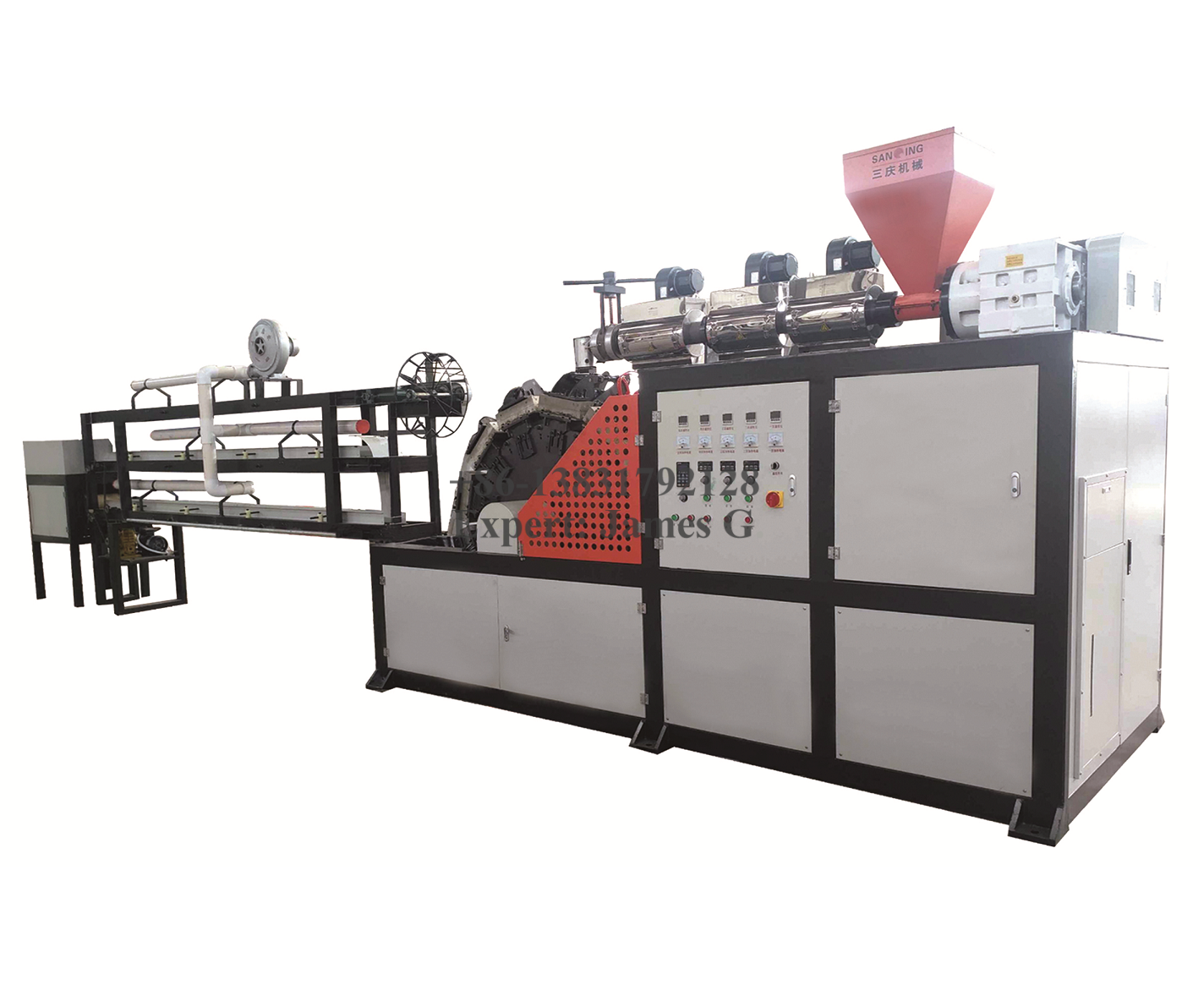

12 molds rotary ice lolly tubes, ice pop bottle, ice stick bottle blow molding machine

ice pop tube blowing machine ice lolly production line

This type of 12 molds ice lolly tubes blow molding machine is used to produce ice lolly. Every hour could produce 5500 pieces of ice lolly tubes.

12 molds rotary ice lolly tubes, ice pop bottle, ice stick bottle blow molding machine
Model

12 Molds 10 Molds

Extruder

55 65

With PLC

Yes No

Specifications select

Product Detail

12 Molds Ice lolly tubes blow molding machine


This type of ice lolly tubes blow molding machine is mainly focus on the high speed production, this 12 molds machine every hour could produce 55 pieces of ice lolly tubes. The machine speed is fast, so there is the cooling conveyor connected with the blower to cool the tubes. After the tubes go through the conveyor, the tubes will be separated auotomatically.


Video Demo:


Machine is customer Jobsite


Machine in customer jobsite



Machine testing in factory

Parameters:


Model



Parameter



12 Molds ice lolly tubes Blow molding Machine

Screw Rod Extruder Dia.(mm)

65 for 12 moulds

Rotating Motor(KW)

2.2

Product Volume(ml)

85ml

Weight(KG)

3000

Rated Power(KW)

20

Dimension(L, W, H)

6000x2700x2300

Applicable Material

PE/PP

Air Consumption (m3/min)

0.6

Air Pressure (Mpa)

0.4-0.7

Cooling water volume(m3)

1.0-1.5

Output (pieces/hour)

5000-6000

Power Supply(V)

380, 3 Phases, 50Hz

Working Plan

Under voltage rating, 24 hours running


Machine Photo:



For Ice lolly tubes production:


No comment

Product Detail

12 Molds Ice lolly tubes blow molding machine


This type of ice lolly tubes blow molding machine is mainly focus on the high speed production, this 12 molds machine every hour could produce 55 pieces of ice lolly tubes. The machine speed is fast, so there is the cooling conveyor connected with the blower to cool the tubes. After the tubes go through the conveyor, the tubes will be separated auotomatically.


Video Demo:


Machine is customer Jobsite


Machine in customer jobsite



Machine testing in factory

Parameters:


Model



Parameter



12 Molds ice lolly tubes Blow molding Machine

Screw Rod Extruder Dia.(mm)

65 for 12 moulds

Rotating Motor(KW)

2.2

Product Volume(ml)

85ml

Weight(KG)

3000

Rated Power(KW)

20

Dimension(L, W, H)

6000x2700x2300

Applicable Material

PE/PP

Air Consumption (m3/min)

0.6

Air Pressure (Mpa)

0.4-0.7

Cooling water volume(m3)

1.0-1.5

Output (pieces/hour)

5000-6000

Power Supply(V)

380, 3 Phases, 50Hz

Working Plan

Under voltage rating, 24 hours running


Machine Photo:



For Ice lolly tubes production:


12 molds rotary ice lolly tubes, ice pop bottle, ice stick bottle blow molding machine
This type of 12 molds ice lolly tubes blow molding machine is used to produce ice lolly. Every hour could produce 5500 pieces of ice lolly tubes.
