wet wipe canister bottle blowing machine

hdpe bottle blowing machine
wet wipe canister bottle blowing machine
Model

SQ-11

Specifications select

Product Detail

        wet wipe canister bottle blowing machine


              This type of blow molding machine is able to produce yogurt/milk bottles, hand sanitizer bottles or alcohol bottles as well as sea ball products. It could produce 1 to 4 cavities bottles such as 500ml.  This type of machine could deflash bottles automatically, so customer could get final product directly.


              This type of machine is full automatic and economical machine, which is famous of its excellent performance and reasonable price. Take example of 500ml bottles, if makes 4 cavities per molds, every hour could reach 1500 pieces per hour.


              This machine equiped with hydraulic mold process, the close molds process is enough power, the end product could be similar with customer samples.


Item

Parameters

Max. Bottle Volume

3 Liter

Max. Product Diameter

15 CM

Production Capacity

200-300 PCS/HR single

cavity

Allowable Mold Width

230 mm

Allowable Mold Thickness

110-230 mm

Air Consumption

0.6 m3/Min 8KG

Weight

3 Ton

Dimension

3200x2000x2000 mm

Raw material

HDPE PP LDPE

Control

PLC touch screen

Screw Diameter

65mm

No. of Die Heads

3

Screw Length/Diameter

25:1

Motor Power

11 KW

Heating Power

9 KW

Plasticizing Capacity

50 KG/HR

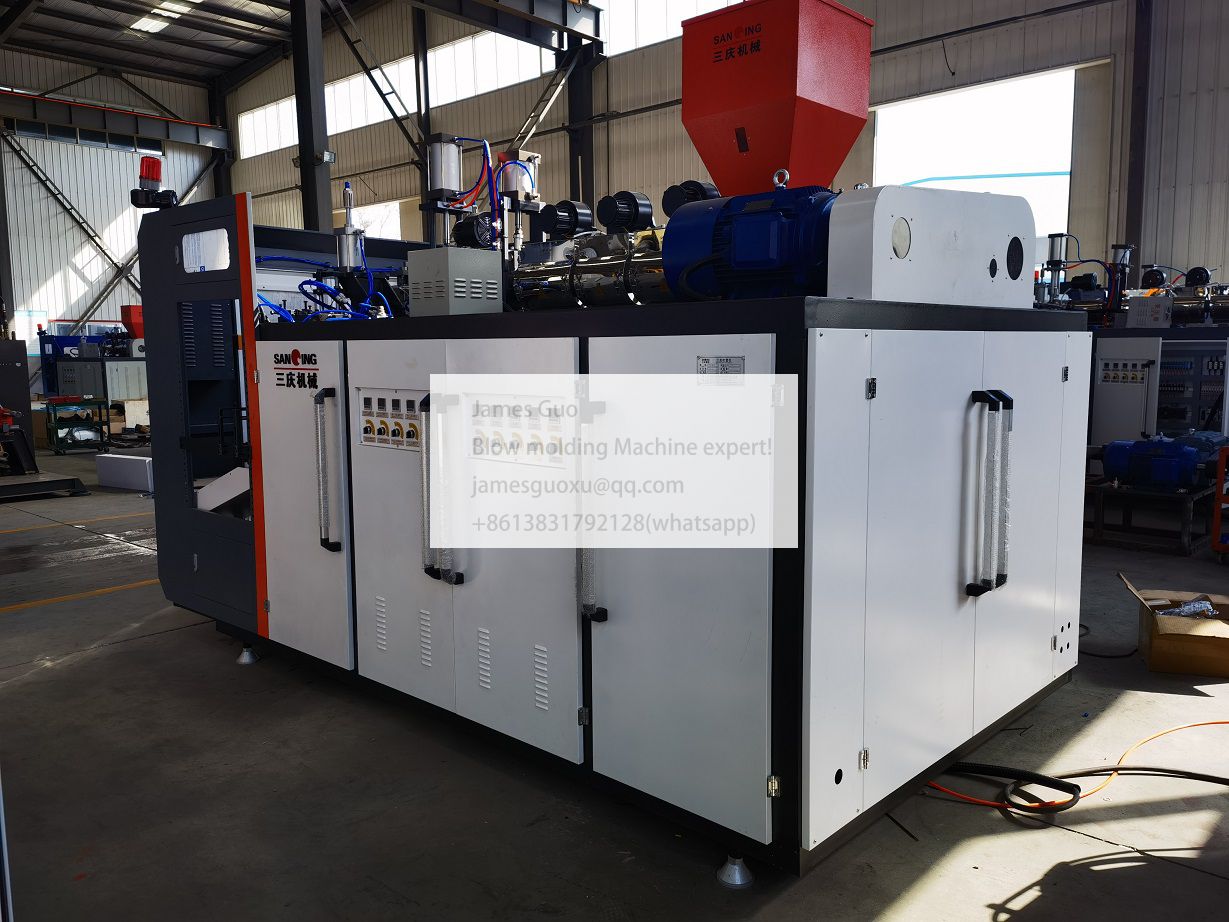

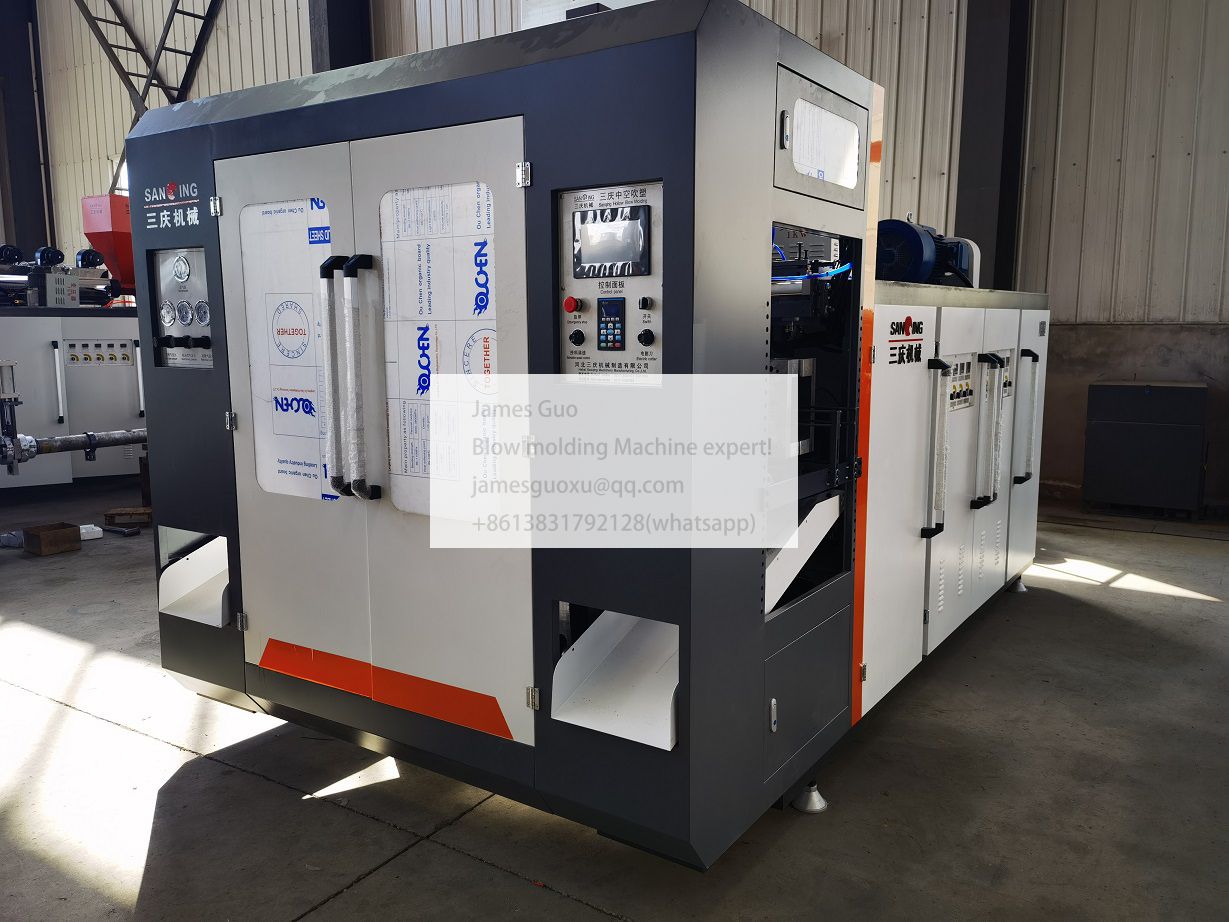

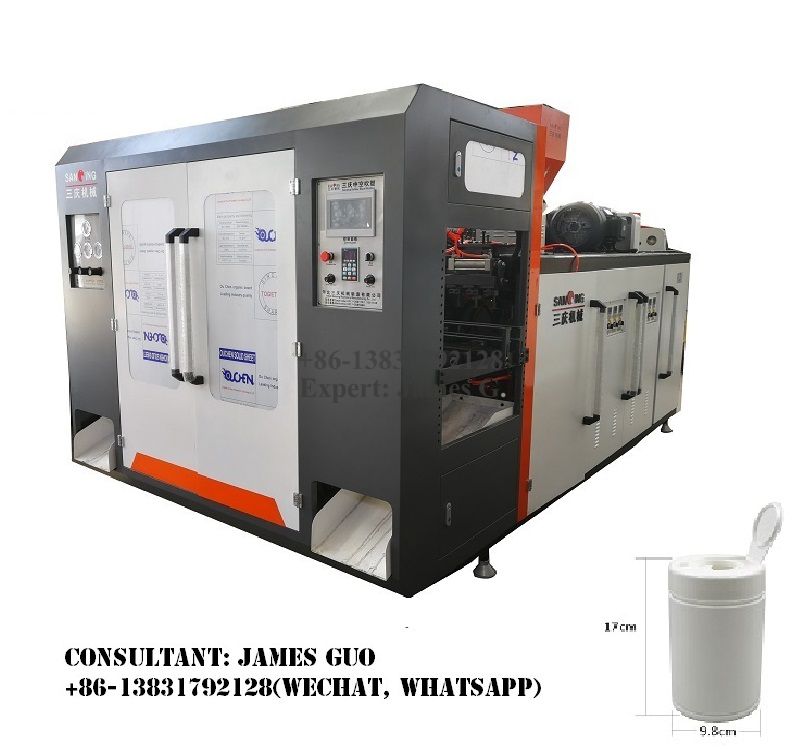

Front view of our 3L blow molding machine (above)

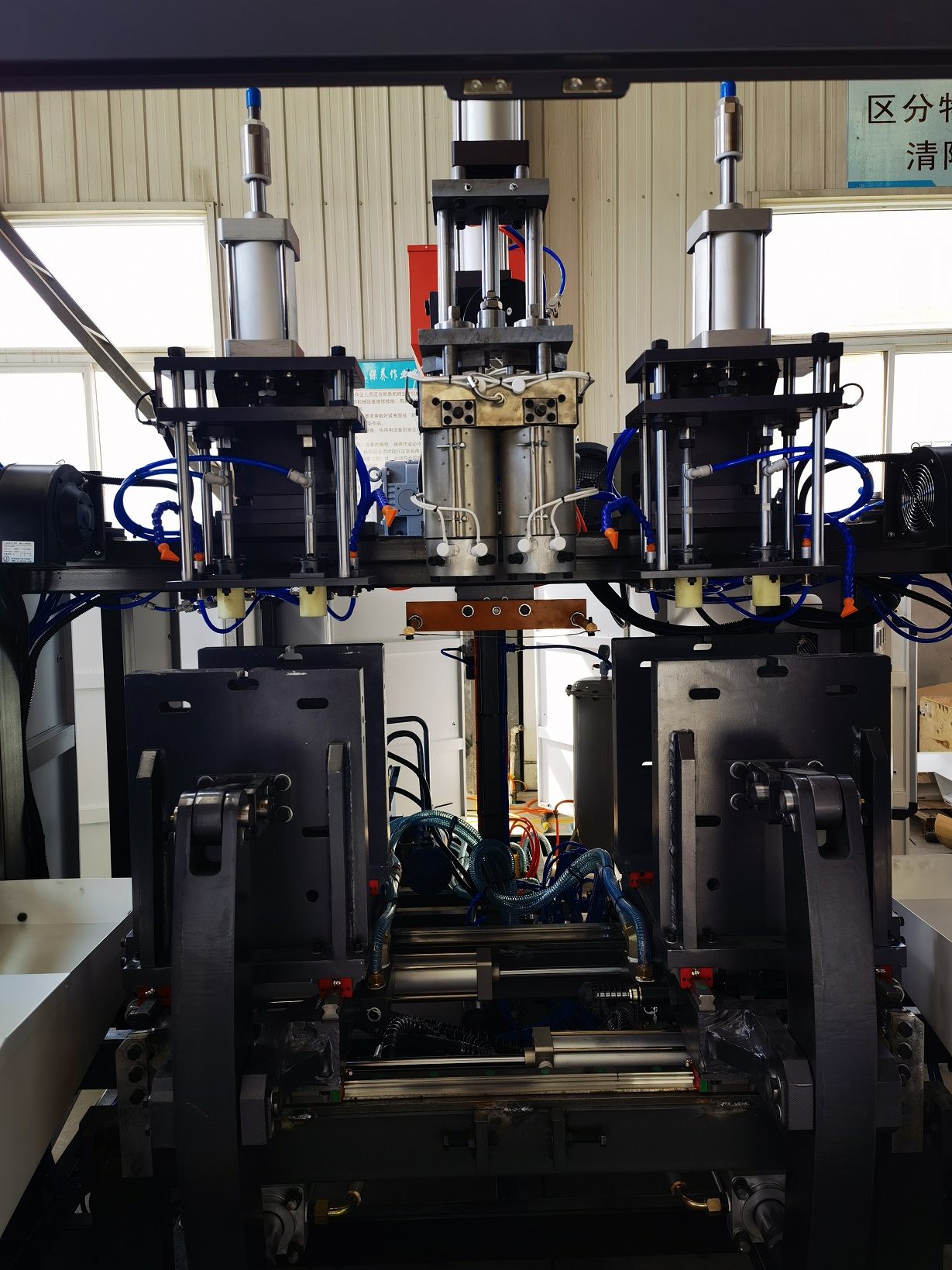

Four Die Heads (above)




Double Die Heads(above)

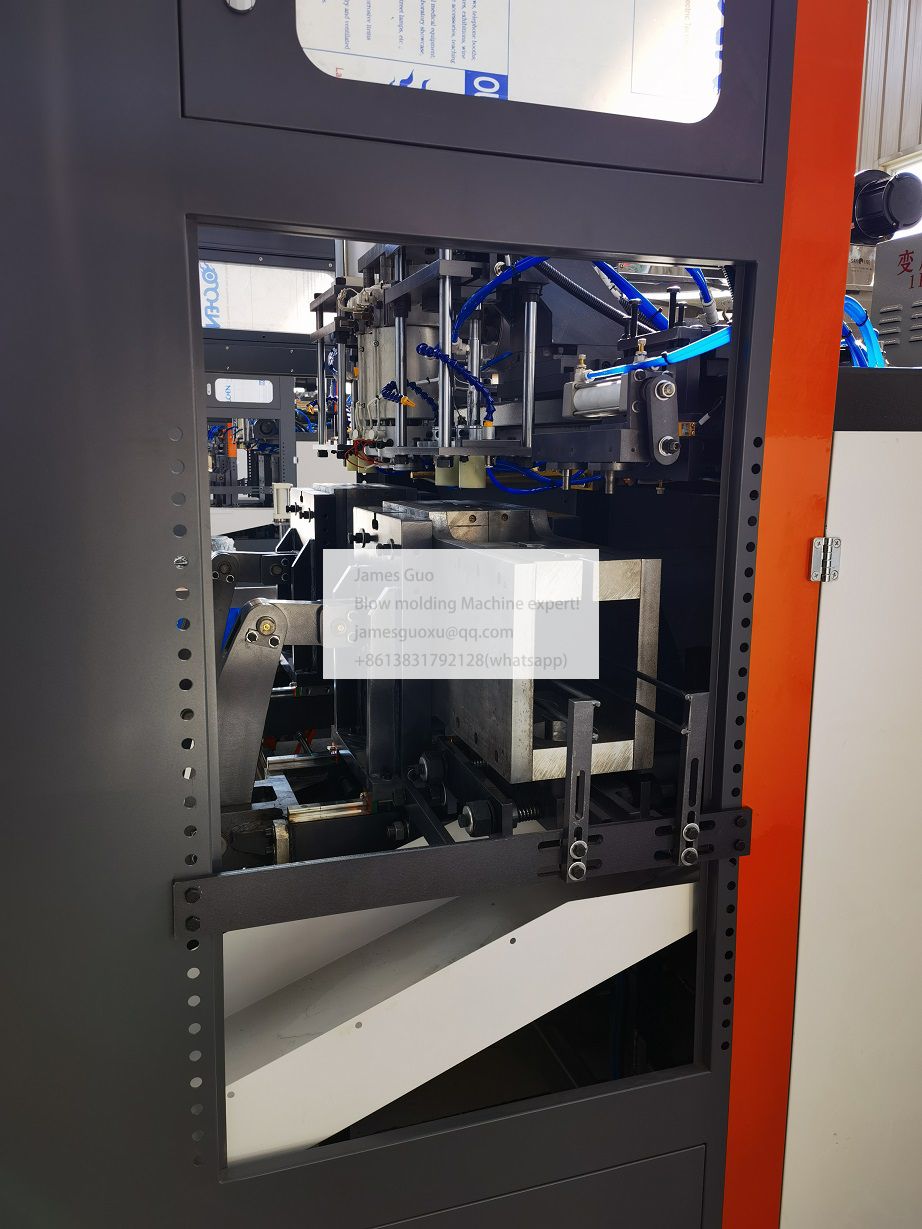

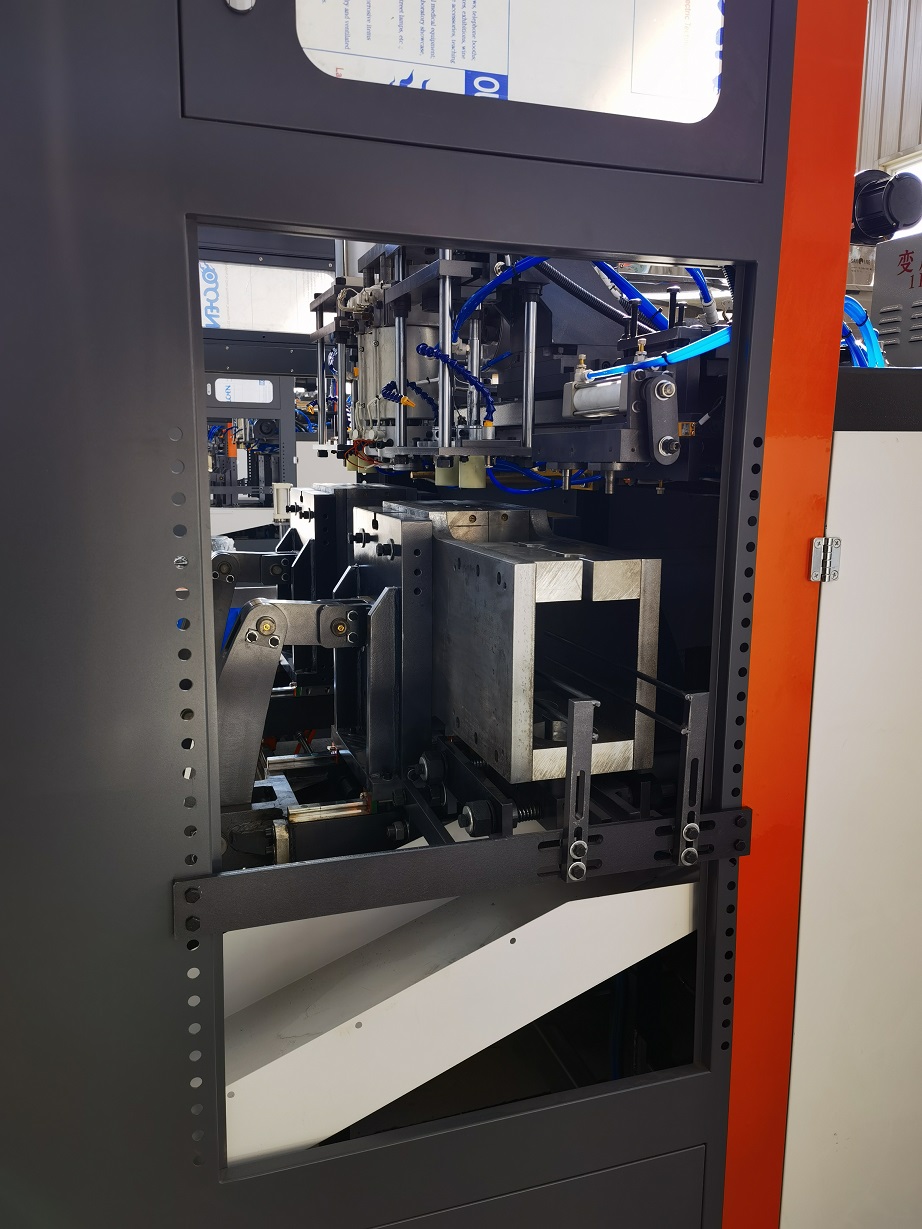

Deflashing Unit (above)

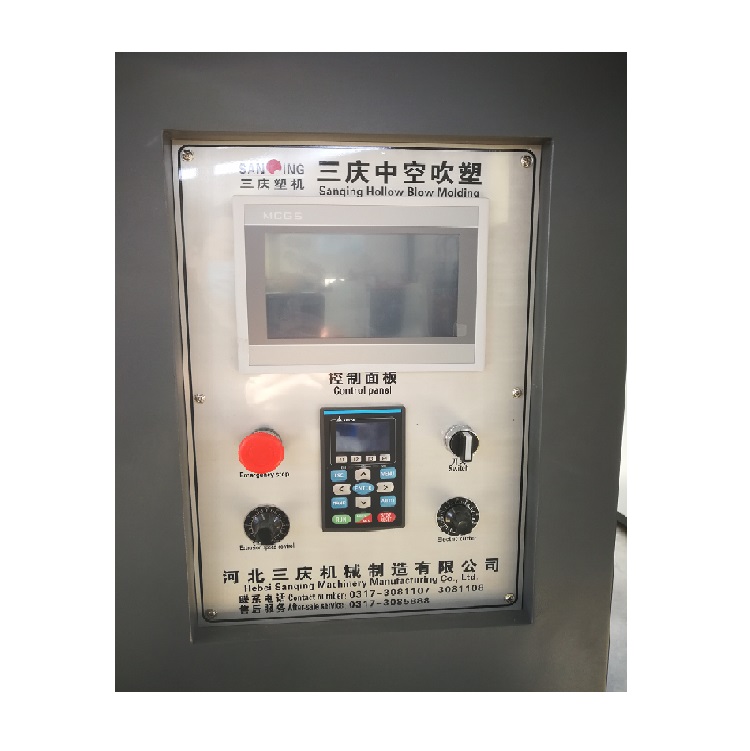

Control Monitor (Above)

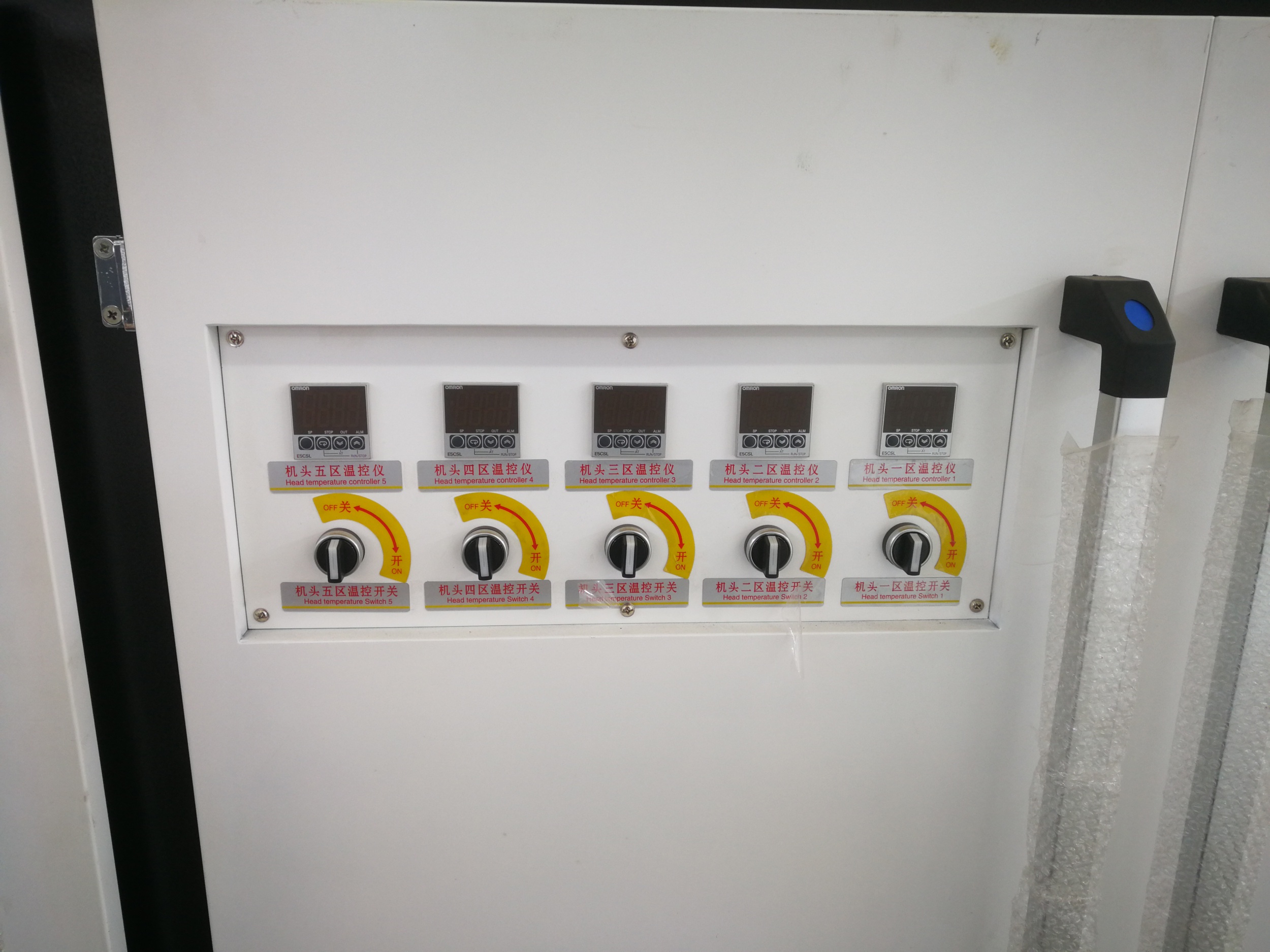

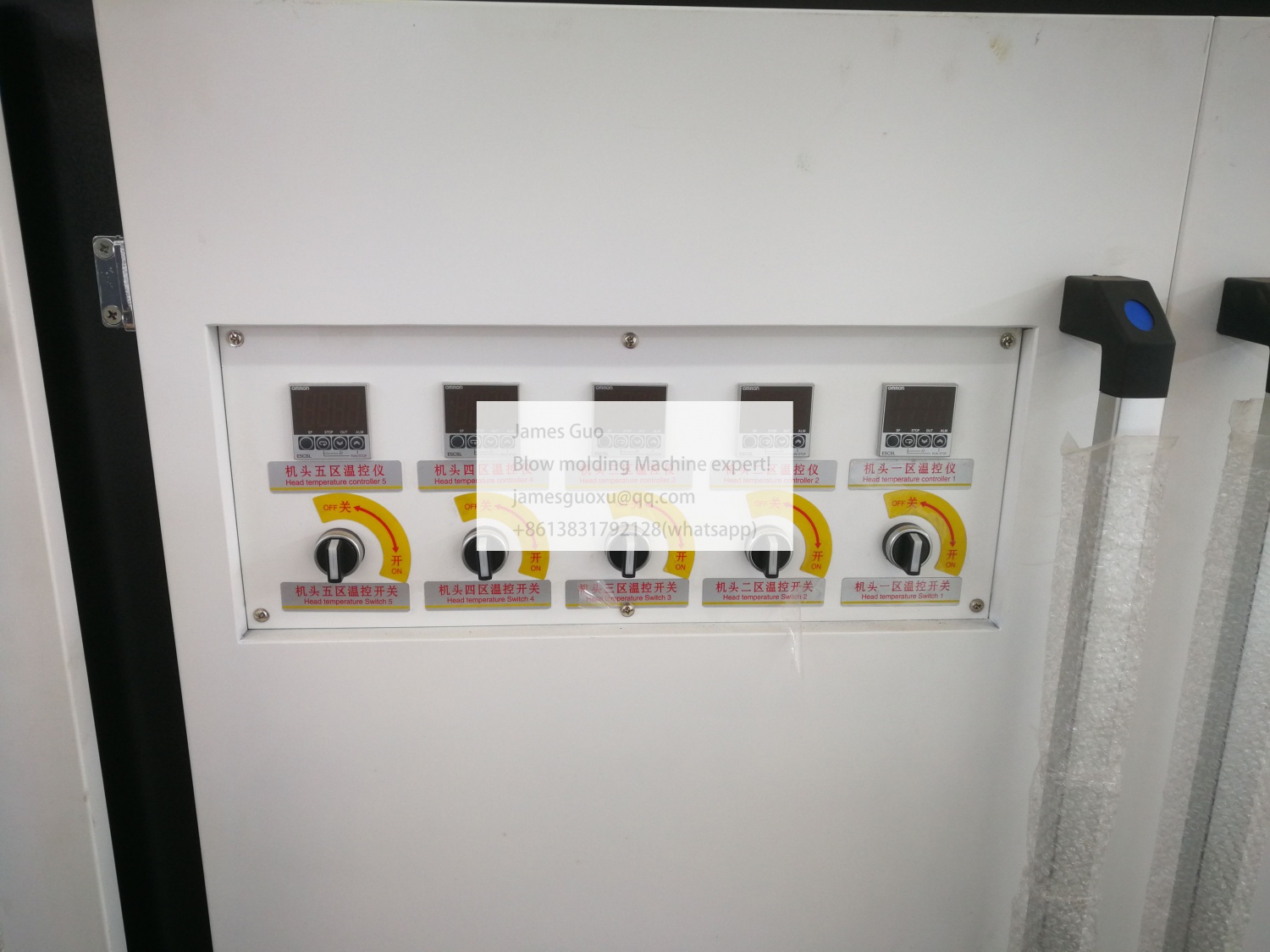

Temperature Controller Unit

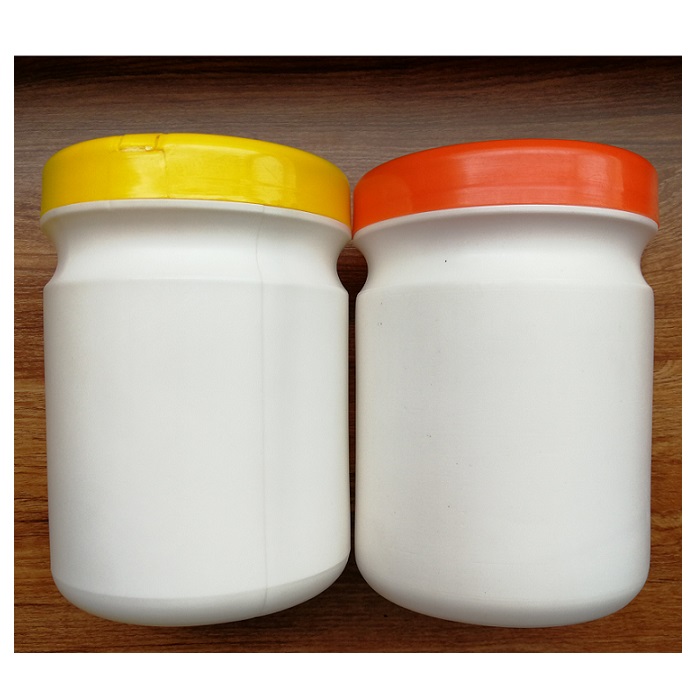

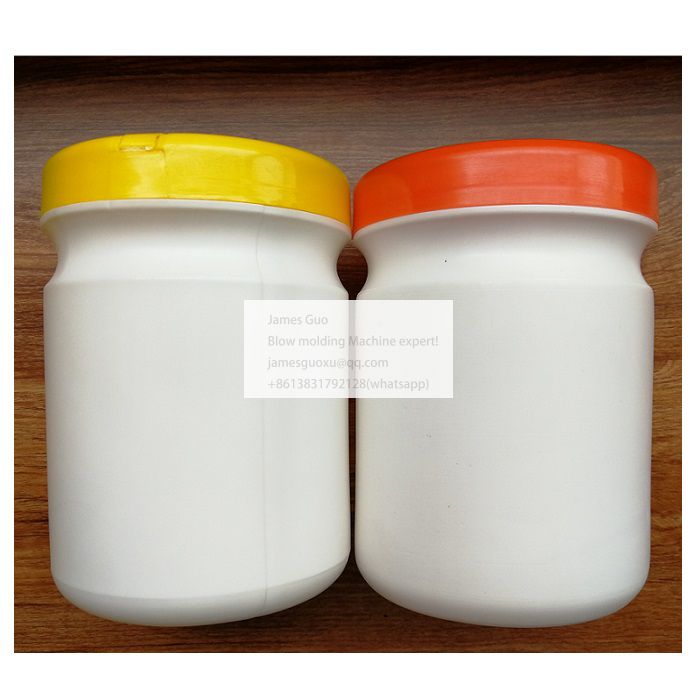

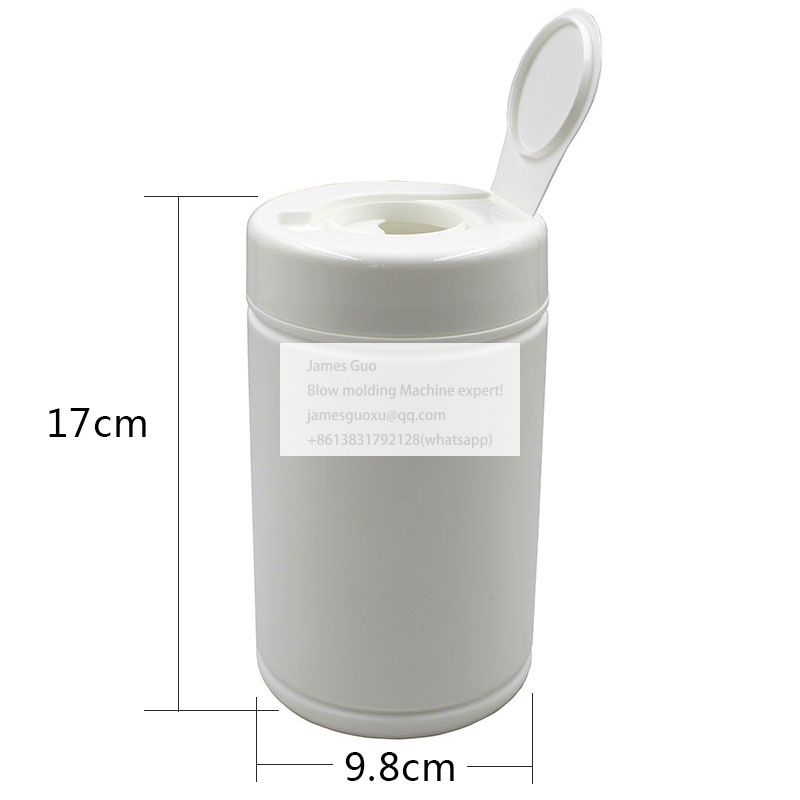

Products can be made by this type machine:





Video are here as below:



Video Produce Coconut Milk Bottle


Video of Produce 500ml Milk Bottle



Video of Produce 370ml milk bottles



Video of produce baby wipe buckets



Related News:

3L Blow molding machine is hot in production. 2020/10/28
