disinfectant bottle blowing machine

shooting neck bottles hdpe bottle blowing machine

disinfectant bottle blowing machine is specially designed for bottles from 20ml to 3 Liters. Customer could choose multiple cavities with die heads.

disinfectant bottle blowing machine
Model

SQPY-05

Specifications select

Product Detail

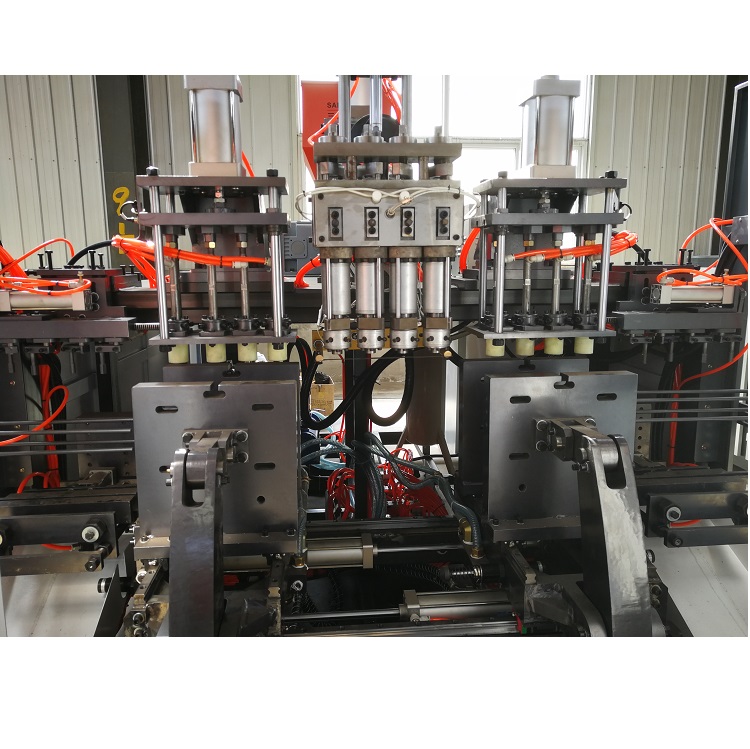

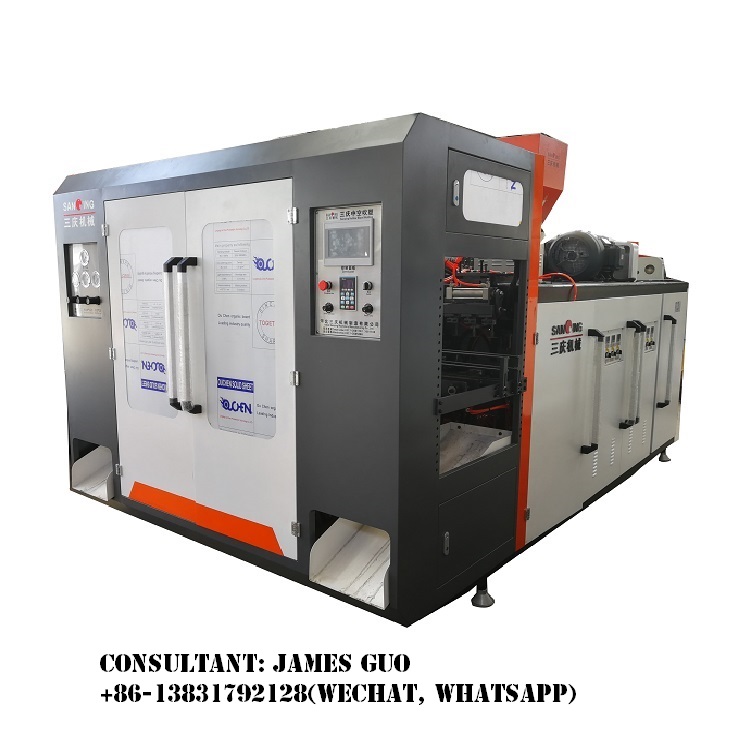

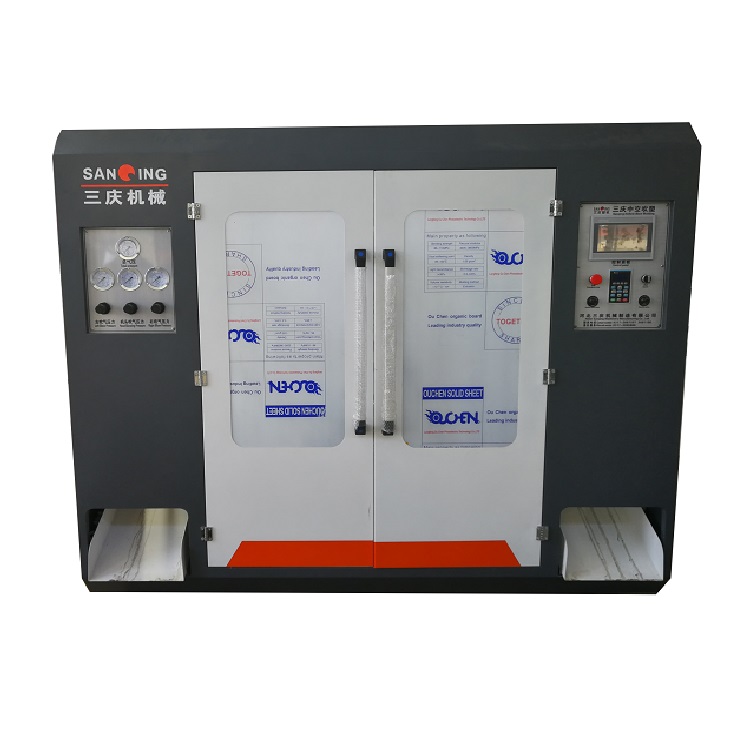

        HDPE hand sanitizer/alcohol bottle blowing machine

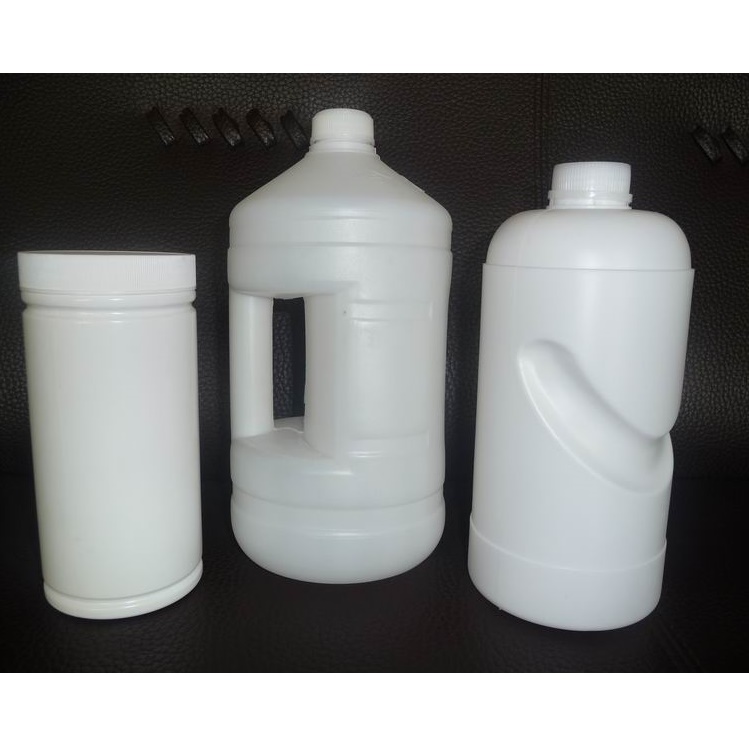

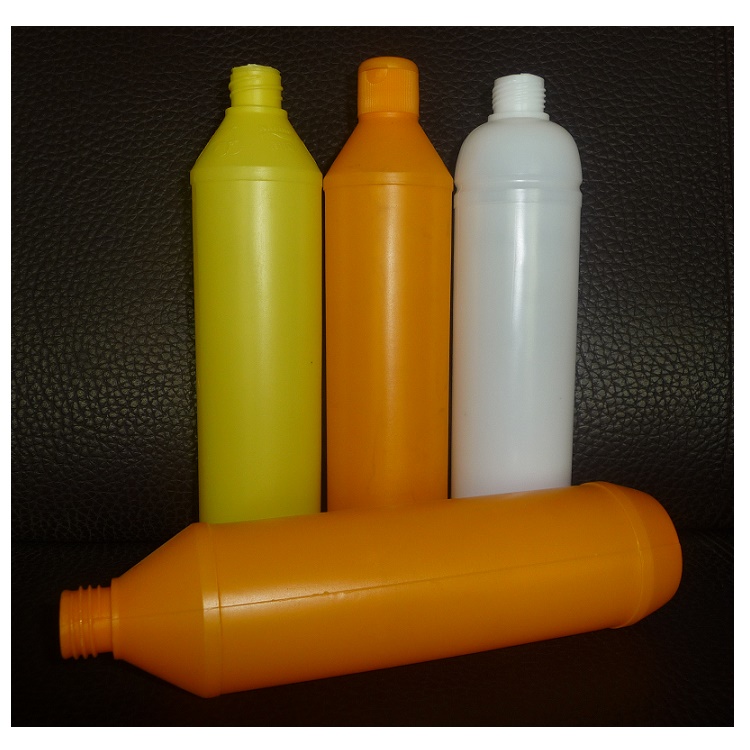

              This type of blow molding machine is able to produce hand sanitizer bottles, disinfectant bottles or alcohol bottles. It could produce 1 to 3 cavities bottles such as 1 liter.  This type of machine could deflash bottles automatically, so customer could get final product directly.


Parameters:


Item

Parameters

Max. Bottle Volume

3 Liter

Max. Product Diameter

15 CM

Production Capacity

200-300 PCS/HR

Allowable Mold Width

230 mm

Allowable Mold Thickness

110-230 mm

Air Consumption

0.6 m3/Min 8KG

Weight

3 Ton

Dimension

3200x2000x2000 mm

Raw material

HDPE PP LDPE

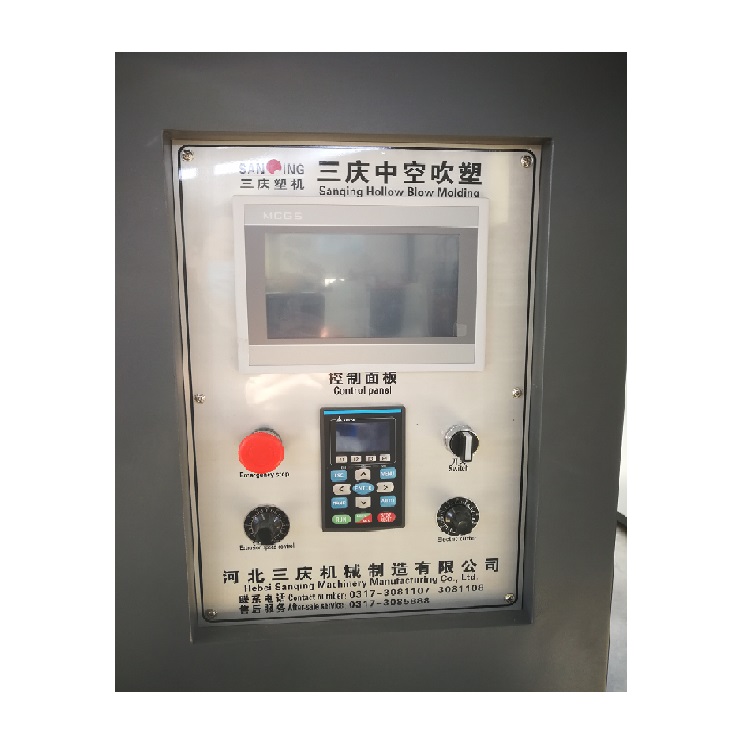

Control

PLC touch screen

Screw Diameter

65mm

No. of Die Heads

3

Screw Length/Diameter

25:1

Motor Power

11 KW

Heating Power

9 KW

Plasticizing Capacity

50 KG/HR







Video is here as below:



No comment

Product Detail

        HDPE hand sanitizer/alcohol bottle blowing machine


              This type of blow molding machine is able to produce hand sanitizer bottles, disinfectant bottles or alcohol bottles. It could produce 1 to 3 cavities bottles such as 1 liter.  This type of machine could deflash bottles automatically, so customer could get final product directly.


Parameters:


Item

Parameters

Max. Bottle Volume

3 Liter

Max. Product Diameter

15 CM

Production Capacity

200-300 PCS/HR

Allowable Mold Width

230 mm

Allowable Mold Thickness

110-230 mm

Air Consumption

0.6 m3/Min 8KG

Weight

3 Ton

Dimension

3200x2000x2000 mm

Raw material

HDPE PP LDPE

Control

PLC touch screen

Screw Diameter

65mm

No. of Die Heads

3

Screw Length/Diameter

25:1

Motor Power

11 KW

Heating Power

9 KW

Plasticizing Capacity

50 KG/HR







Video is here as below:



disinfectant bottle blowing machine
disinfectant bottle blowing machine is specially designed for bottles from 20ml to 3 Liters. Customer could choose multiple cavities with die heads.
