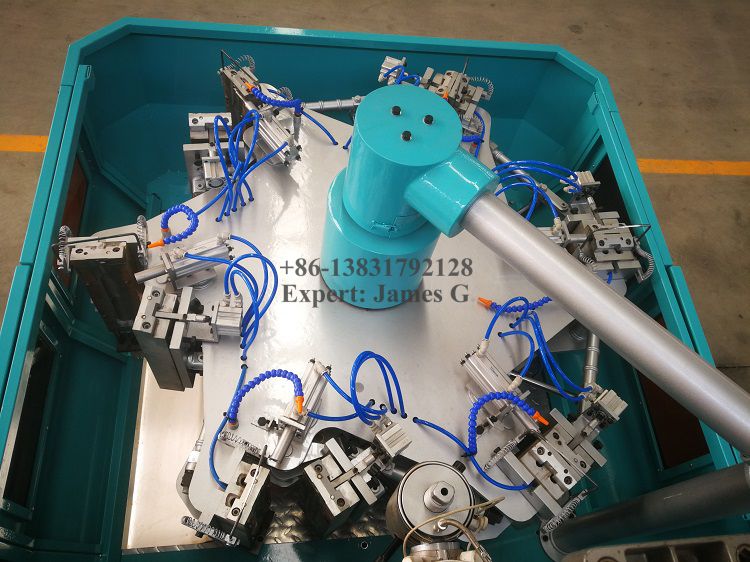

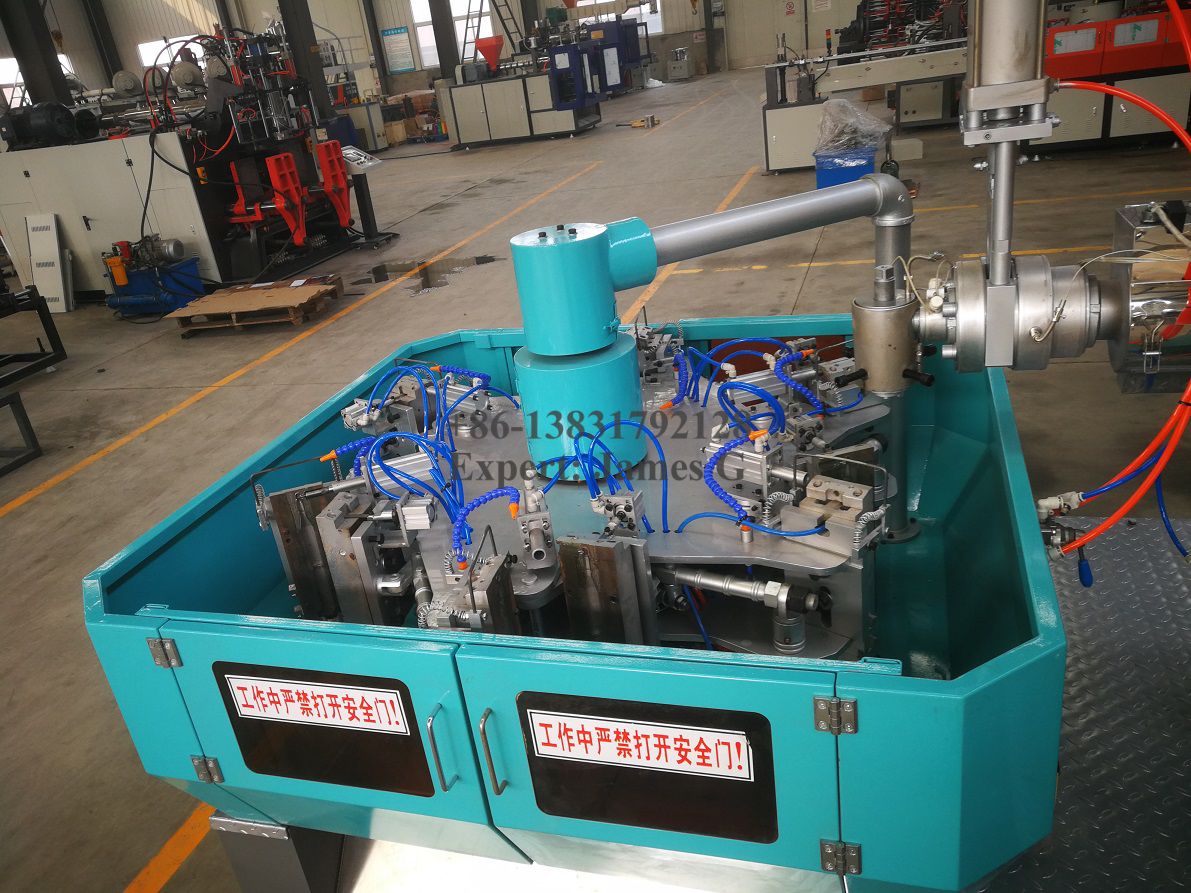

Jelly tubes/ice lolly pop tubes blow molding machine

This type of rotary blow molding machine suitable to produce ice lolly tubes, jelly tubes. The speed of prouction is very fast. Customer can get about 5000 pieces per day.
Rotary Blow molding machine could produce bottles with LDPE, HDPE, PP materials, the bottle thickness could be controlled by our machine.
Our Rotational blow molding machine also could produce the milk、yogurt、juice bottles also;
Max. Bottle Containment | 800ml |
Productive capacity | 2500-3000 PCS/HR for Lolly tube |
Allowed Mould width | 125mm |
Allowed Mould Thickness | 118mm |
Blowing Air pressure | 0.4-0.7Mpa |
Rated Power | 15kw |
Extruder Screw Diameter | 55mm |
Plasticizing Capacity | 40KG/Hour |
Size of Main Frame(L.W.H) | 3300×1200×1500mm |
Weight | 1500kg |
Video Demo:
Below is ice lolly tube blow molding machine video from youtube.com
Below is litchi bottle 8 stations rotary blow molding machine demo:
Vieo Demo for machines operation in client jobsite:
Our company offer three types of rotary blow molding machine:
- connected type: the blower and extruder is connected to be a whole machine;
- separate type: the blower and extruder is separate to be two separate machines;
- PLC type: the blower and extruder is conneceted and controlled by PLC touch screen.

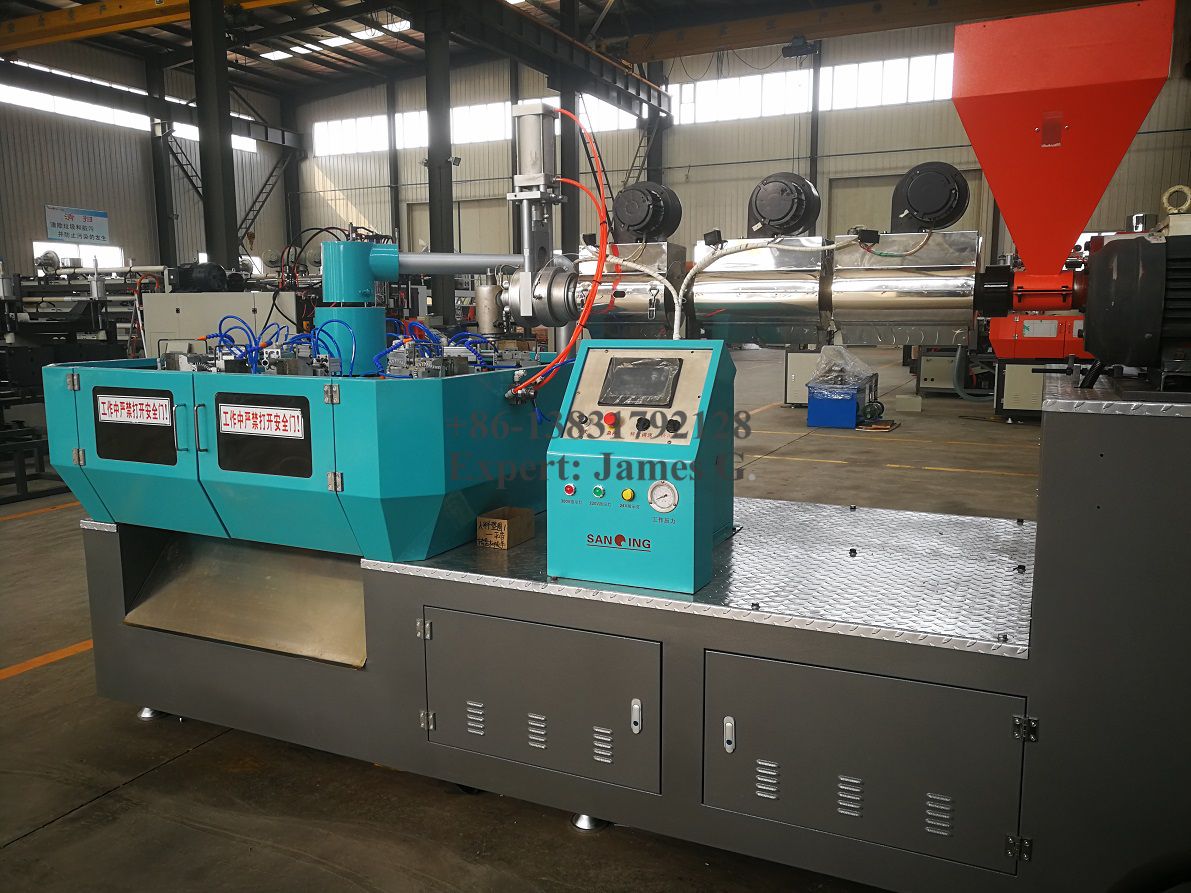

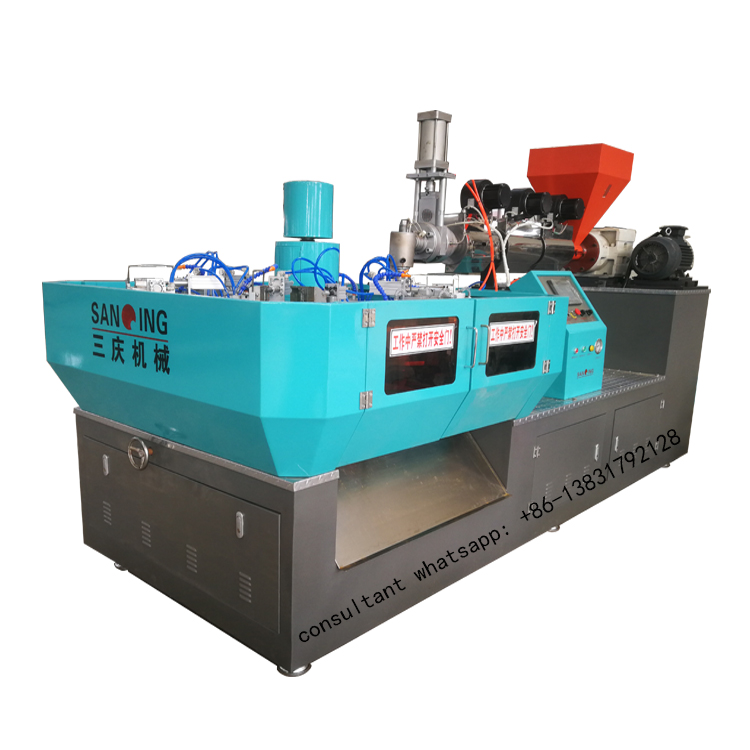

Connected type Rotary Blow Molding Machine as below:

Separate Type Rotary Blow Molding Machine as below(Extruder and Blower Separately):

PLC type Rotary Blow Molding machine as below:
1, this type machine equipped with PLC control screen, the temperaturer controller is build in system. This type machine equipped with pneumatic filter. The operation is more stable.

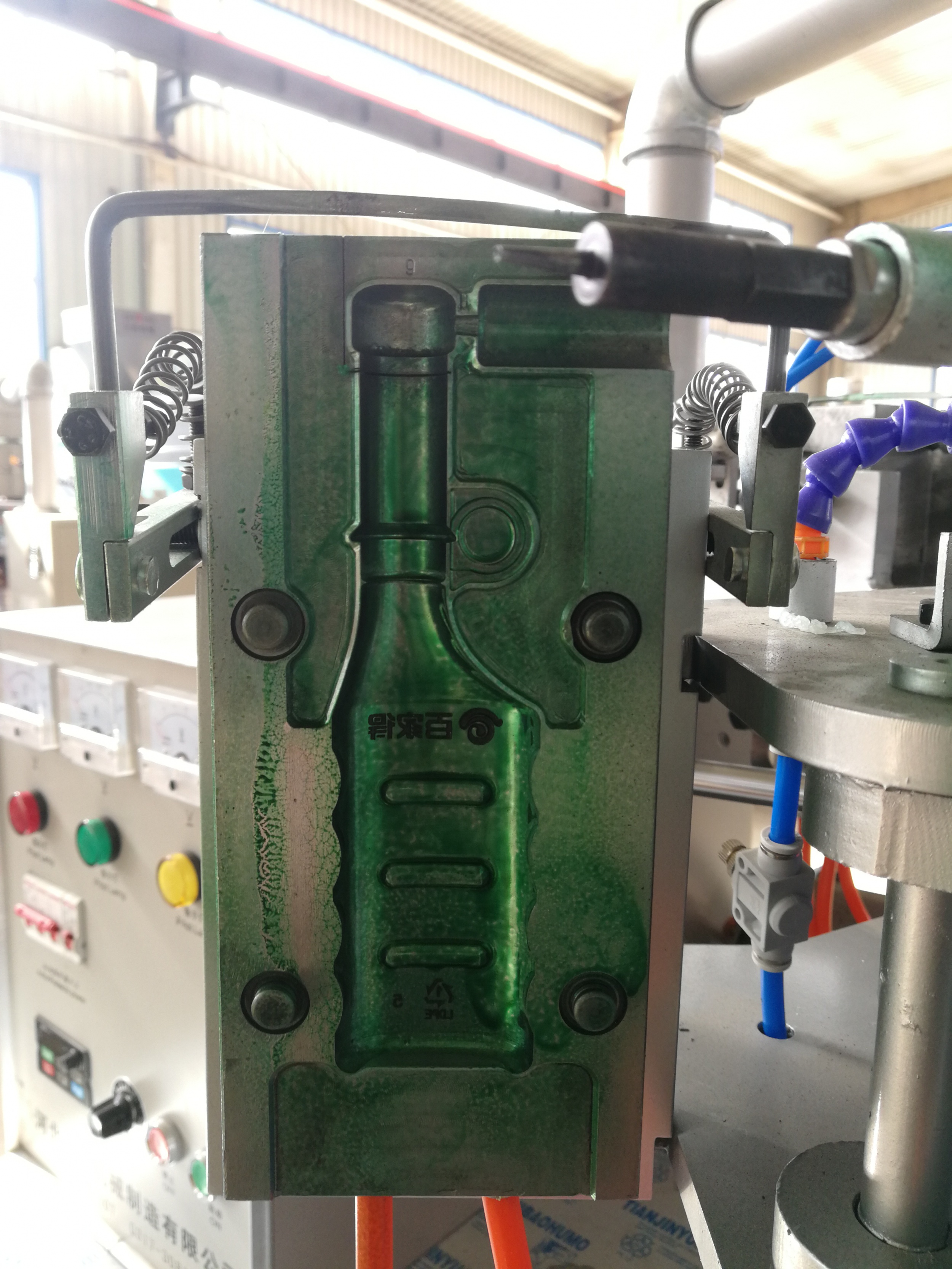

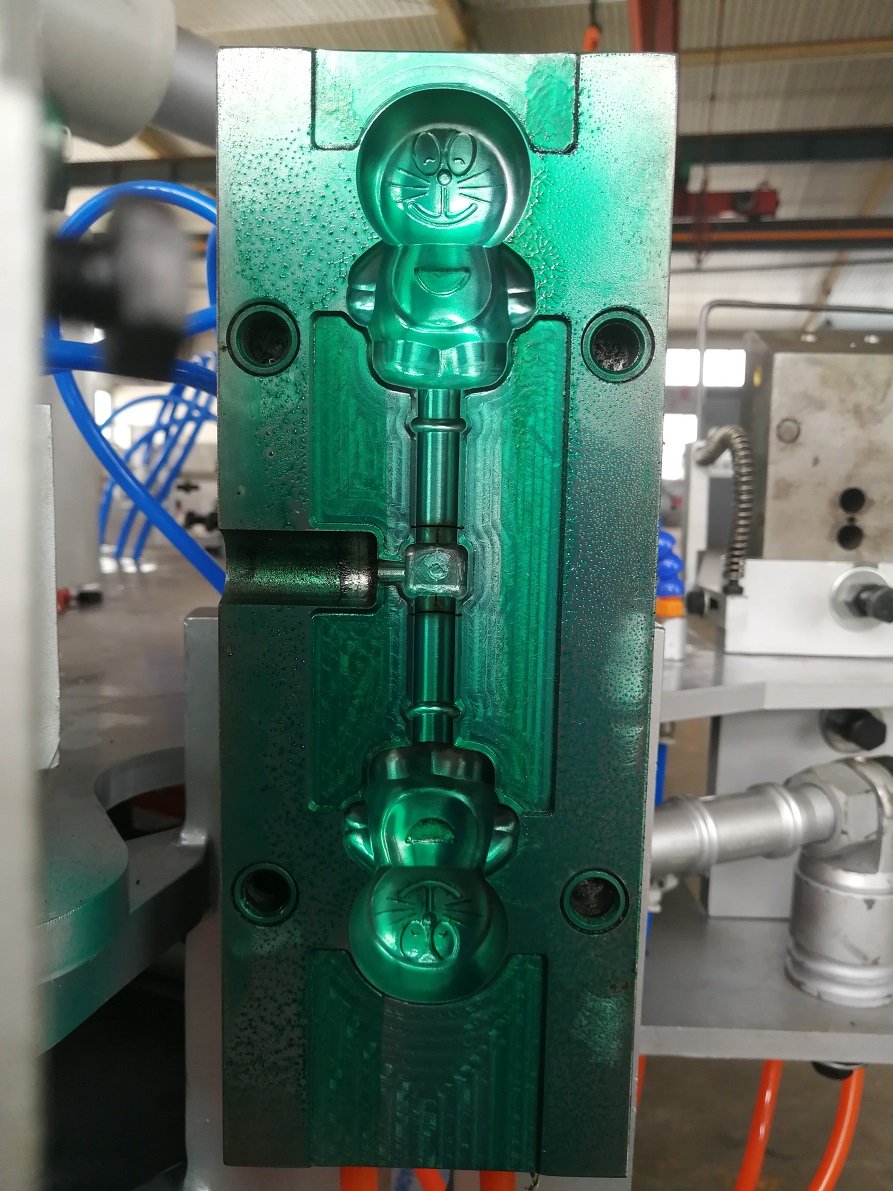

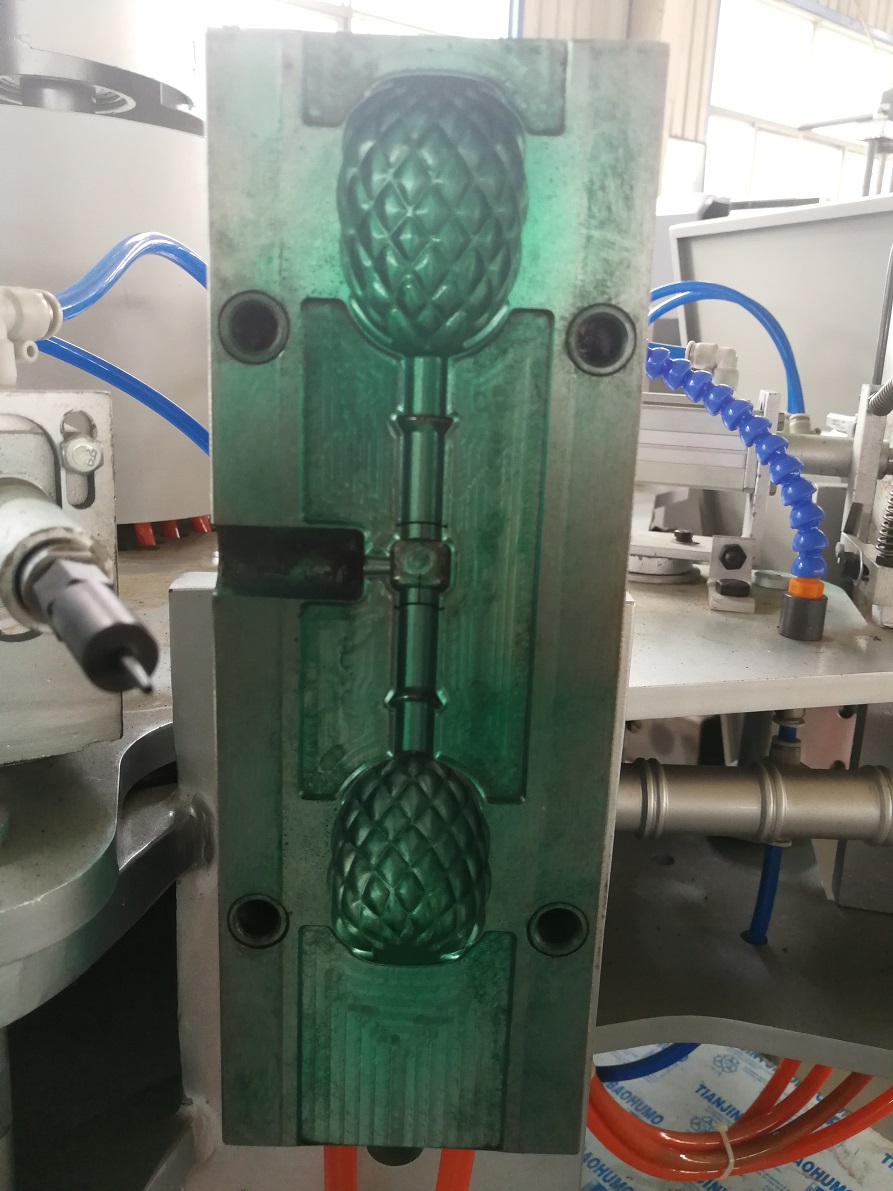

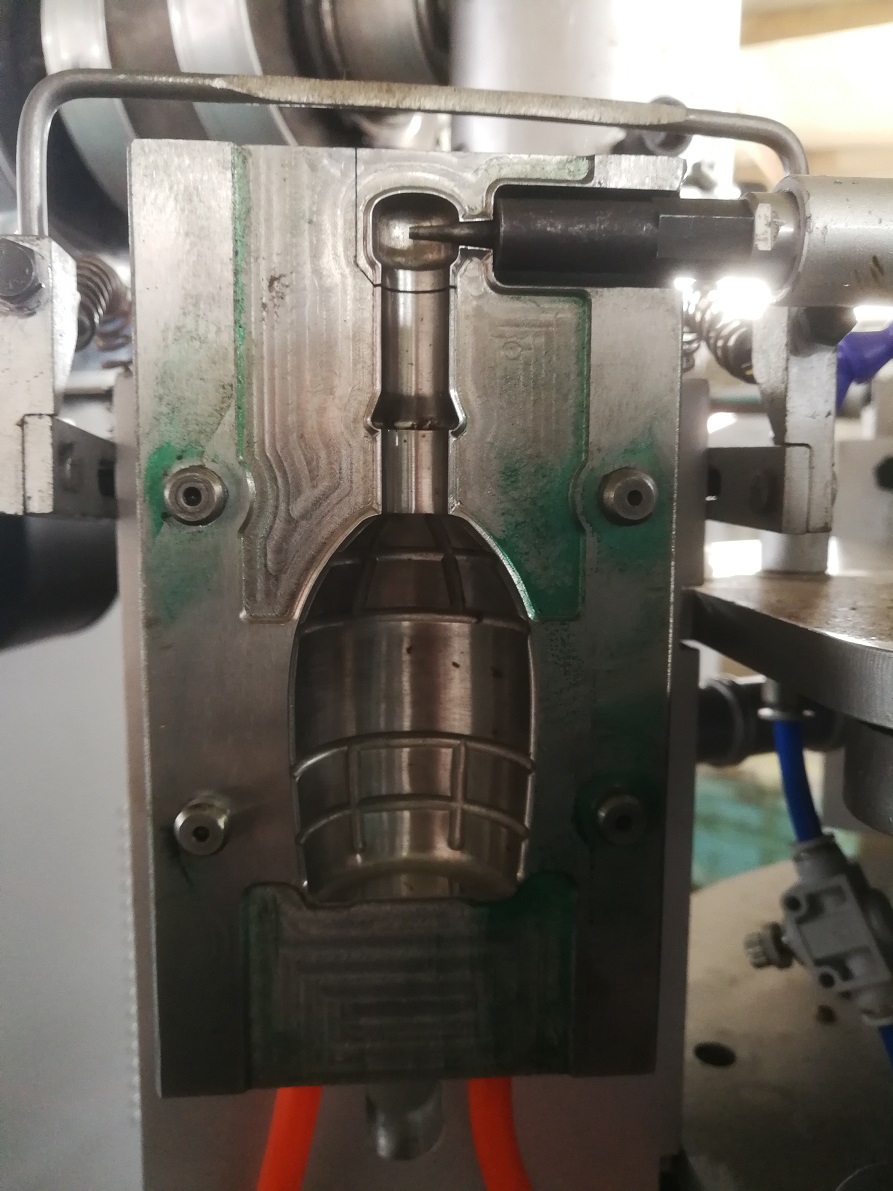

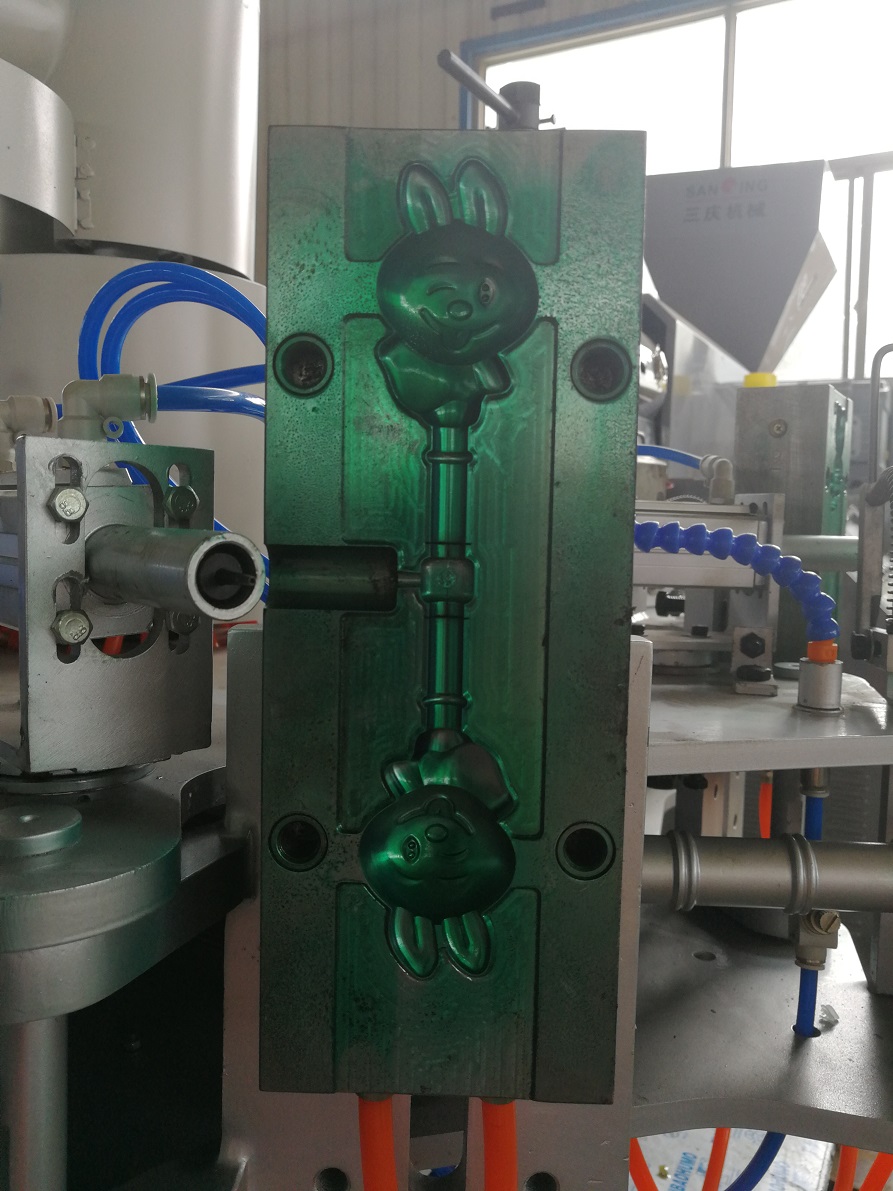

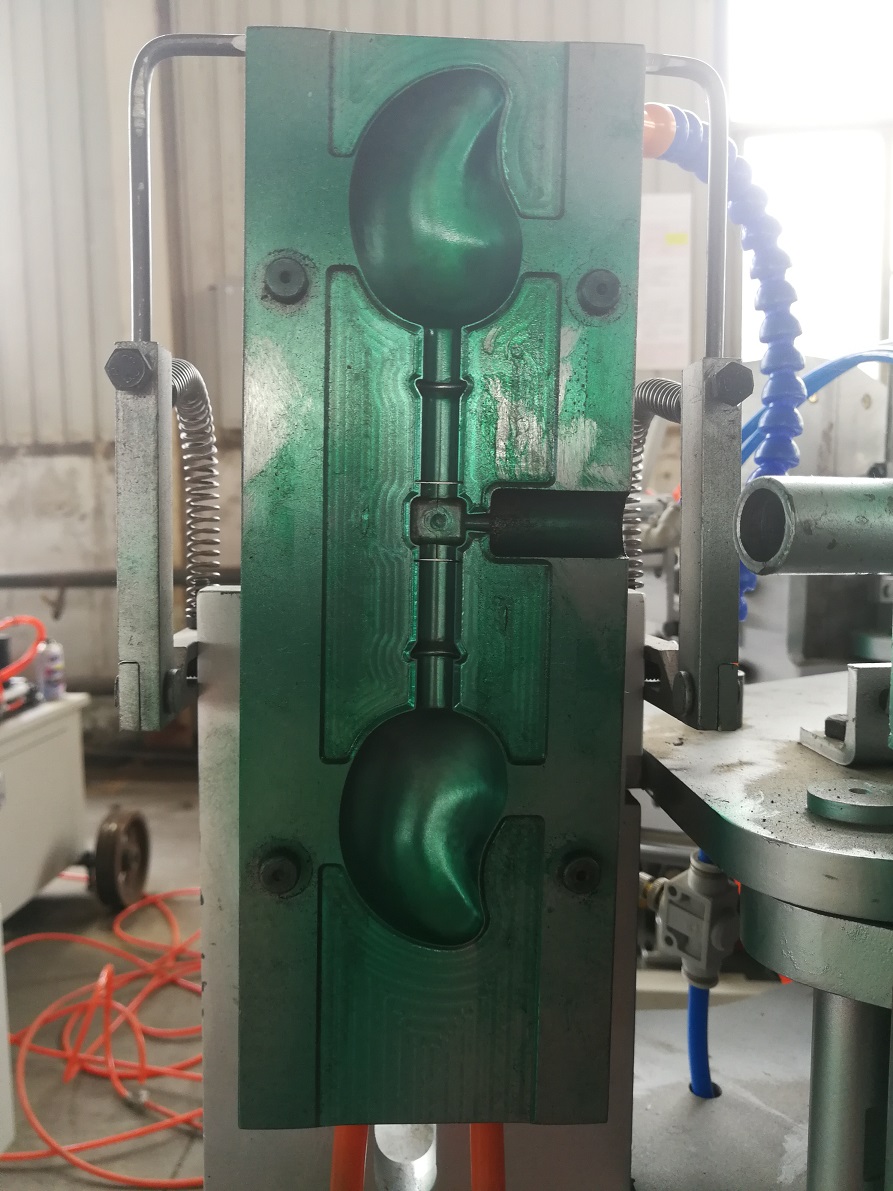

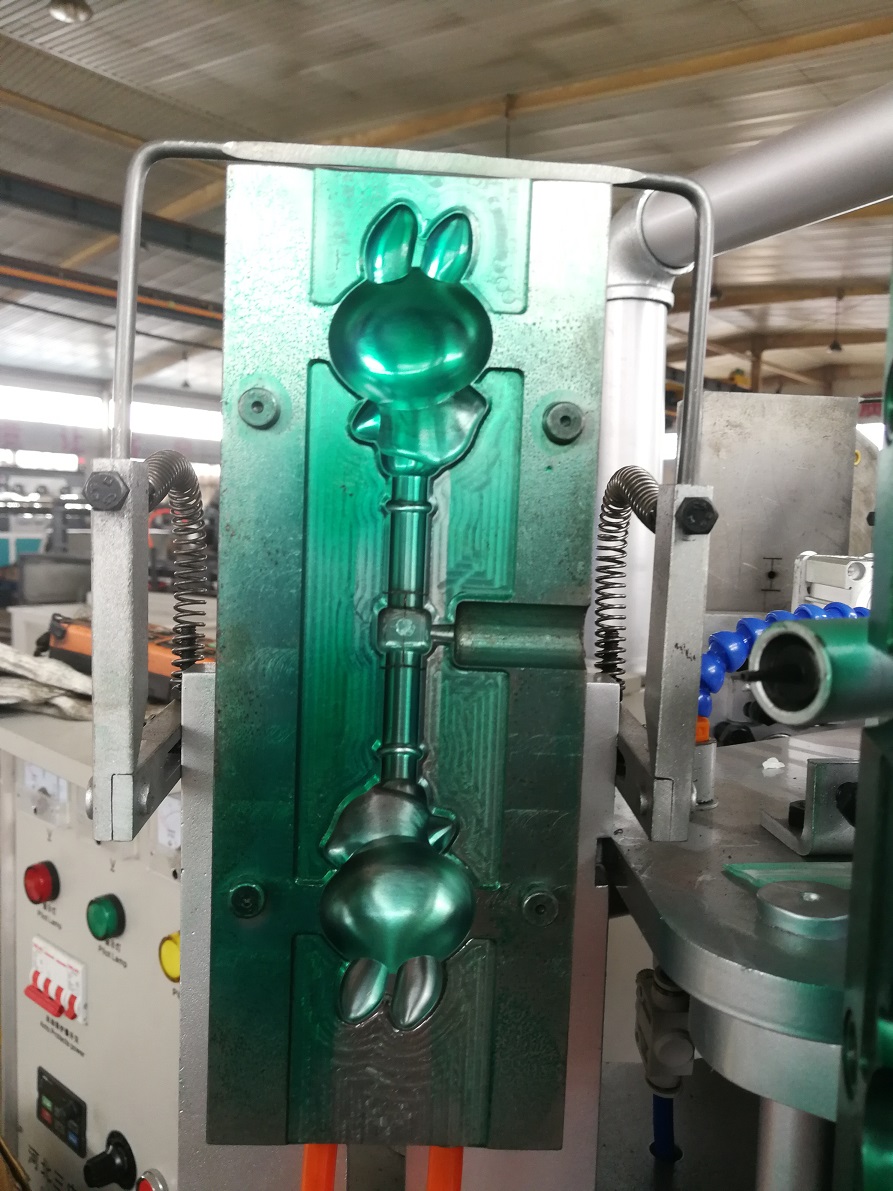

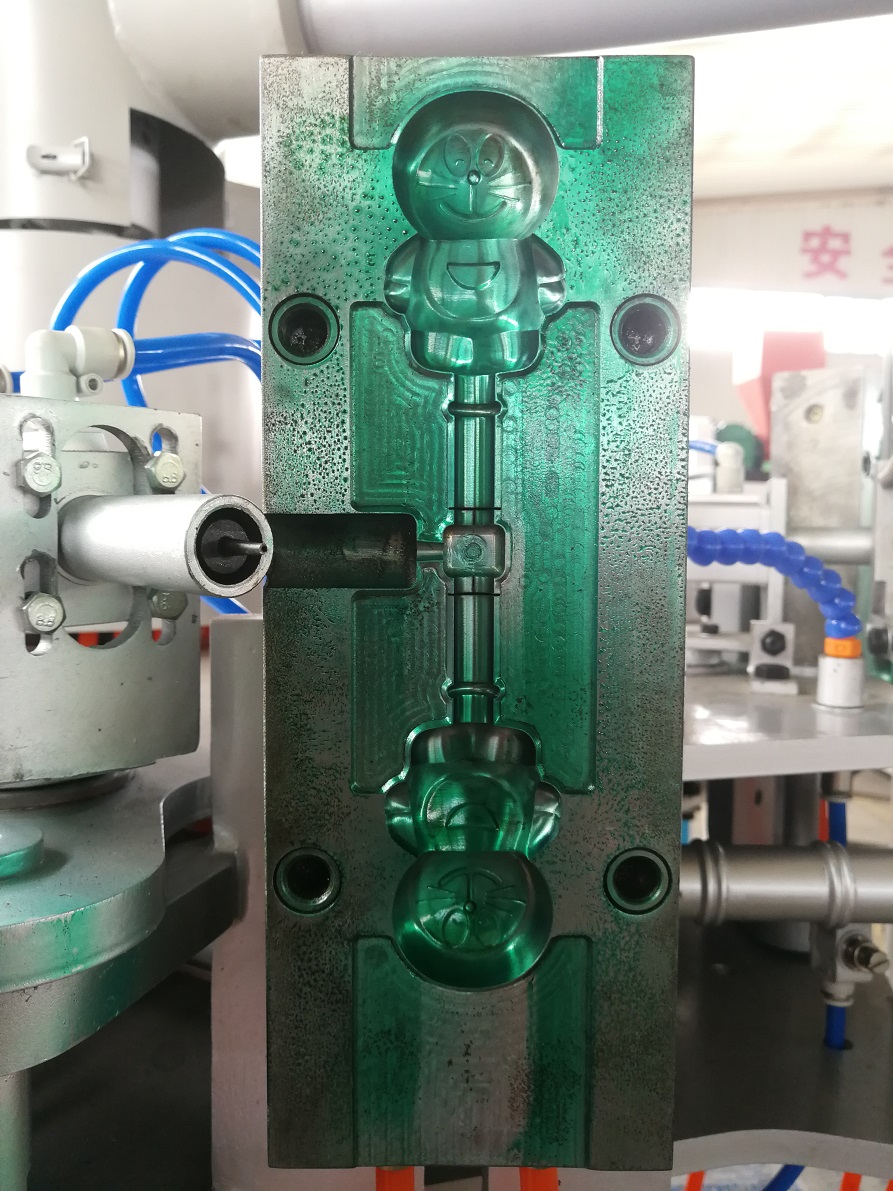

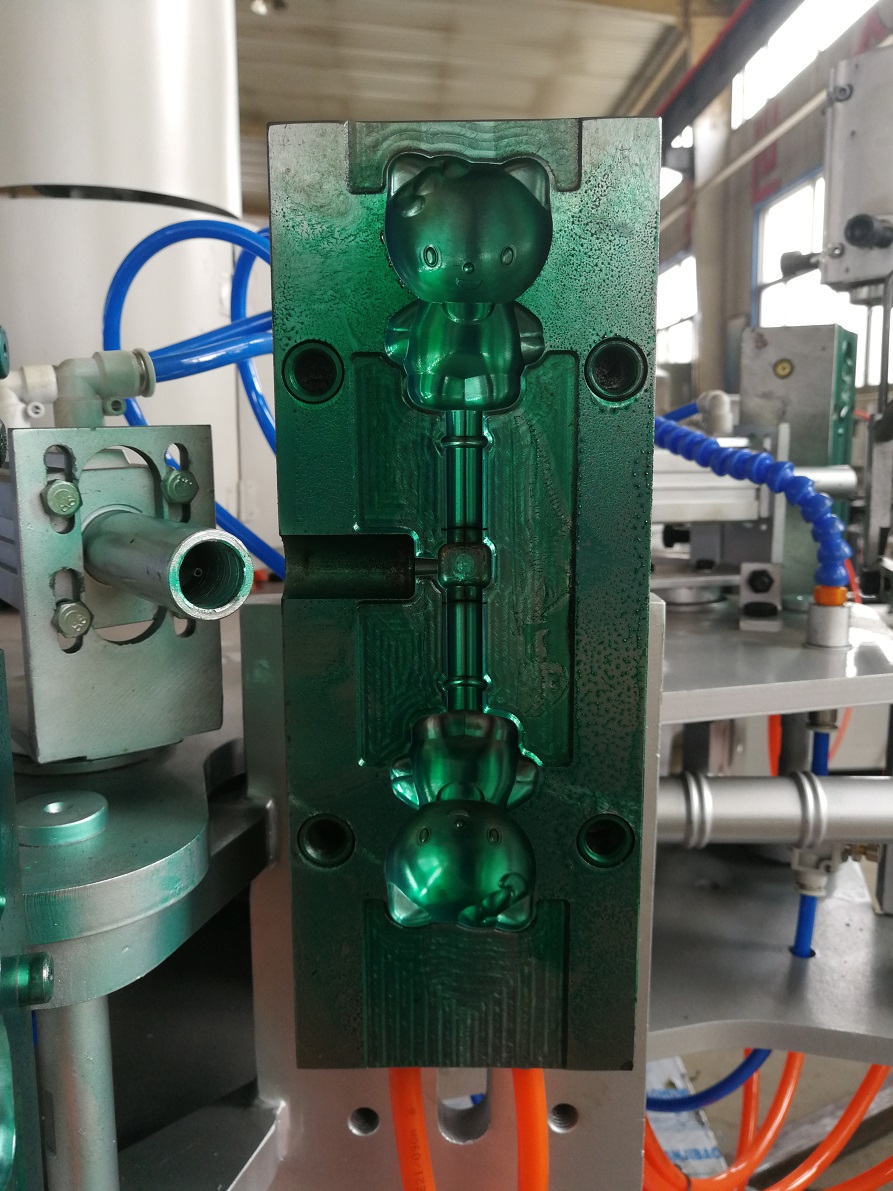

Ice lolly Tube Moulds are shown as below:










News for related molds shapes click here. Molds shapes for rotary blow molding machine










Our company machines in client jobsite:






Auxiliary Machines
Only blow molding machine cannot operate, we should use the blow molding machine together with below auxiliary machines:
1, Air compressor: use to supply compressed air

2, Auto Loader: use to load virgin resins to the hopper of the extrudor

3, Chiller: use to cooling the molds, because after long time operation, the molds will become hot;

4, Crusher: for the waste material from the blow molding machine, crusher will break the waste material to be small pieces, so we could use the recycled materil to mix with virgin resins again(customer decied to reuse material depends on the actual condition).

5, Mixer: The recyled material will be mixed with virgin resins and use mixer to mix the materials averagely.

6, Molds: all the plastic product shapes depend on molds;

Ice lolly Tube Plant Layout Introduction.

Ice lolly Product Production Plant Layout

We also could offer the plant quotation
Packing method:
