Fruity ice tubes blow molding machine

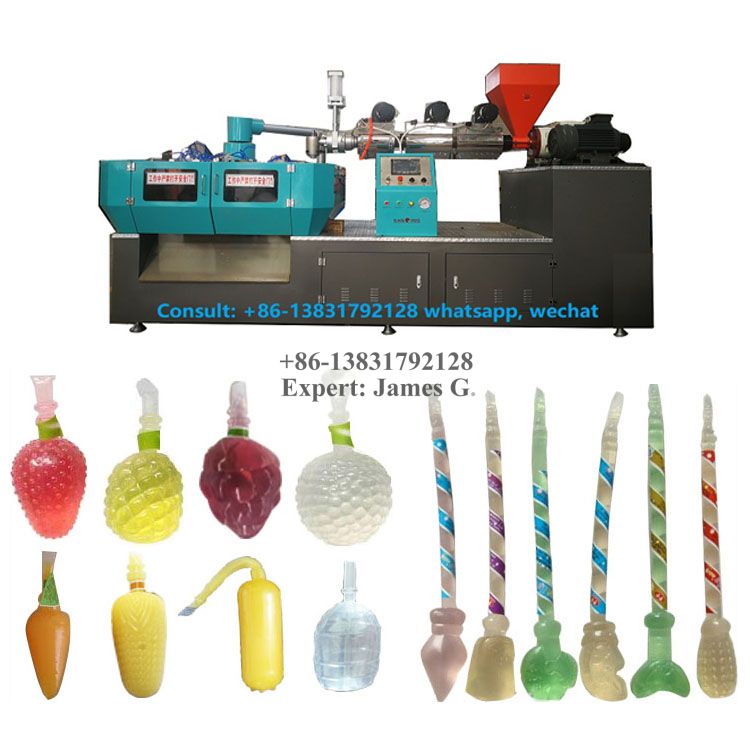

               Sanqing Machine manufacture best rotary blow molding machines, this type small rotary blow molding machine could produce ice lolly tubes with high speed, every hour could reach above 2500 pieces; We could produce ice lolly tubes with full automatic process, operator could get the tubes directly.

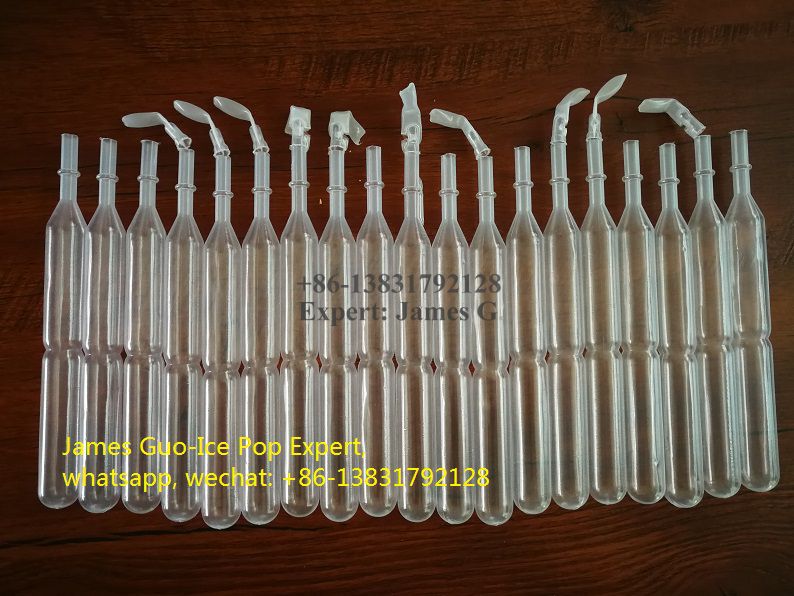

              Ice lolly tubes: The ice lolly tubes could be 45ml, 80ml, 90ml, 100ml etc. Mainly 80-90ml from around the world. The tubes could be marked with company logo, ingredients, year, month, etc. If buyer don't have the ready design, we could offer options for ice lolly and we could modify the design based on customer needs.

              Full auto function: The machine equipped with automatic cutter and deflashing system. Those systems will help the machine to de-flash automatically. It includes the tail cutter and de-flash devices.

              Filter:  The filter is used to filter the dust and dirty from the material. It will stop the dust go and stick at the die head. If the dust jam in die head, the material will be dirty and have dirty line. You need to open the die core and cup to clean it, which waste a lot of time. But the filter needs to be cleaned every shift to ensure the production quality.

              Die Core and cup: If you would like to produce different volume of the ice lolly, please remember to change die core and cups inside the die head. Because die core and die cups decided the parison size. Different volume of product requires different die core and cup sizes.

              Raw Material: the raw material of the ice lolly tubes are LDPE(Low density polyethylene), buyer could buy the local material of LDPE material. It is a kind of good material to produce ice lolly tubes. This kind of material is high transparent and good strength.

              User Manual and Cautions: We have user manual and cautions to supply to buyers, which could prevent the machine have potential operation problems. If we are not yet provide to you, you could requrest from us, that is very important!

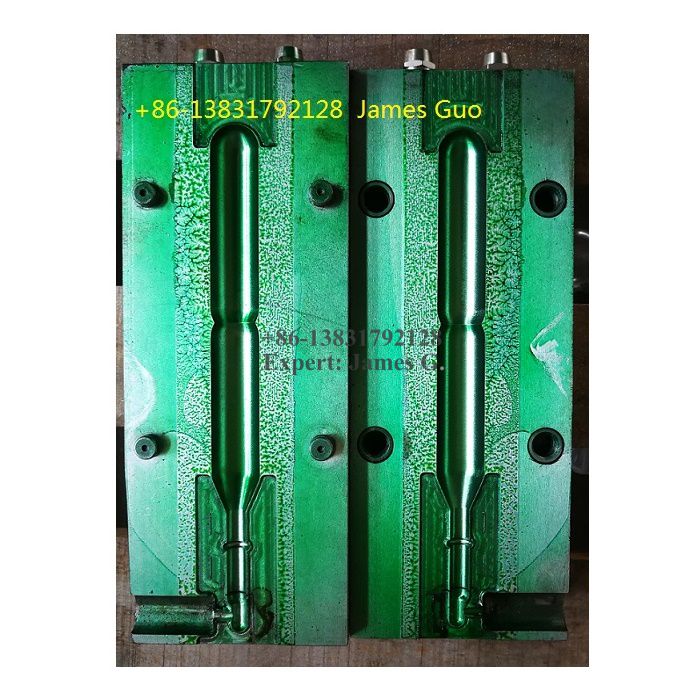

Above is the ice lolly molds

Die core and cup

ice lolly tube blowing machine from youtube.com

---------------------------------------------------------------------------------------------------------------------

SQ-6 Separate Style Rotary Blow Molding Machine

           Rotary Blow Molding Machine is our famous machine, which is suitable to produce small bottles from 1ml to 800ml. This machine was widely used for produce ice lolly tubes, ice pop bottles, milk bottles, yogurt bottles, medicine bottles and pipette dropers.

           Rotary Blow molding machine could work with LDPE, HDPE, PP materials, the bottle thickness could be controlled by our machine easily.

           Our Rotary blow molding machine could produce with very high speed output, each hour can reach 3000 pieces of lolly tubes. 5000 pieces of pipette droppers. 1000 pieces above of the milk yogurt juice bottles;

Video Demo:

Below is ice lolly tube blow molding machine video from youtube.com

Below is litchi bottle 8 stations rotary blow molding machine demo::

Vieo Demo for machines operation in client jobsite:

We have three styles of rotary blow molding machine:

• connected style: the blower and extruder is connected to be a whole machine;

• separate style: the blower and extruder is separate to be two separate machines;

• PLC style: the blower and extruder is conneceted and controlled by PLC touch screen.


Connected Style Rotary Blow Molding Machine as below:

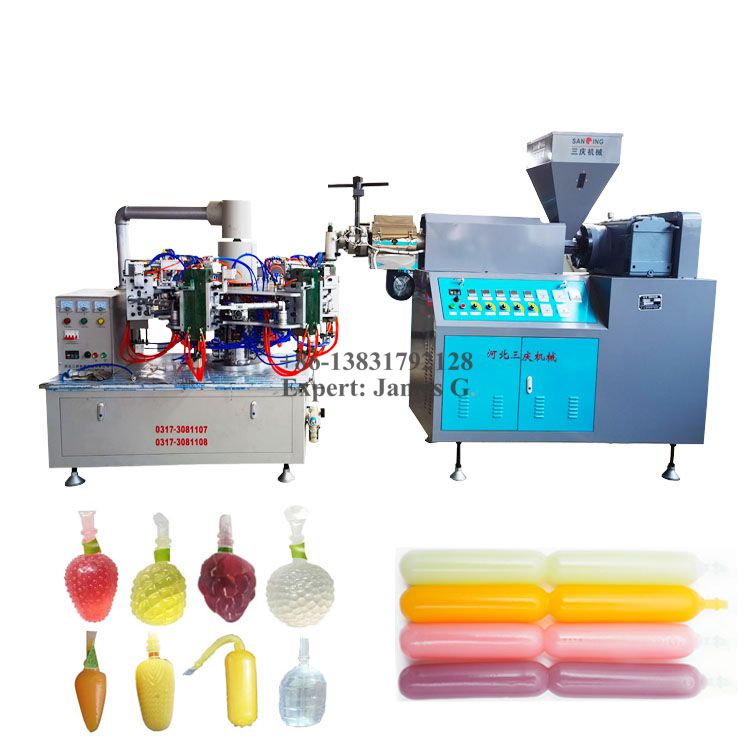

Separate Style Rotary Blow Molding Machine as below(Extruder and Blower Separately):

PLC type Rotary Blow Molding machine as below:

1, this type machine equipped with PLC control screen, the temperaturer controller is build in system.

Ice lolly Tube Moulds are as below:

Our company machine in customer jobsite:

Our machine in Bangladesh Exhibition

Auxiliary Machines

           Auxiliary Machines are necesary for blow molding machines. Only blow molding machine cannot operate, we should use the blow molding machine together with below auxiliary machines:

1, Air compressor: use to supply compressed air

2, Auto Loader: use to load virgin resins to the hopper of the extrudor

3, Chiller: use to cooling the molds, because after long time operation, the molds will become hot;

4, Crusher: for the waste material from the blow molding machine, crusher will break the waste material to be small pieces, so we could use the recycled materil to mix with virgin resins again(customer decied to reuse material depends on the actual condition).

5, Mixer: The recyled material will be mixed with virgin resins and use mixer to mix the materials averagely.

6, Molds: all the plastic product shapes depend on molds, we can produce molds for the blow molding machine, the molds could be designed by our company;

Ice lolly Tube Plant Layout

Ice lolly Production Plant Layout

Packing method:
