SQ-6-2 Rotary Blow Molding Machine

This type of machine is suitable to produce HDPE type bottles with cutting neck. For example milk bottles, yogurt bottles, etc.

Model

SQ-6-2

Specifications select

Product Detail

SQ-6-2 Rotary Blow Molding Machine

This type of machine is suitable to produce HDPE type bottles with cutting neck. For example milk bottles, yogurt bottles, etc. The most biggest advantage of this machine is achieved full automatic operation. The bottles could be trimmed automatically after delivery out from conveyor.

For this type of machine, we could produce 4 molds, 6 molds, 8 molds, customer could choose based on the requirement.

Speed: 500ml bottles: about 1500 PCS per hour;

Max. Bottle Containment	800ml
Working Stations	6 stations
Productive capacity	1200 PCS per Hr (500ml bottle)
Allowed Mould width	125mm
Allowed Mould Thickness	118mm
Blowing Air pressure	0.4-0.7Mpa
Rated Power	25kw
Extruder Screw Diameter	75mm
Plasticizing Capacity	60KG/Hour
Size of Main Frame(L.W.H)	4500×1200×1700mm

Machine video is as below:

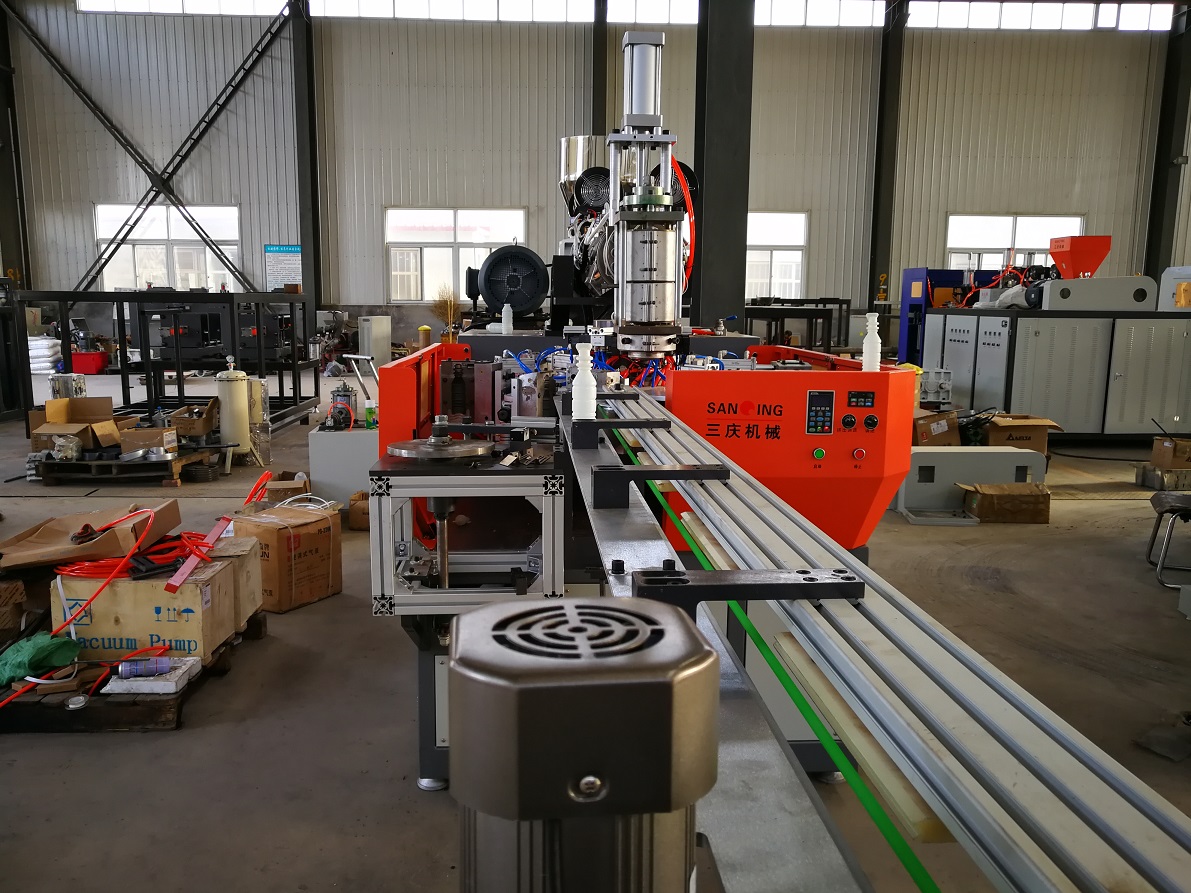

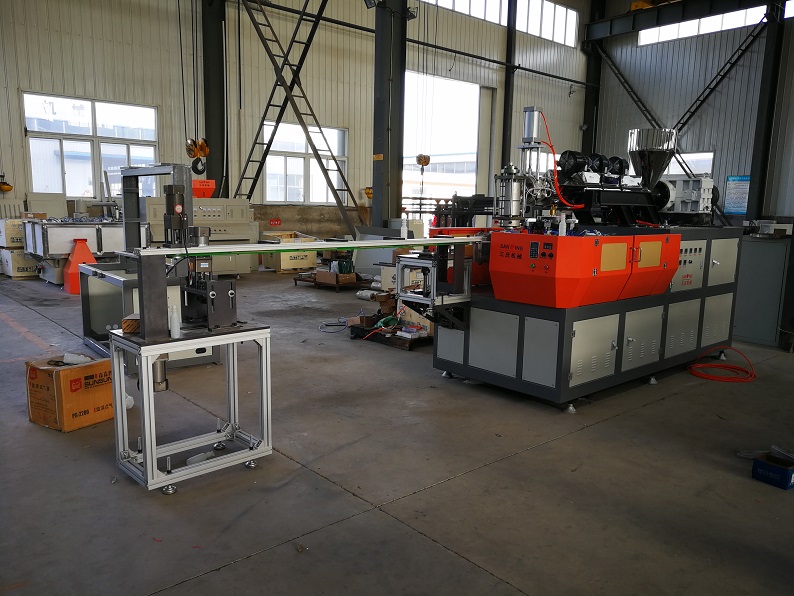

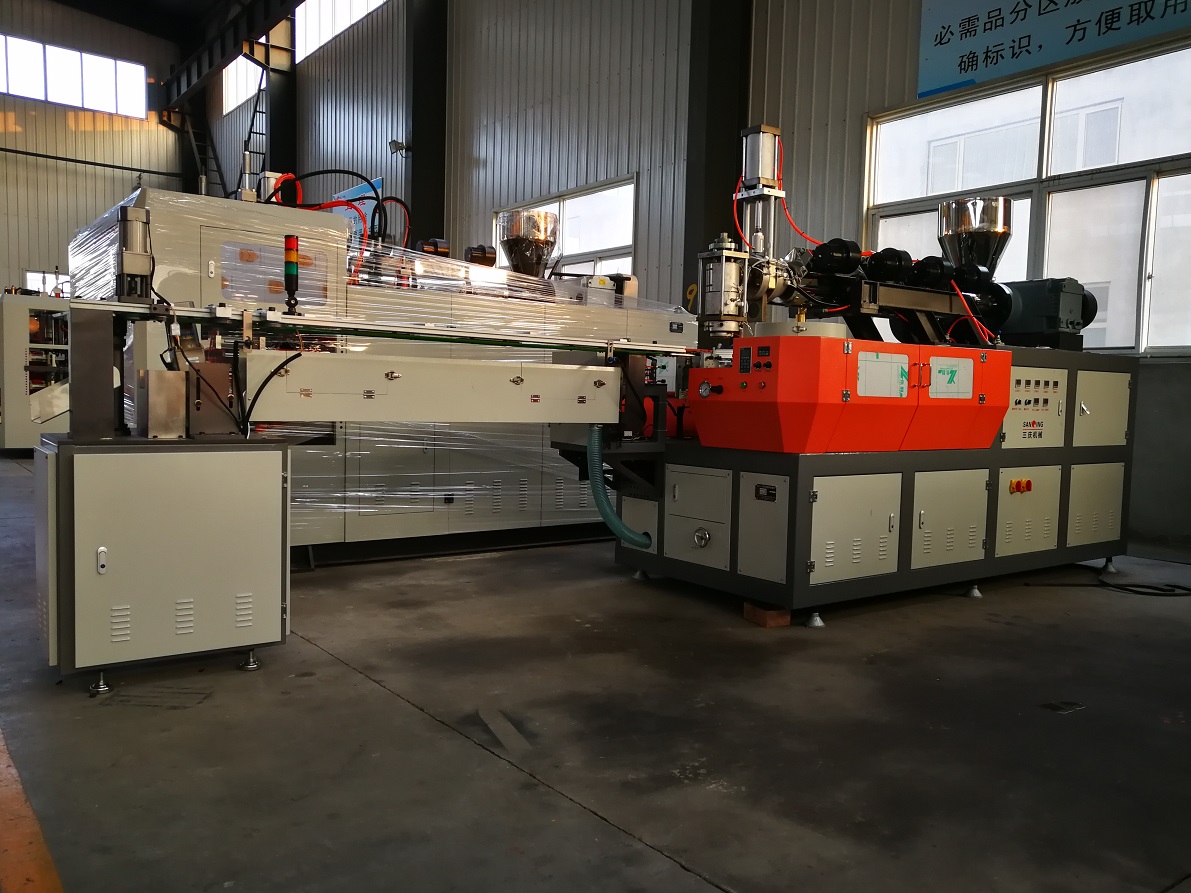

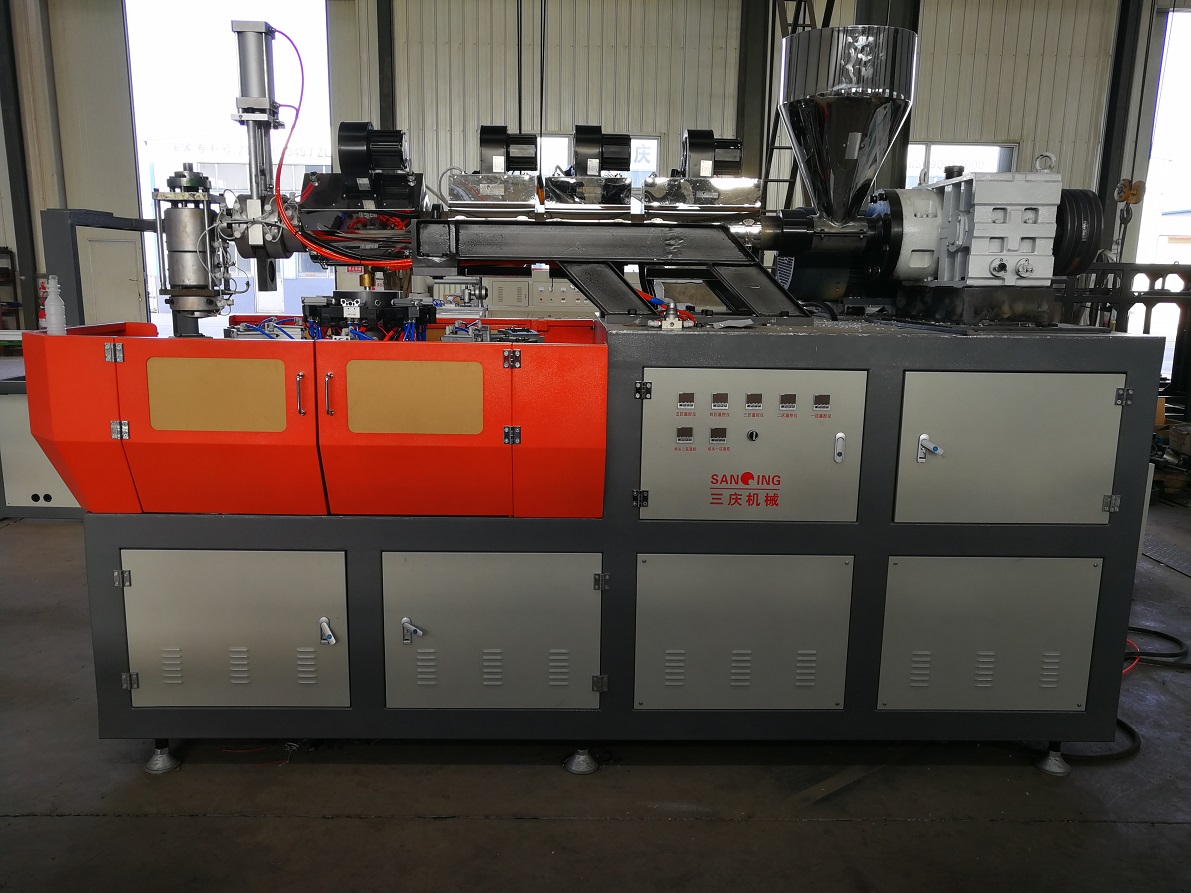

The machine actual photo as below:

This machine could produce the bottles as below:
