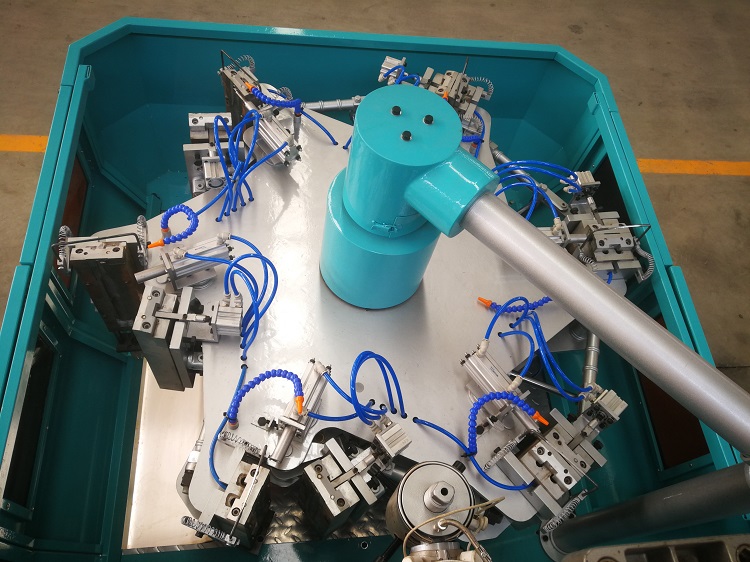

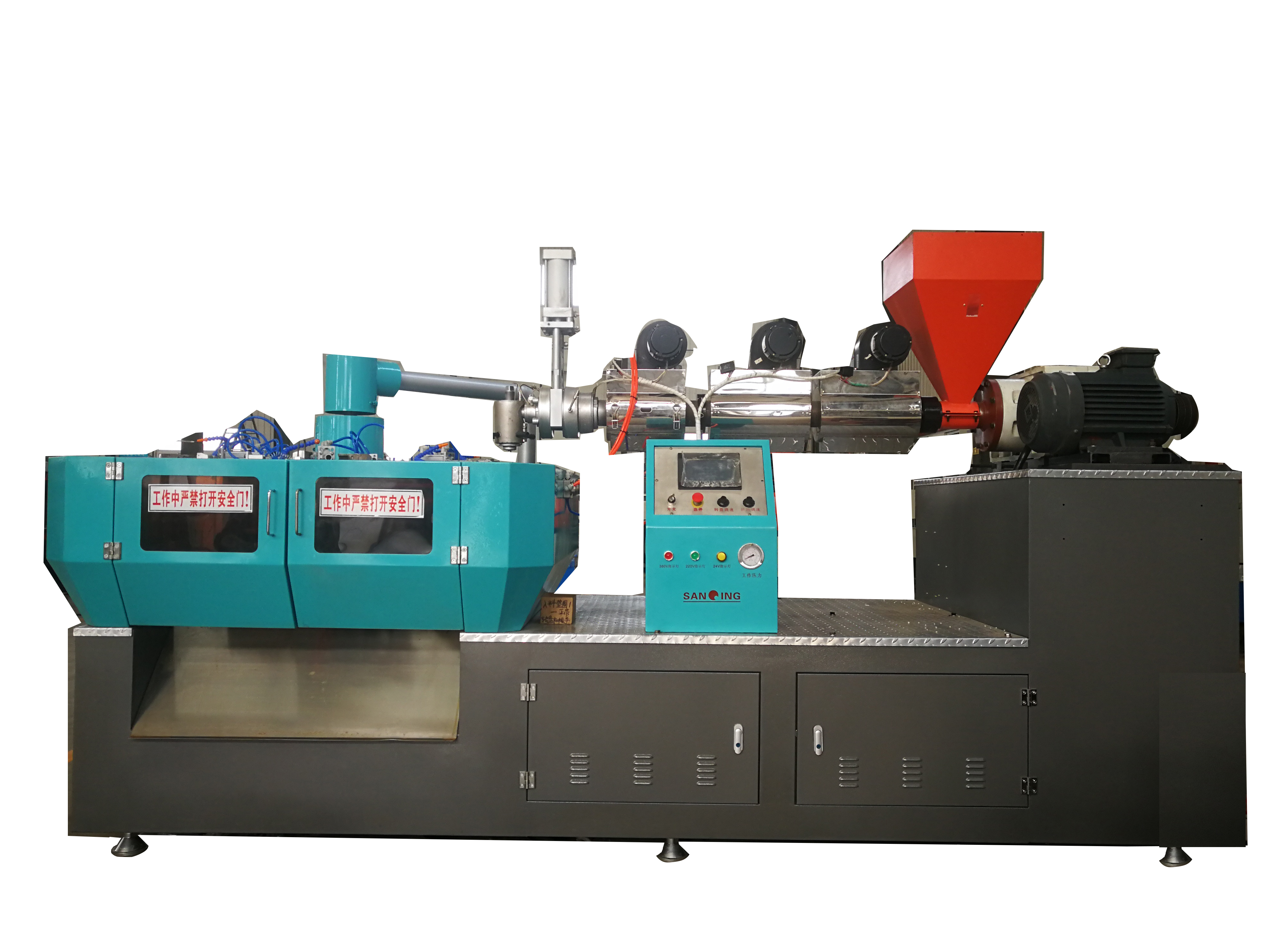

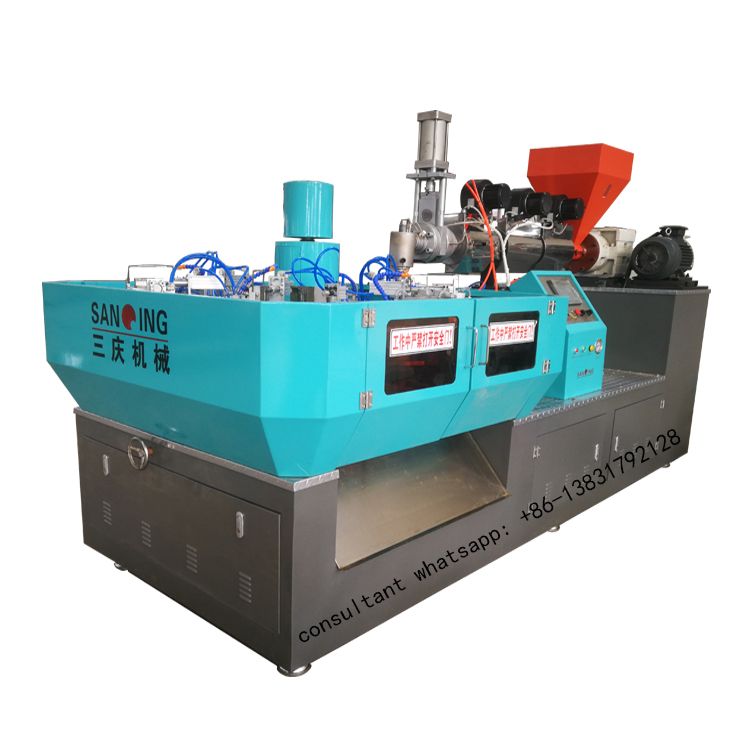

Rotary machine is suitable to produce ice lolly and jelly toys tubes

Author:James Guo Click: Time:2020-03-24 15:50:37

             Rotary blowing machine is suitable to produce ice lolly tubes and jelly toys tubes, which is the fastest speed production machine for this kind of LDPE soft tube products. Some small tubes like 40ml jelly could be produced with double cavities. For the normal six stations, we could produce 3000 pieces of tubes per hour. For the small jelly tubes, we could produce almost 5000 pieces per hour.


             This machine works with pneumatic power, the air pressure could be 0.6m3/min and 0.8MPA. Customer just need to prepare a simple and cheap air compressor could be cooperate with the blowing machine.


             Cooling water is necessary for the production process as well, because when there's hot energy transfered from hot material to the molds, the molds temperature will raise up, if the molds cannot cool down, the product will be easy to stick on molds.  Chiller is also need to use to cool the water and let the water get to be cool always.


             The power of the rotary machine is around 15 KW, which is very energy saving machine comparing with hydraulic power machines. China power is 380V, if you need power according to your country, please let us know.










Rotary machine is suitable to produce ice lolly and jelly toys tubes
