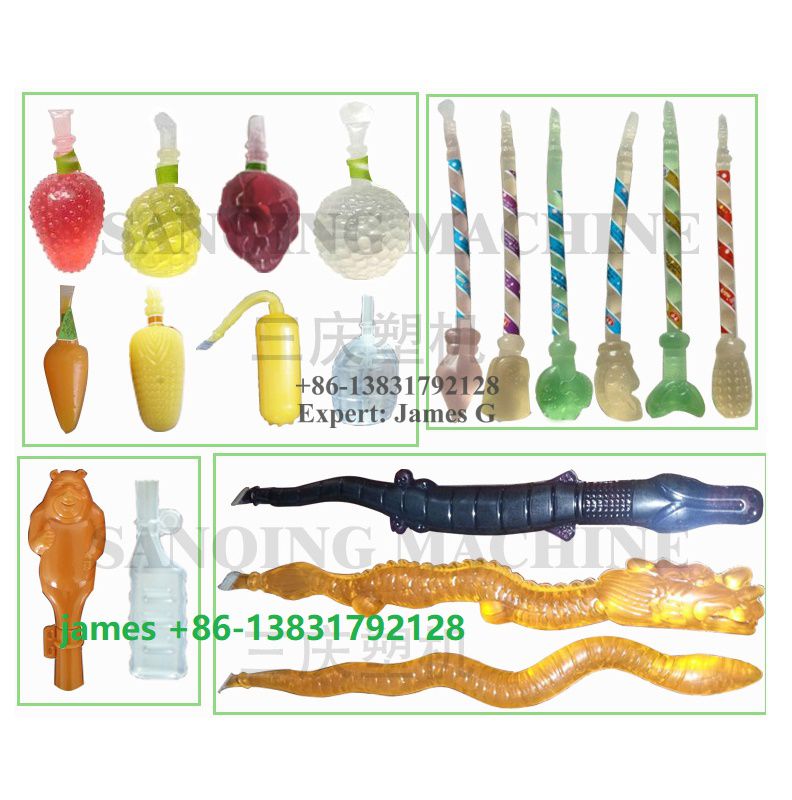

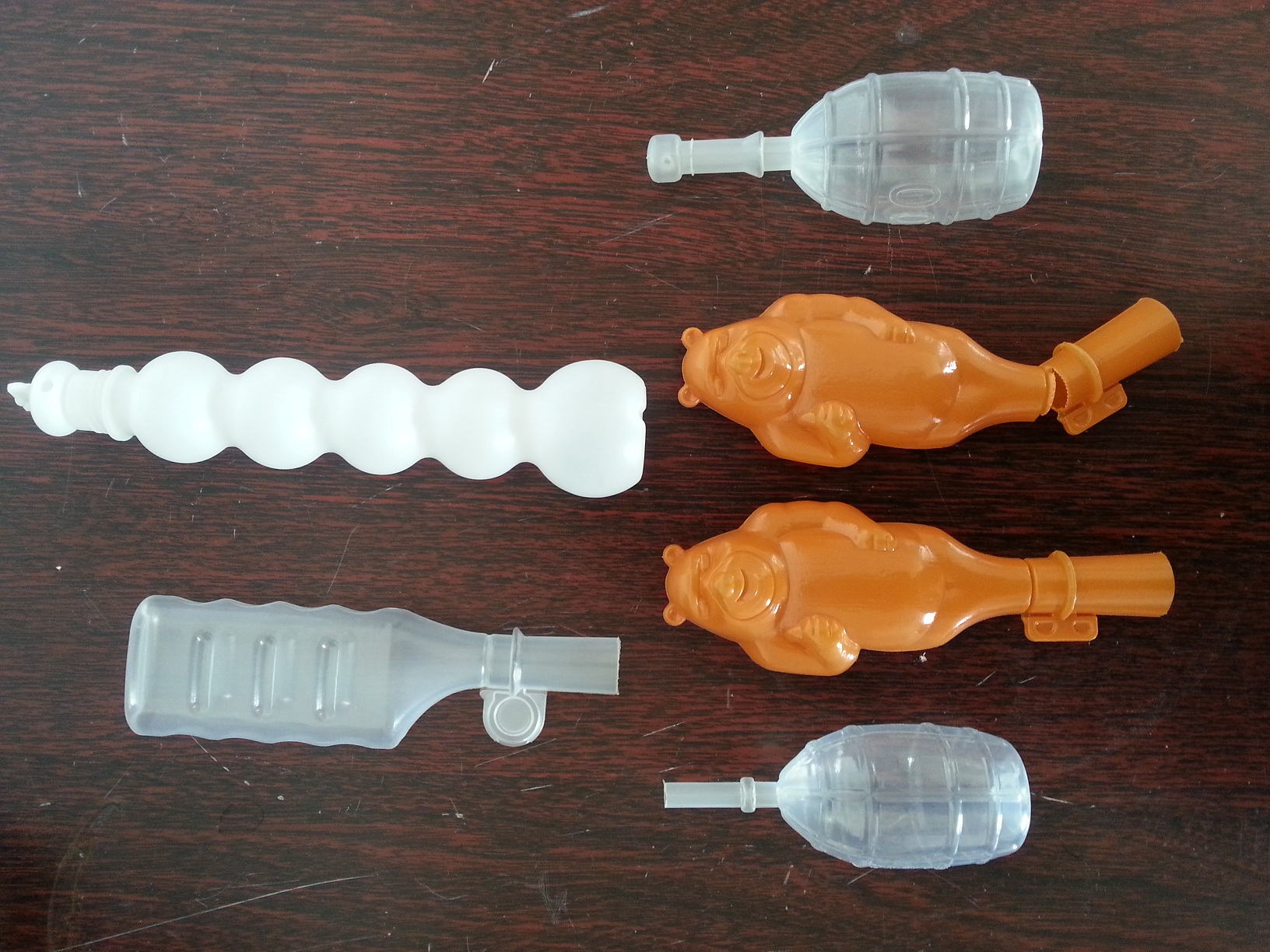

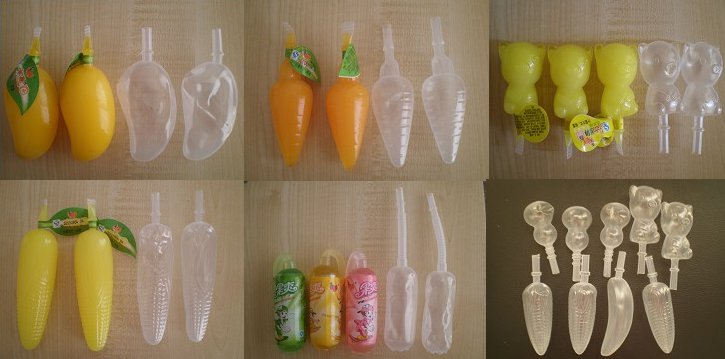

Jelly Tubes Collection

Jelly shapes collection, we produce jelly tubes blow molding machine. We also provide shapes for customer for selection.

Jelly Tubes Collection
Model

SQ-4 SQ-6 SQ-8

Specifications select

Product Detail

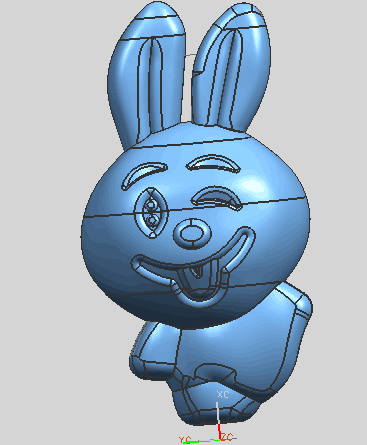

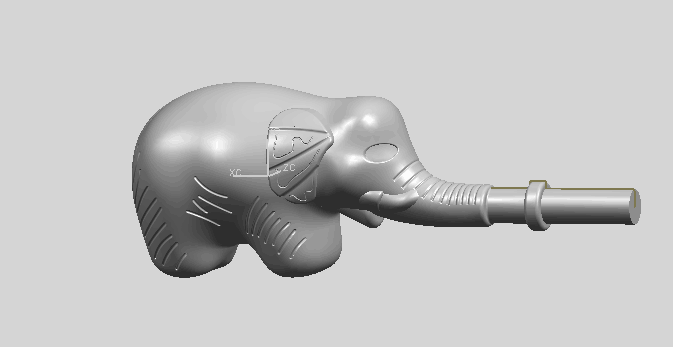

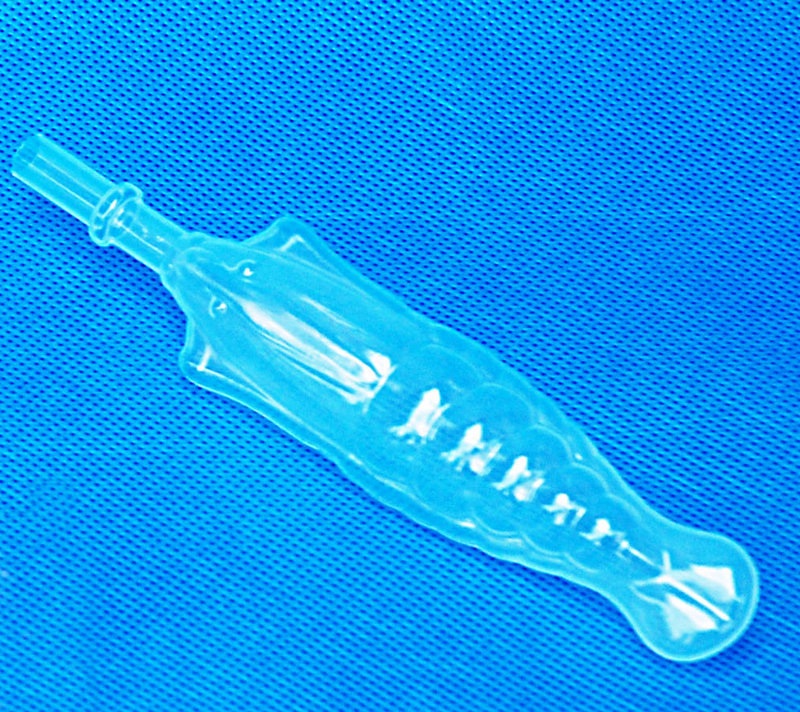

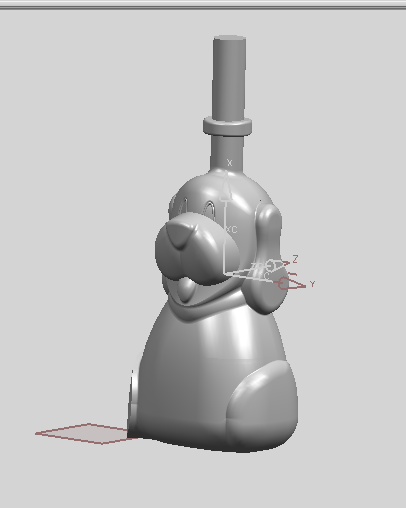

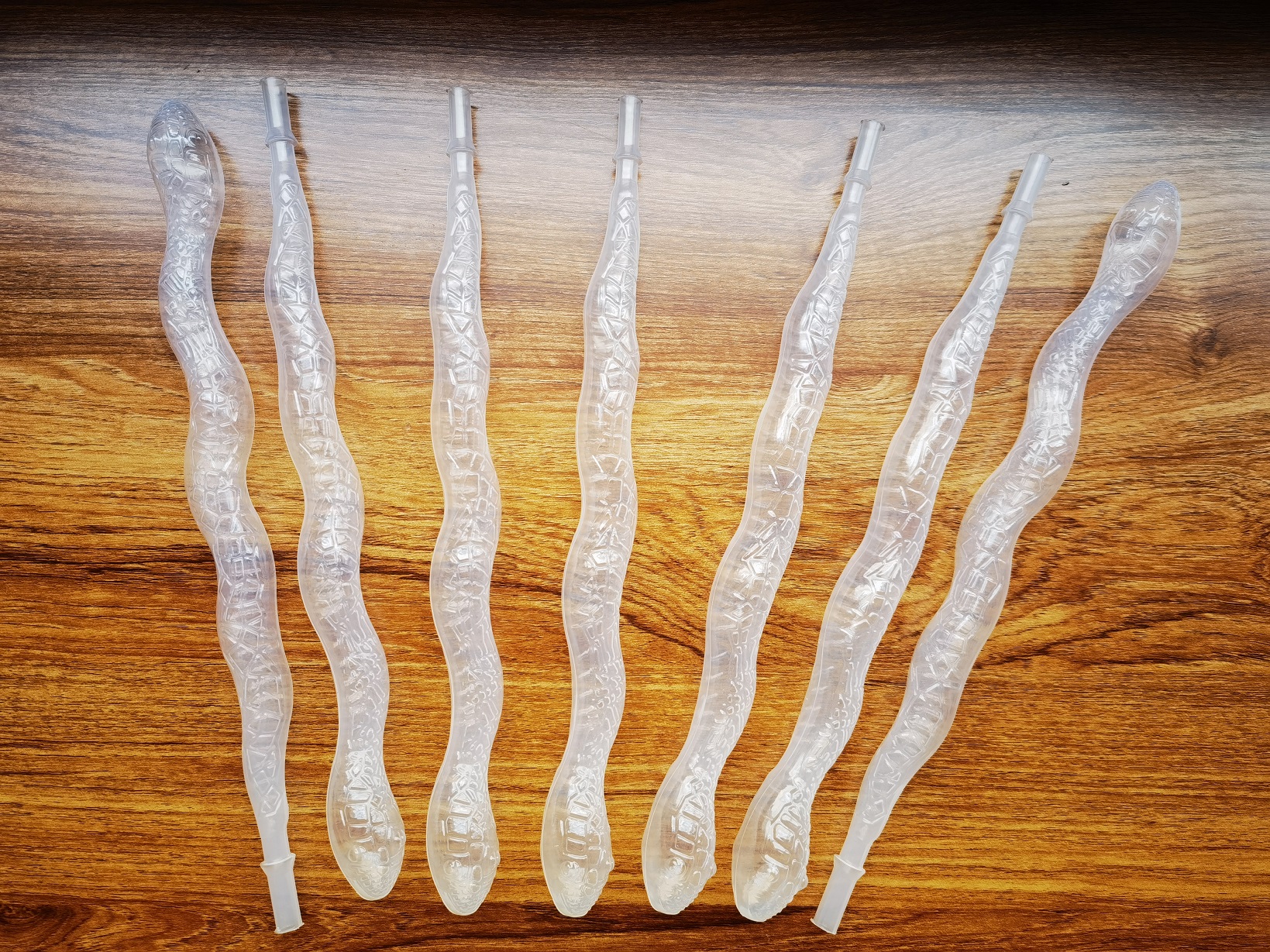

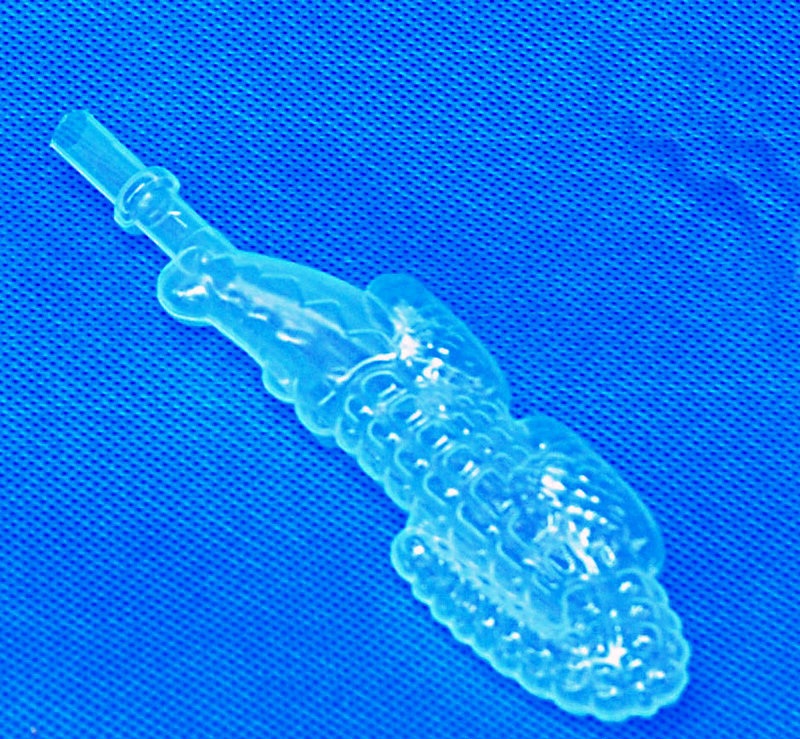

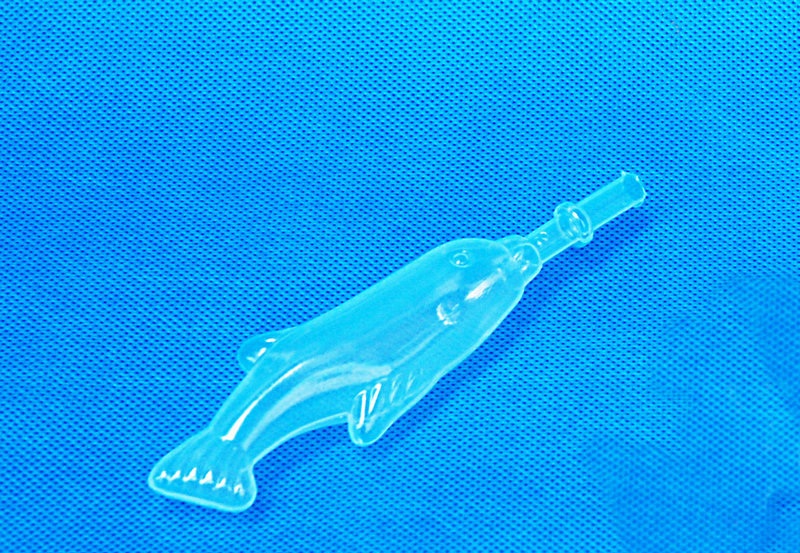

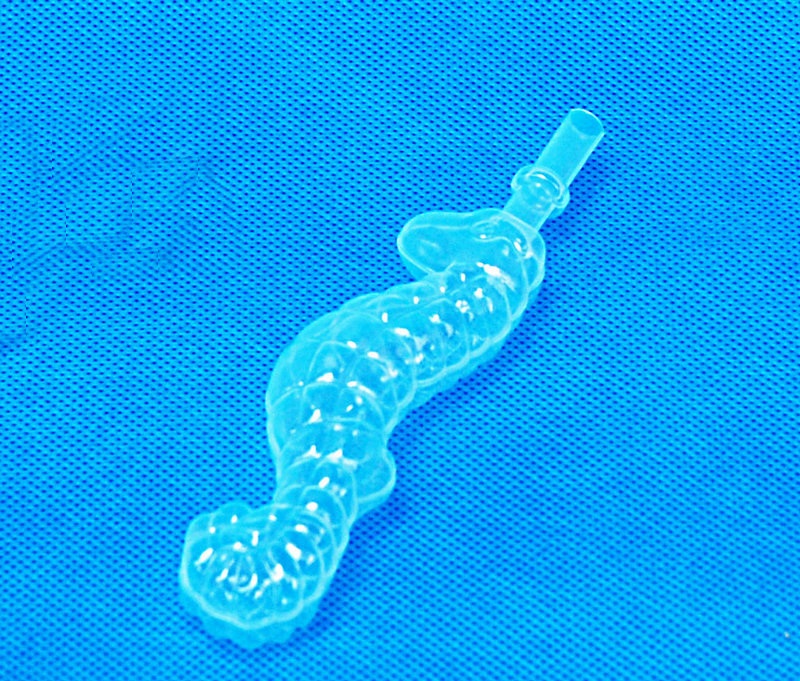

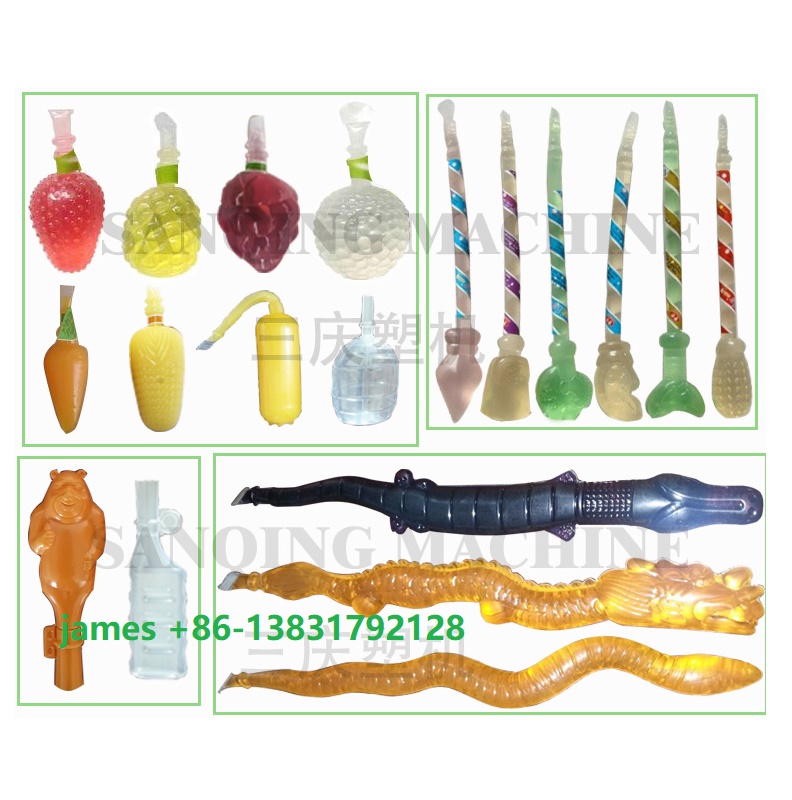

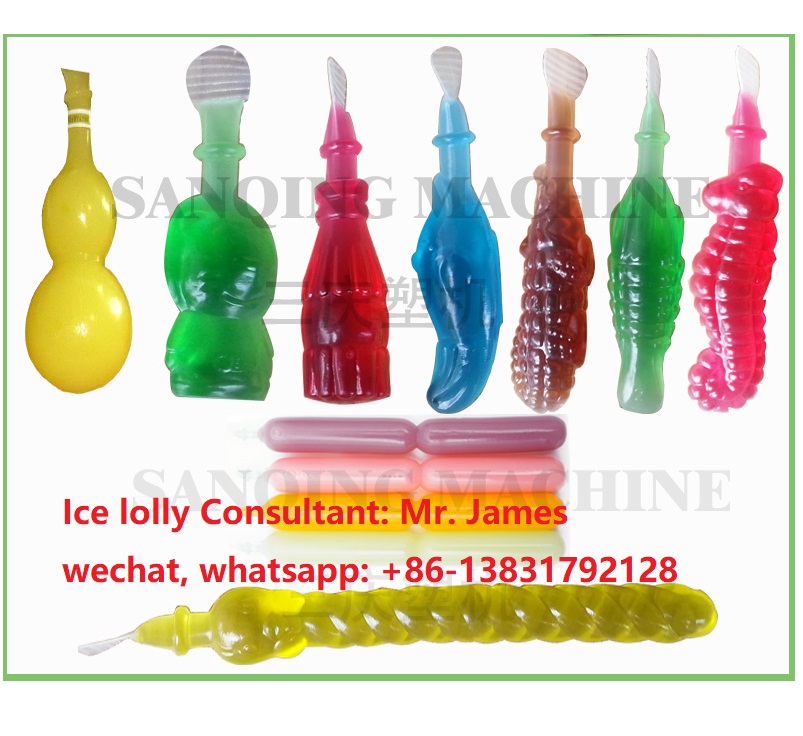

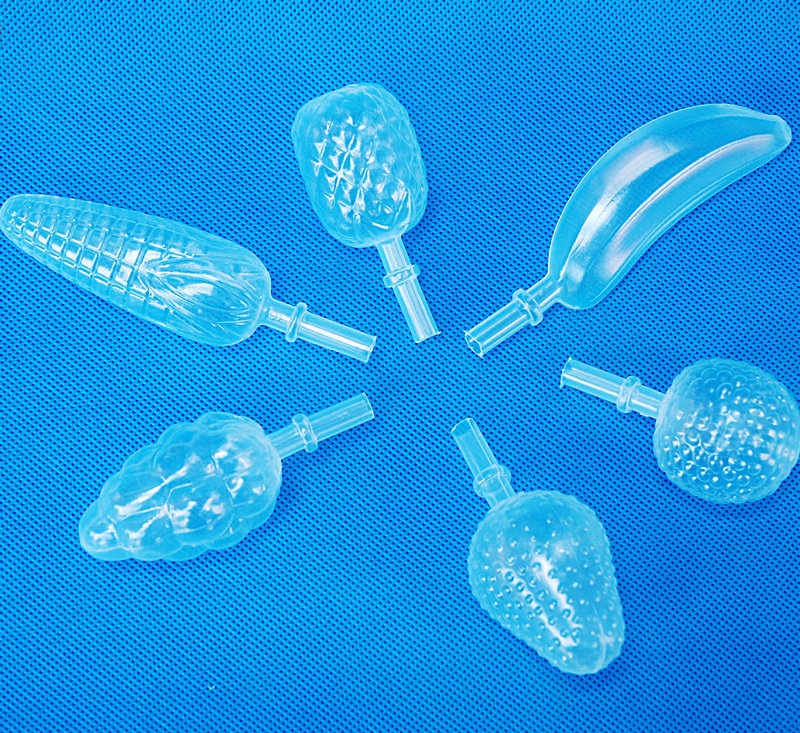

Jelly Shapes Collection

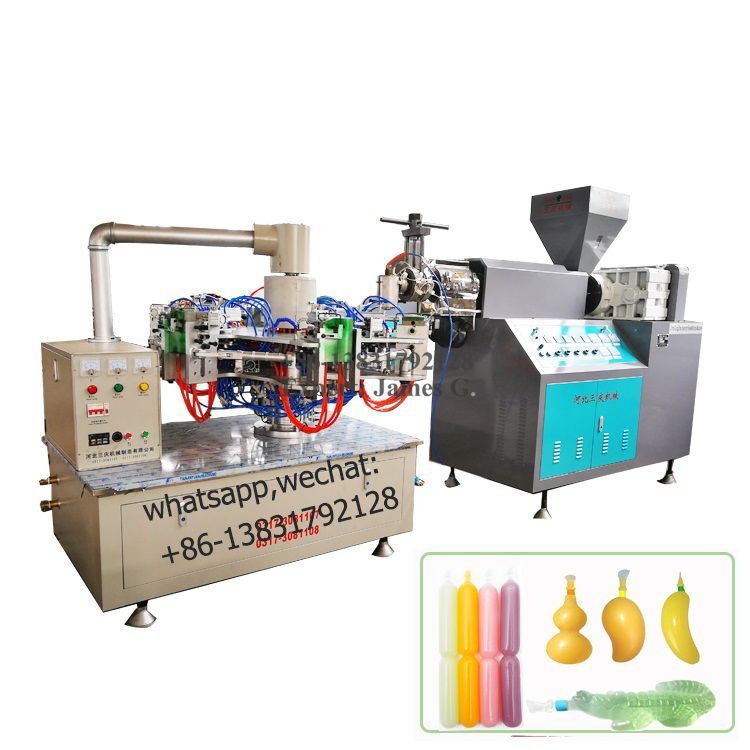

SQ-6 Rotary Blow Molding Machine For Jelly Tubes


           Rotary Blow Molding Machine is our famous machine, which is suitable to produce small bottles from 1ml to 800ml. This machine was widely used for produce ice lolly tubes, ice pop bottles, milk bottles, yogurt bottles, medicine bottles and pipette dropers.


           Rotary Blow molding machine could work with LDPE, HDPE, PP materials, the bottle thickness could be controlled by our machine easily.


           Our Rotary blow molding machine could produce with very high speed output, each hour can reach 3000 pieces of lolly tubes. 5000 pieces of pipette droppers. 1000 pieces above of the milk yogurt juice bottles;


Max. Bottle Containment

800ml

Productive capacity

2500-3000 PCS/HR for Lolly tube

Allowed Mould width

125mm

Allowed Mould Thickness

118mm

Blowing Air pressure

0.4-0.7Mpa

Rated Power

15kw

Extruder Screw Diameter

55mm

Plasticizing Capacity

40KG/Hour

Size of Main Frame(L.W.H)

3300×1200×1500mm

Weight

1500kg


Video Demo:


Below is ice lolly tube blow molding machine video from youtube.com



Below is litchi bottle 8 stations rotary blow molding machine demo:




Vieo Demo for machines operation in client jobsite:







We have three styles of rotary blow molding machine:


  • connected style: the blower and extruder is connected to be a whole machine;
  • separate style: the blower and extruder is separate to be two separate machines;
  • PLC style: the blower and extruder is conneceted and controlled by PLC touch screen.



Connected Style Rotary Blow Molding Machine as below:

Separate Style Rotary Blow Molding Machine as below(Extruder and Blower Separately):


PLC type Rotary Blow Molding machine as below:

1, this type machine equipped with PLC control screen, the temperaturer controller is build in system.

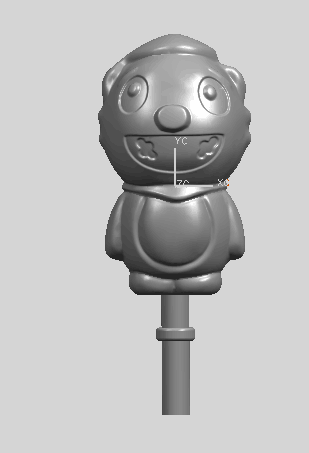

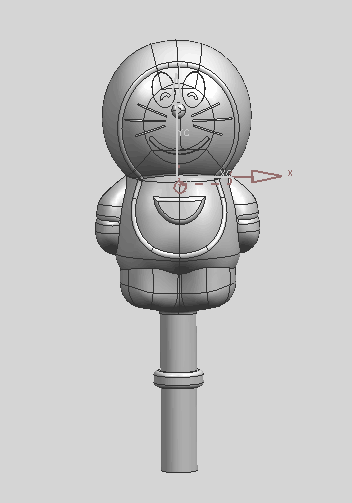

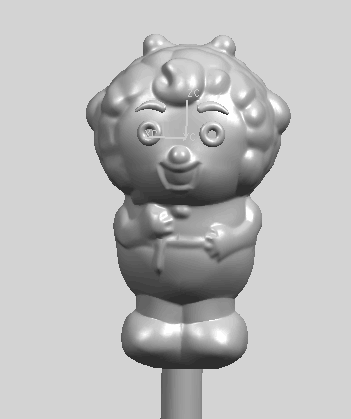

Ice lolly Tube Moulds are as below:

News for related molds shapes click here. Molds shapes for rotary blow molding machine





Our company machines in client jobsite:



Auxiliary Machines


            Only blow molding machine cannot operate, we should use the blow molding machine together with below auxiliary machines:


1, Air compressor: use to supply compressed air

2, Auto Loader: use to load virgin resins to the hopper of the extrudor

3, Chiller: use to cooling the molds, because after long time operation, the molds will become hot;

4, Crusher: for the waste material from the blow molding machine, crusher will break the waste material to be small pieces, so we could use the recycled materil to mix with virgin resins again(customer decied to reuse material depends on the actual condition).

5, Mixer: The recyled material will be mixed with virgin resins and use mixer to mix the materials averagely.

6, Molds: all the plastic product shapes depend on molds;

Ice lolly Tube Plant Layout


Ice lolly Production Plant Layout


Packing method:
