ICE LOLLY STERILIZATION LINE

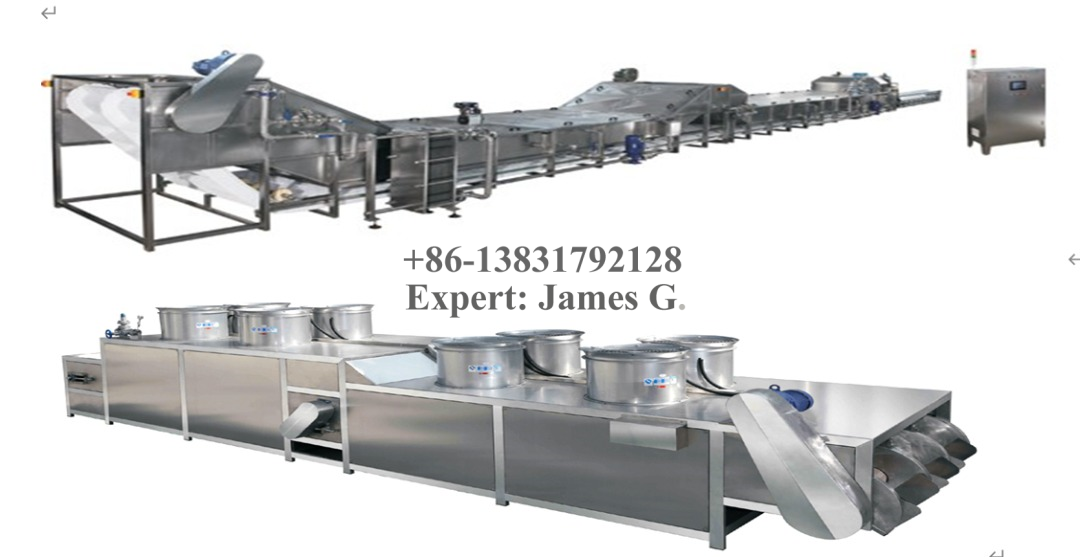

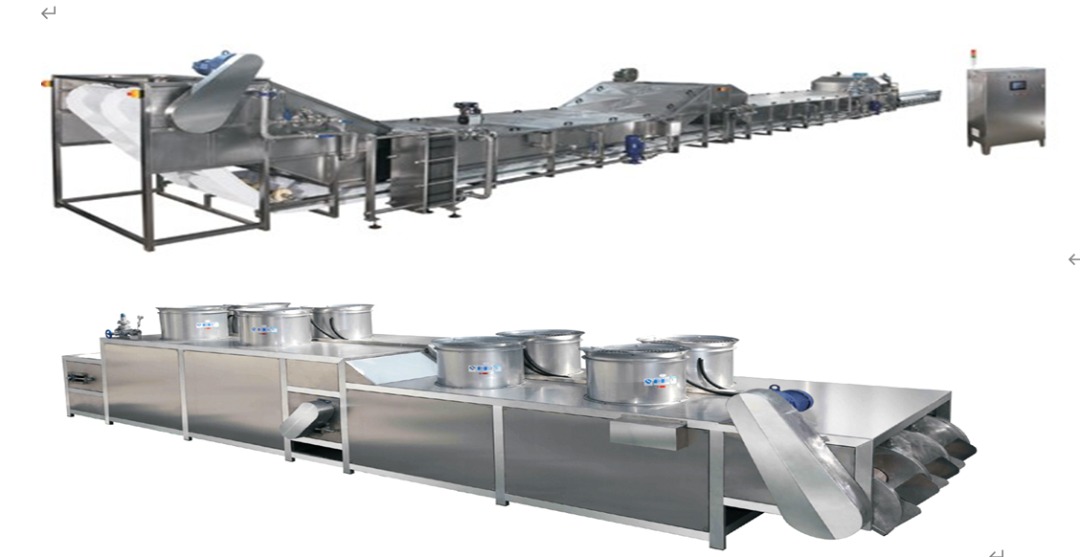

ice lolly strilization line photo
Video:
Machine Description:
Sterilize processing use the pasteurization technology. It is widely used for ice lolly product after the filling and sealing process. The processing is cleaning-> sterilizing -> cooling -> drying. There is complete set with the model CFD & CFR line, it reaches the production purpose of auto high efficiency,safety and sanitation.
Technical Data:
Model | BS-800 |
Power Supply | 3phase,380V,50HZ |
Total Power | 16kw |
Sterilize Temperature | 86-96℃ |
Temperature Control Type | Mechanical compensation automatic temperature control |
Feeding System | Plastic Plate |
Speed Adjustment | Stepless speed controller |
External Size | 18×0.8×1.7m |
Gross Weight | About 3 T |
Steam Usage | 0.3-0.6 T/H |
Working Air Pressure | Below 6kgf/cm² |
Note: The machine dimension can be customized according to customer’s requirement.
Technical Information:
Part 1: Transmission, lifting line
v The frame is made of 304 stainless steel with adjust foot.
v The power transmission used of Taiwan gear reducer motor.
v The conveyor belt adopts plastic plate.
v Supporting track used of stainless square tube.
Part 2: Sterilization and Cooling
v The frame is made of 304 stainless steel with adjust foot.
v Supporting track used of stainless square tube.
v Automatic control of sterilize water temperature. Sterilize time:8-16 minutes adjustable.
v With water- steam channel and hot water circulation pump.
v Sterilize part with plastic cover plate.
v Sterilize channel can be separately transmission, separate speed regulation.
Part 3: Drying
v The frame is made of 304 stainless steel with adjust foot.
v The conveyor belt adopts plastic plate.
v Supporting track used of stainless square tube, and install friction strip.
