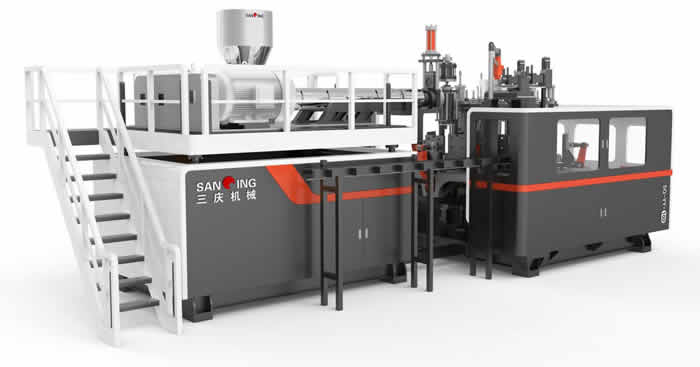

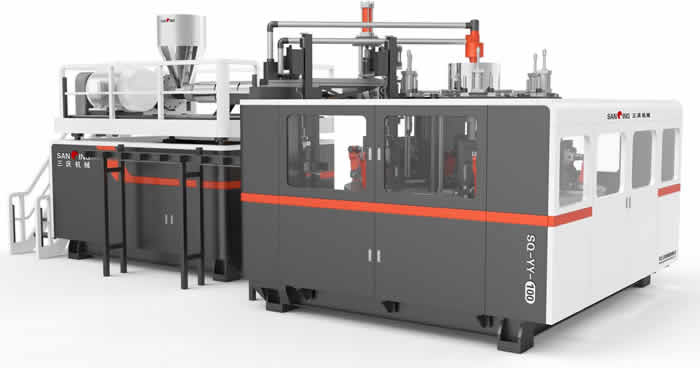

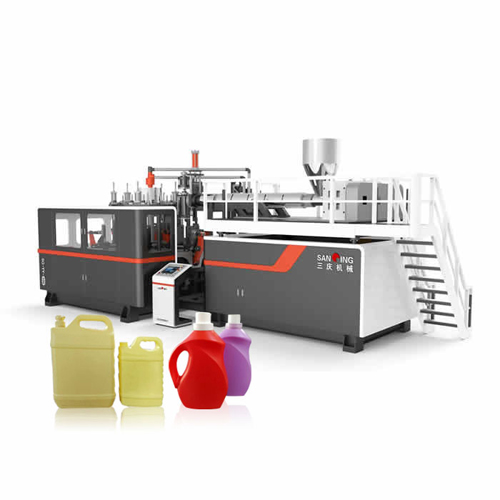

High Speed Rotary Blow Molding Machine SQ-6-S

This model has 6 patents, which is the first in China. It is suitable for blowing 3l-10l barrels and pots. Rotate the 6-position single die head to automatically punch

High Speed Rotary Blow Molding Machine SQ-6-S
MODEL

SQ-6-3L SQ-6-5L SQ-6-10L

Specifications select

Product Detail

        For the 5L bottles, this is the most fast machine in the world. Every hour could produce 700 pieces.


        This model of machine has 6 patents, which is the first invention in China.  It is suitable for blowing 3L-10L barrels and pots. Six rotational stations, single die head to automatically punch and blow the bottles. The output is about 700 pieces per hour. The whole servo system saves 400-600 yuan per day. Achieve real high efficiency and energy saving. It is the substitute of traditional hydraulic machine.


Equipment introduction:

1: high output: take 3L washing liquid bottle as an example: about 17000 in 24 hours.


2: power saving: full servo operation, the average power of the mold closing part is about 10kW, and the annual power saving cost is about 200000.


3: low mold cost: This machine is unified into a sub mold for edge punching, only one sub mold can be made.


Product features:


1. The output is high. Take 3L washing liquid bottle as an example, the output is about 17000 in 34 hours;

2. Energy saving, full servo system without oil pump motor, total power 10KW (excluding extrusion part);

3. The single parison is easy to adjust and operate;

4. Small products can be used as single and double die heads;

5. The mold cost is low, the single deflashing device is only at last step of the line, so it is not necessary to make deflashing devices each mold;

6. The patented of this machine is the first in China, and is the ideal replacement product of the double station multi-mode head hydraulic machines;


Item

Parameter

Remarks

No. of Die head

1-3

Working Station

6

Screw diameter

¢120

L/D1:25

Plasticizing capacity

260KG/H

Production Capacity

5 sec/mold

free load

Max product volume

5L

Below 5L

Machine size

7800*3900*3000

L*W*H

Weight

22T

Power

3P+1N-50HZ

380V/220V

Compressed air consumption

1.2m³/min

8KG

Cooling water consumption

1.0-1.5m³

Total power

145kw

Average power consumption

70KW

Servo 10KW, others 60KW

Extruder motor

75kw

1

Extruder heating

36KW

9 zone

Machine hands

1.85KW

2

 Driver motor

7.5KW

1

Servo parison controller

1.8KW

1

Open and close molds motor

21KW

6

Clamping force

5 Ton

Template size

350*400MM

W*H

Template Distance

210-500MM












This Machine could produce the below Products:

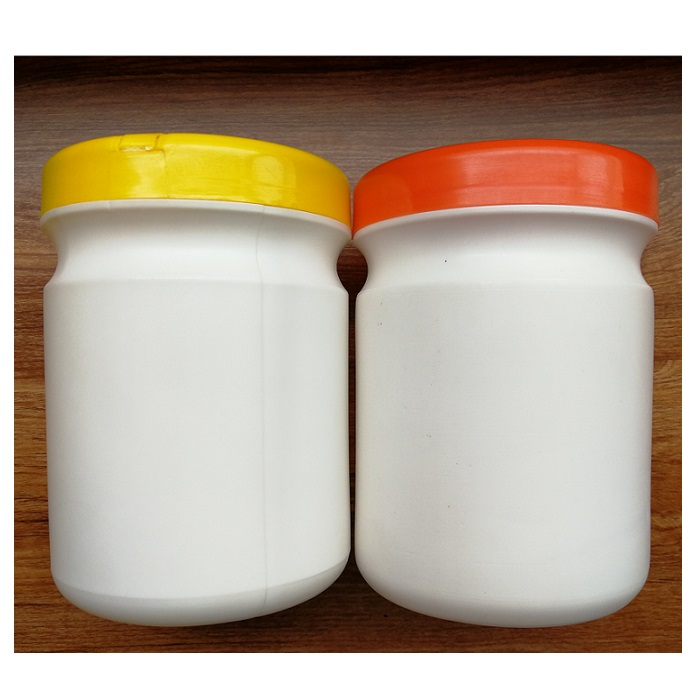

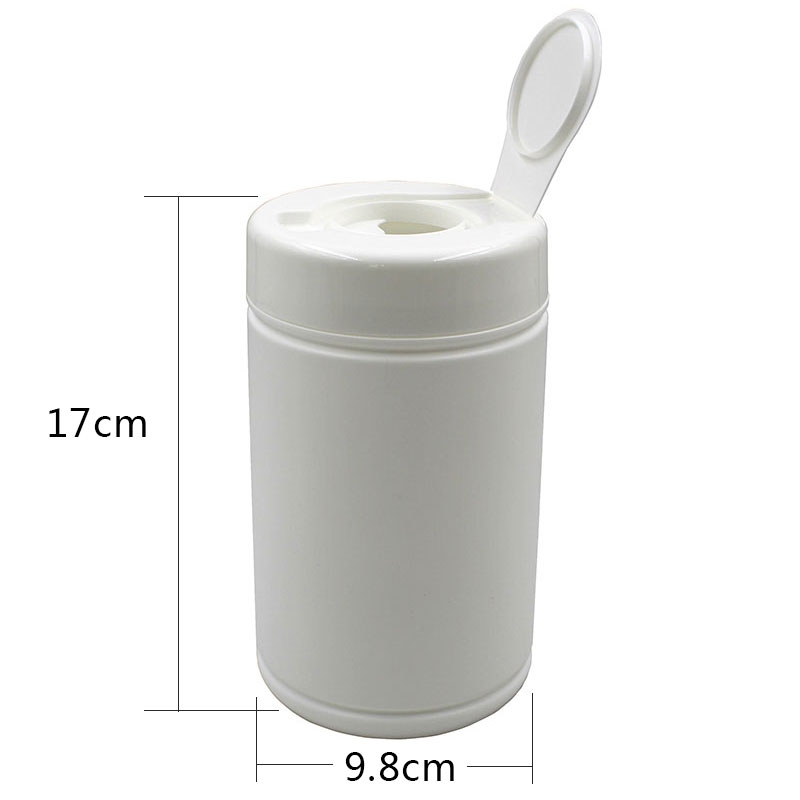

Wet Wipe Canister

Baby Wipe Canister

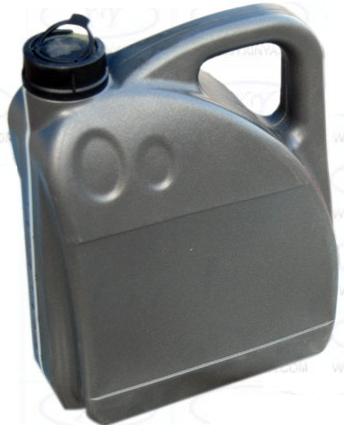

         Jerry Can



Jerry Can with View Strip




Auxiliary Machines


            Only blow molding machine cannot operate, we should use the blow molding machine together with below auxiliary machines:

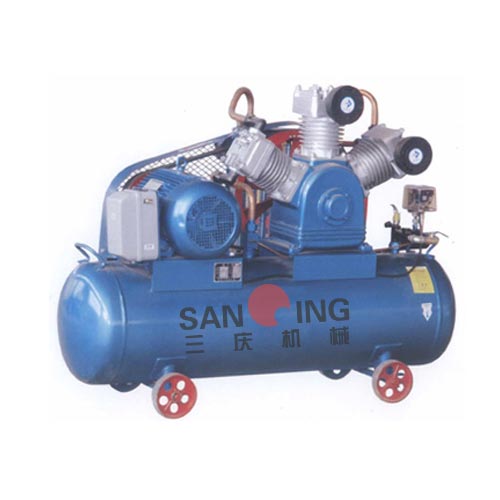

1, Air compressor: use to supply compressed air

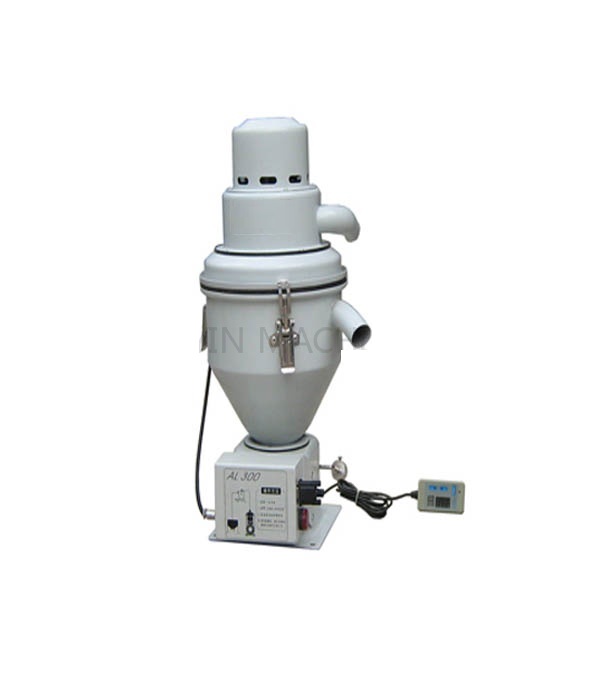

2, Auto Loader: use to load virgin resins to the hopper of the extrudor

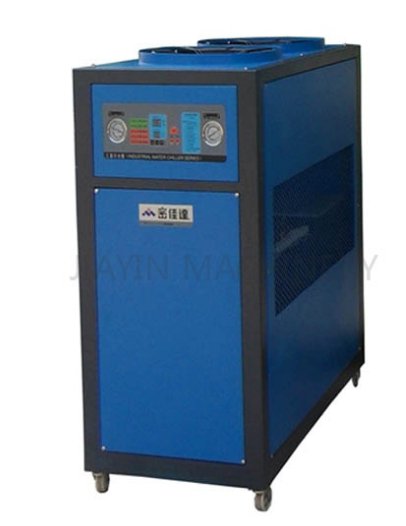

3, Chiller: use to cooling the molds, because after long time operation, the molds will become hot;

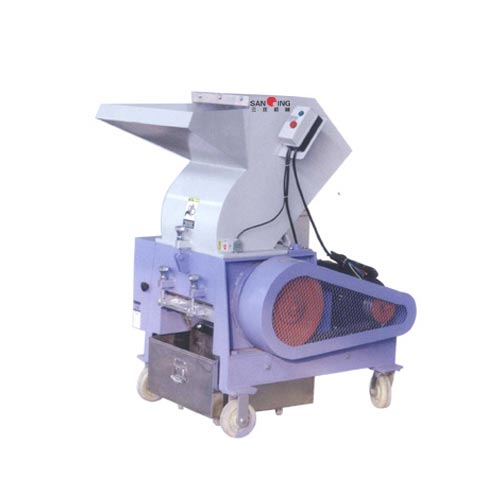

4, Crusher: for the waste material from the blow molding machine, crusher will break the waste material to be small pieces, so we could use the recycled materil to mix with virgin resins again(customer decied to reuse material depends on the actual condition).

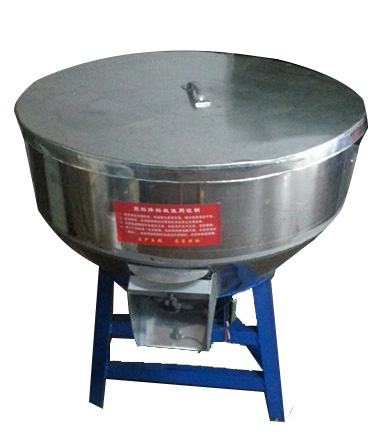

5, Mixer: The recyled material will be mixed with virgin resins and use mixer to mix the materials averagely.
