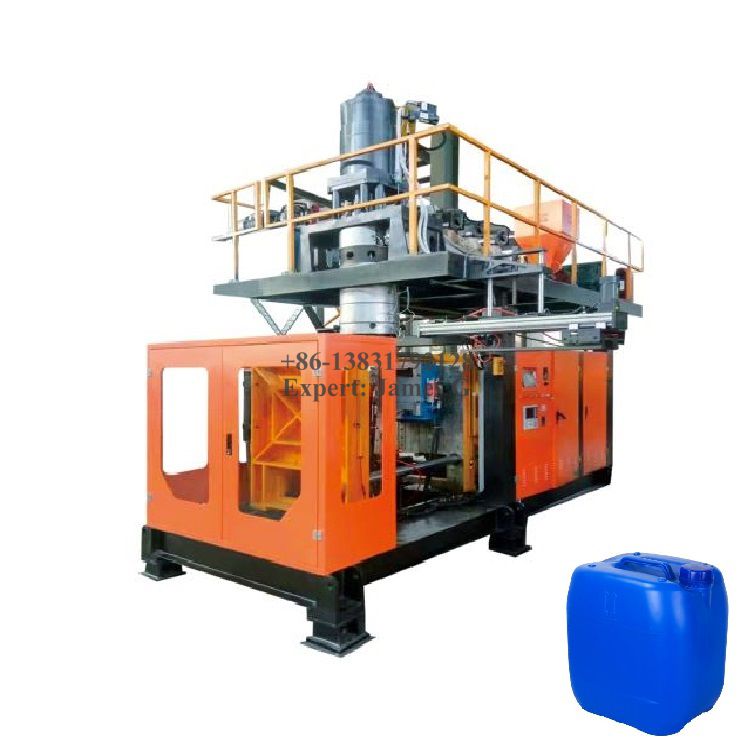

25L Hydraulic Blow Molding Machine

hdpe bottle blowing machine

This 25L blow molding machine is suitable for big tanks.

25L Hydraulic Blow Molding Machine
Model

25L Blow Molding Machine

Specifications select

Product Detail

           This type of machine works by hydraulic power, which could produce max. 25 Liter tanks. This machine equipped with accumulated die head, parison controller, every hour could produce 40 pieces. The machine controls by PLC system, operator could control machine by touch screen. The HDPE/PP material could be used by this machine. The storage tank, oil tank, water tanks and chemical tanks could be produced by this 25L blow molding machine.


Video Demo:




Machine Parameters:


Parameters

Unit

25L Machine

Max. Product Volume

L

30

Cycle Time

PCS/H

400

Screw Diameter

MM

80

Screw L/D Ratio

L/D

25

Screw Drive Power

KW

22-30

Screw Heating Capacity

KW

18

Heating Zones Quantity

ZONE

4

Material Output

KG/H

80-100

Clamping force

KN

240

Mold Stroke

MM

350-850

Max. Mold Size

MM

450X650

Material Storage Volume

L

3.5-5

Max. Die Diameter

MM

280

Die Heating Power

KW

12

Die Heating Segments

ZONE

4

Blowing Pressure

MPA

0.8

Air Volume

M3/MIN

1.0

Cooling water pressure

MPA

0.3

Water Consumption

L/MIN

80

Machine Size

L X W X H

4.2X1.8X3.5

Machine Weight

TON

9

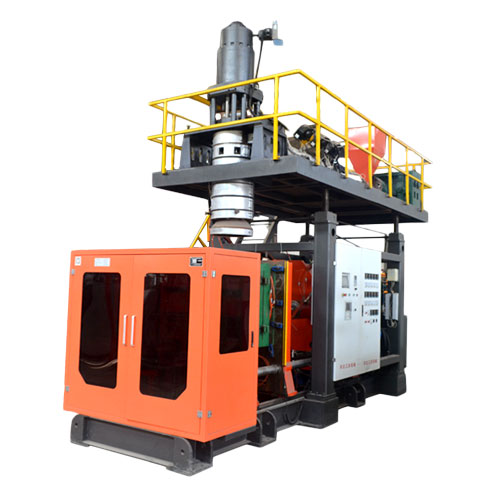

Machine Photo:

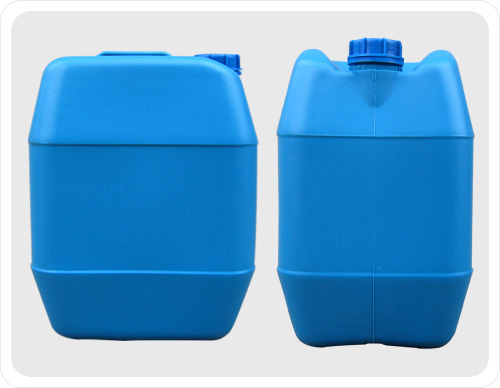

The below tanks could be produced:





No comment

Product Detail

           This type of machine works by hydraulic power, which could produce max. 25 Liter tanks. This machine equipped with accumulated die head, parison controller, every hour could produce 40 pieces. The machine controls by PLC system, operator could control machine by touch screen. The HDPE/PP material could be used by this machine. The storage tank, oil tank, water tanks and chemical tanks could be produced by this 25L blow molding machine.


Video Demo:




Machine Parameters:


Parameters

Unit

25L Machine

Max. Product Volume

L

30

Cycle Time

PCS/H

400

Screw Diameter

MM

80

Screw L/D Ratio

L/D

25

Screw Drive Power

KW

22-30

Screw Heating Capacity

KW

18

Heating Zones Quantity

ZONE

4

Material Output

KG/H

80-100

Clamping force

KN

240

Mold Stroke

MM

350-850

Max. Mold Size

MM

450X650

Material Storage Volume

L

3.5-5

Max. Die Diameter

MM

280

Die Heating Power

KW

12

Die Heating Segments

ZONE

4

Blowing Pressure

MPA

0.8

Air Volume

M3/MIN

1.0

Cooling water pressure

MPA

0.3

Water Consumption

L/MIN

80

Machine Size

L X W X H

4.2X1.8X3.5

Machine Weight

TON

9



Machine Photo:

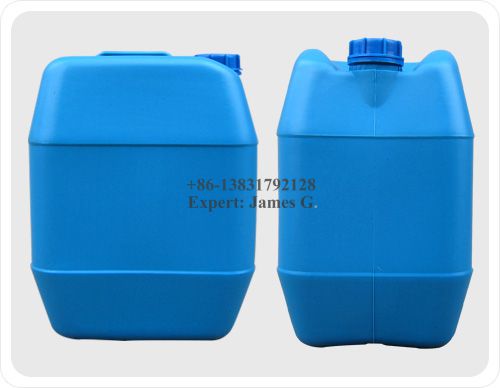

The below tanks could be produced:
