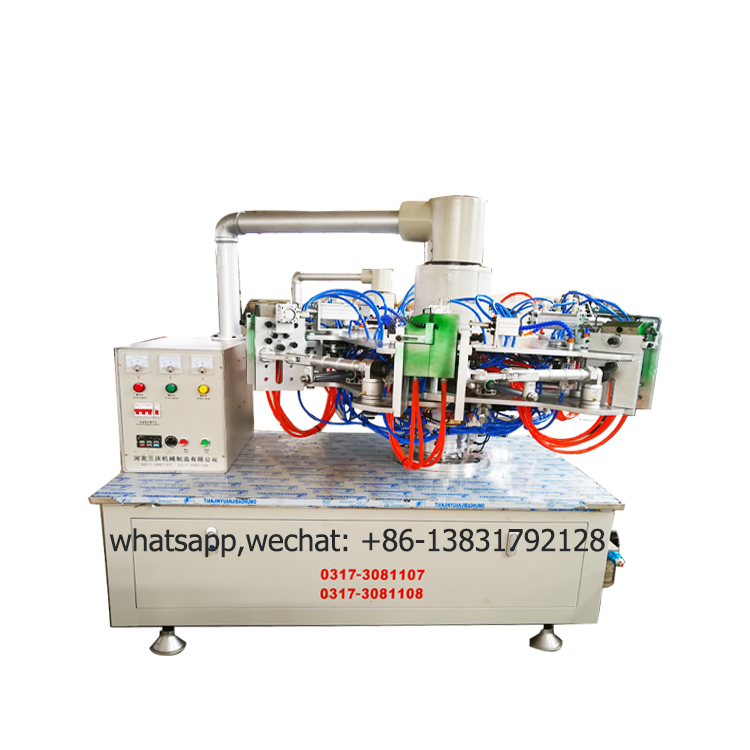

hdpe litchi/milk/yogurt bottle blowing machine

hdpe bottle blowing machine

hdpe litchi/milk/yogurt bottle blowing machine, this machine could produce hdpe bottles such as litchi bottles, milk bottles, yogurt bottles and other related hdpe bottles.

hdpe litchi/milk/yogurt bottle blowing machine
Model

SQ-4 SQ-6 SQ-8

Specifications select

Product Detail

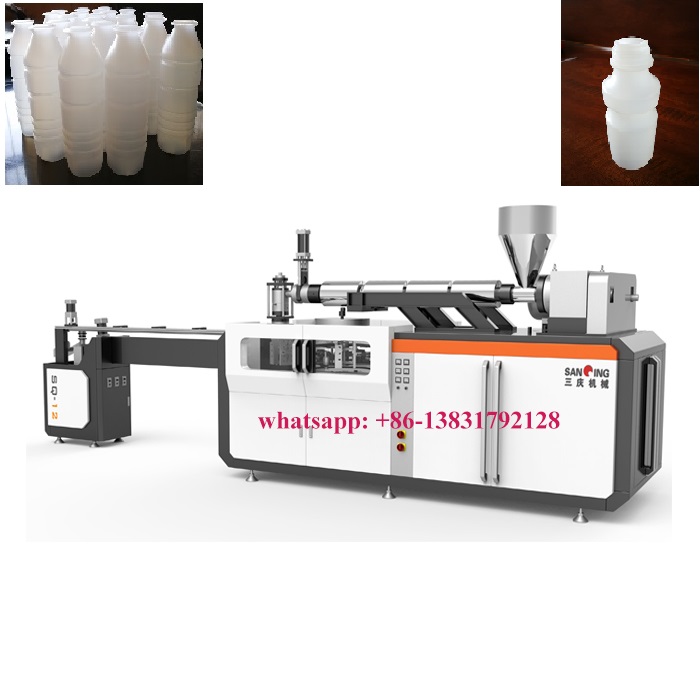

            Rotary Blow Molding Machine


             This type of machine is suitable to produce HDPE type bottles with cutting neck. For example milk bottles, yogurt bottles, etc. The most biggest advantage of this machine is achieved full automatic operation. The bottles could be trimmed automatically after delivery out from conveyor.


             For this type of machine, we could produce 4 molds, 6 molds, 8 molds, customer could choose based on the requirement.


Speed: 500ml bottles: about 1500 PCS per hour;


Max. Bottle Containment

800ml

Working Stations

6 stations

Productive capacity

1200 PCS per Hr (500ml bottle)

Allowed Mould width

125mm

Allowed Mould Thickness

118mm

Blowing Air pressure

0.4-0.7Mpa

Rated Power

25kw

Extruder Screw Diameter

75mm

Plasticizing Capacity

60KG/Hour

Size of Main Frame(L.W.H)

4500×1200×1700mm

Machine video is as below:

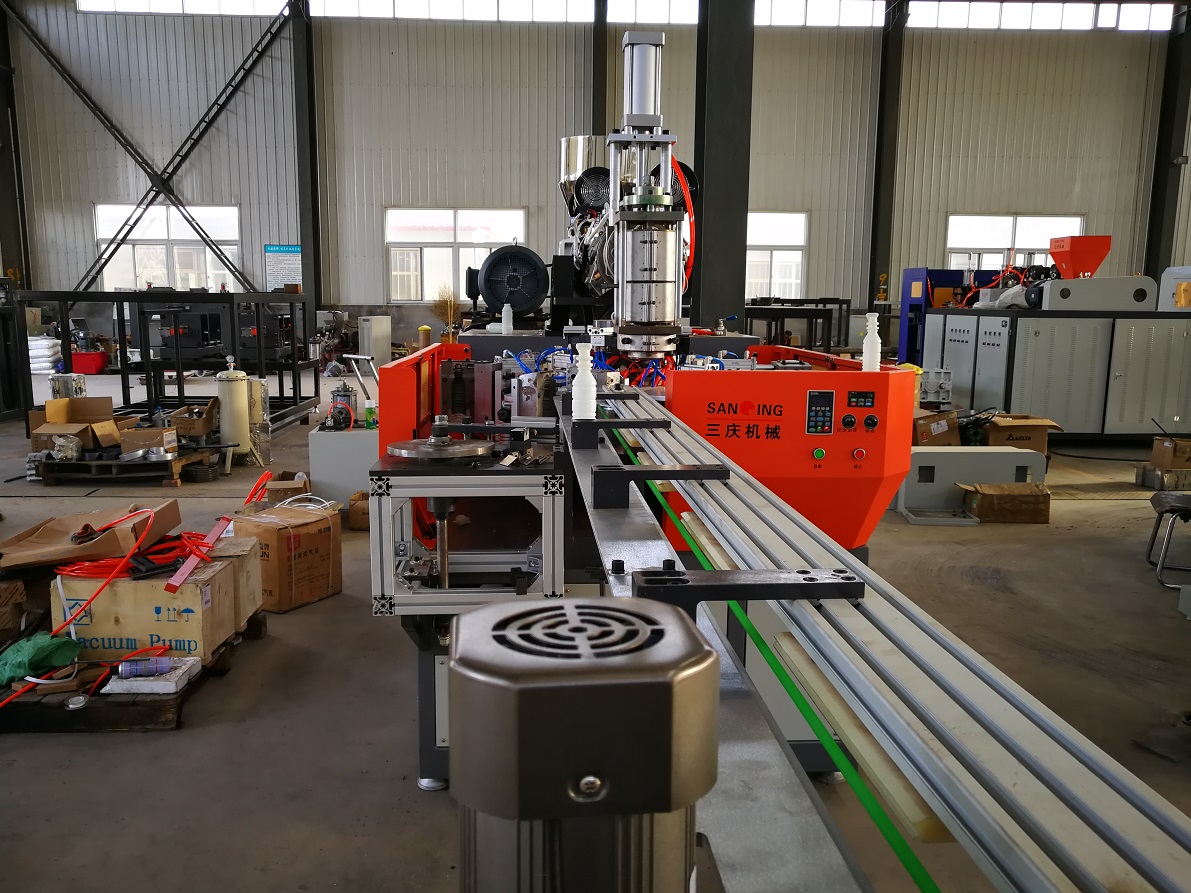

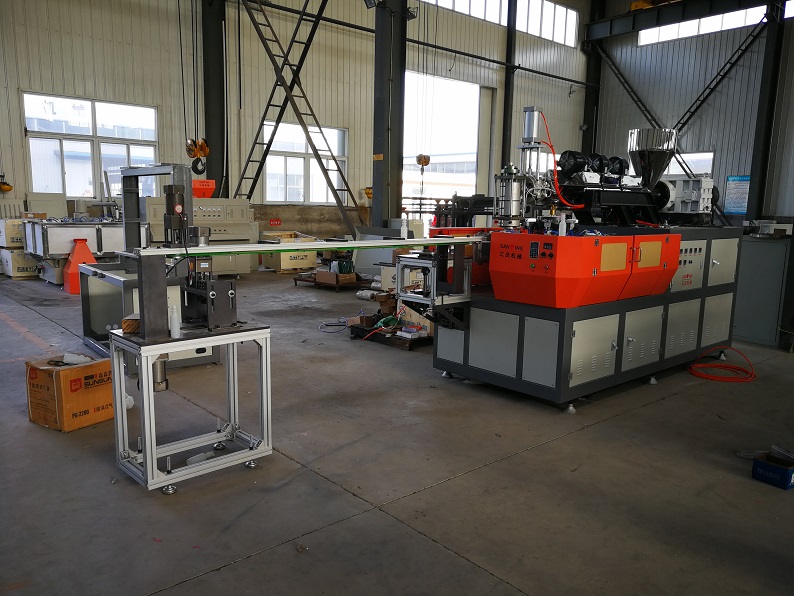

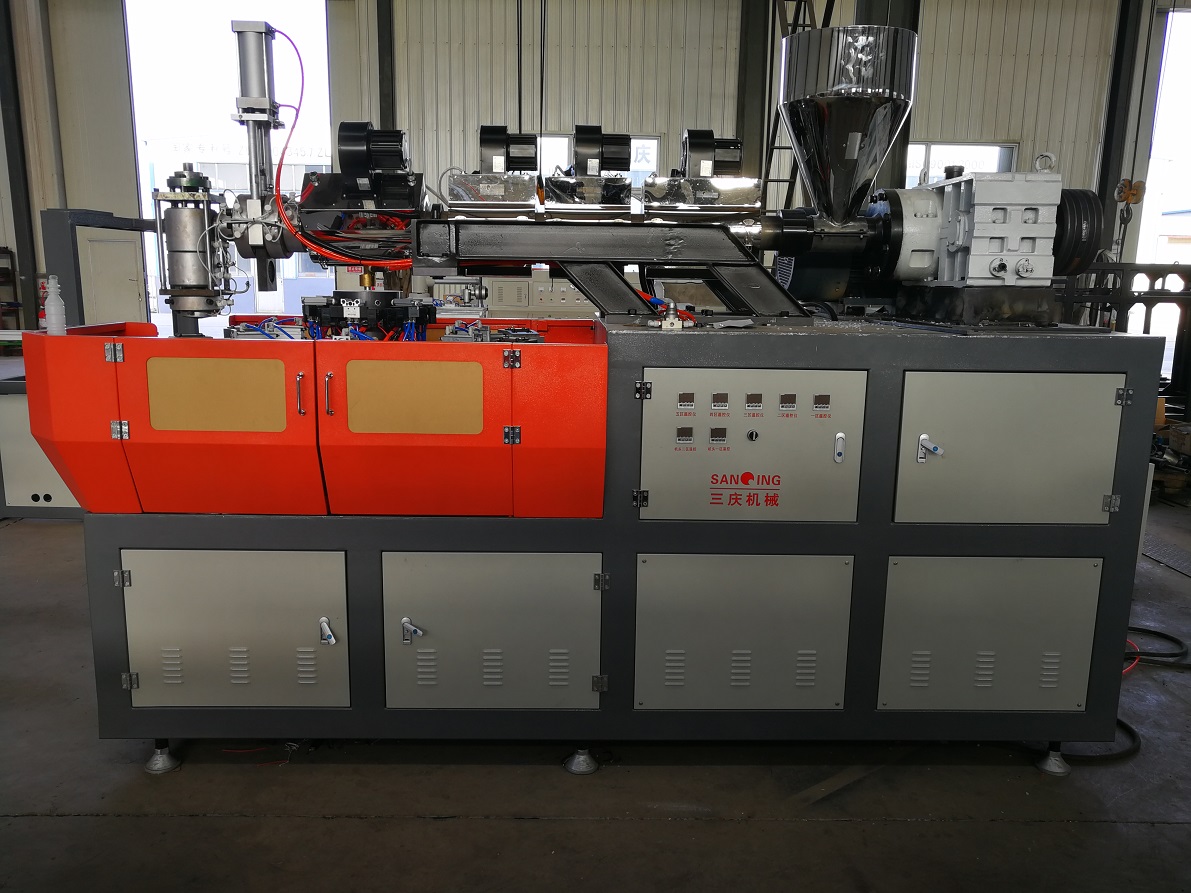

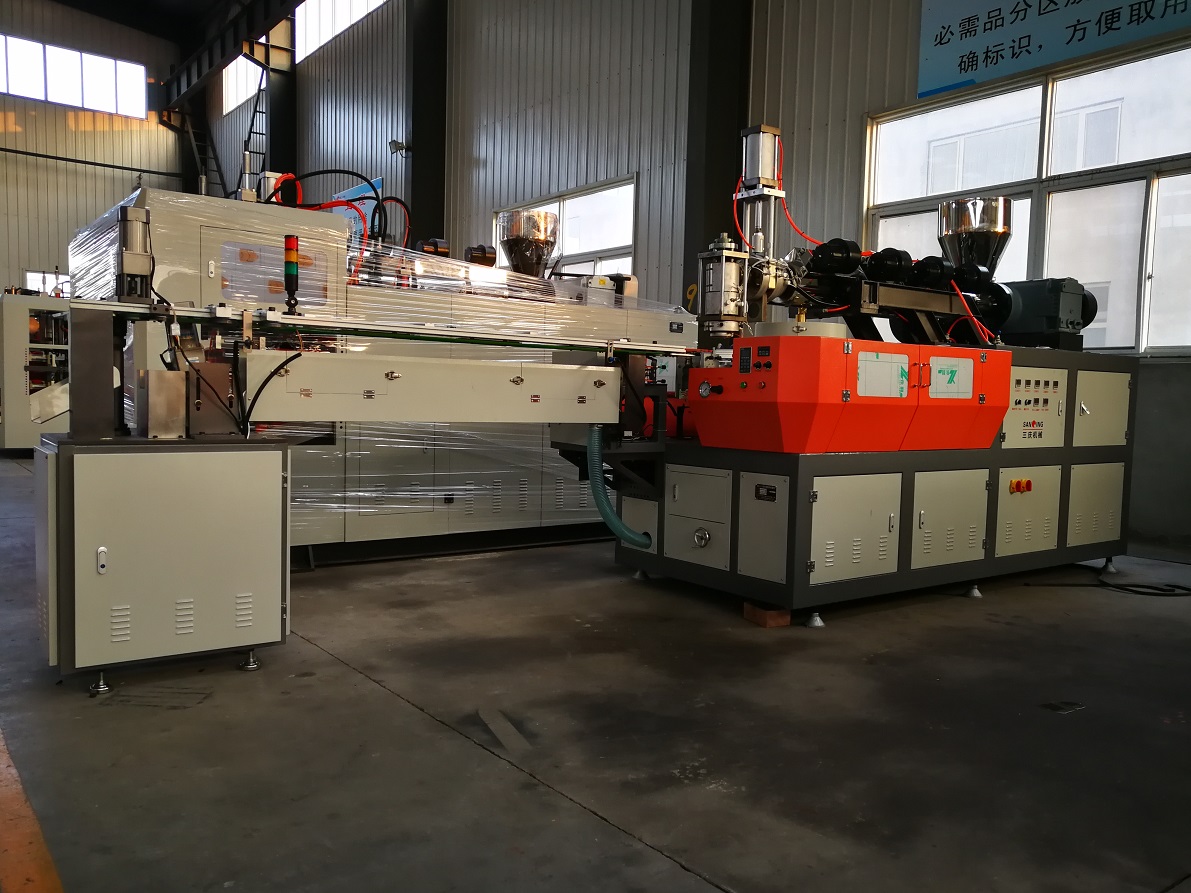

The machine actual photo as below:

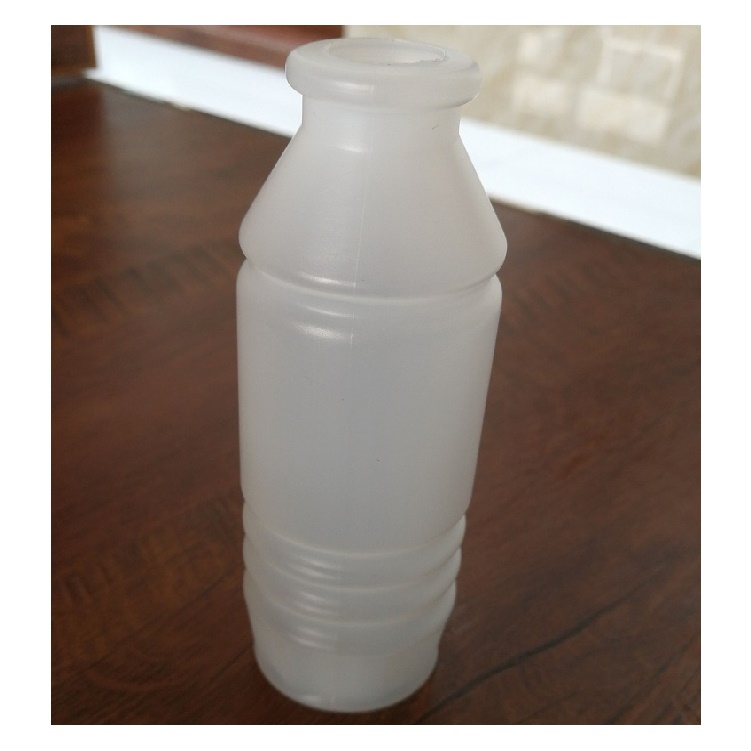

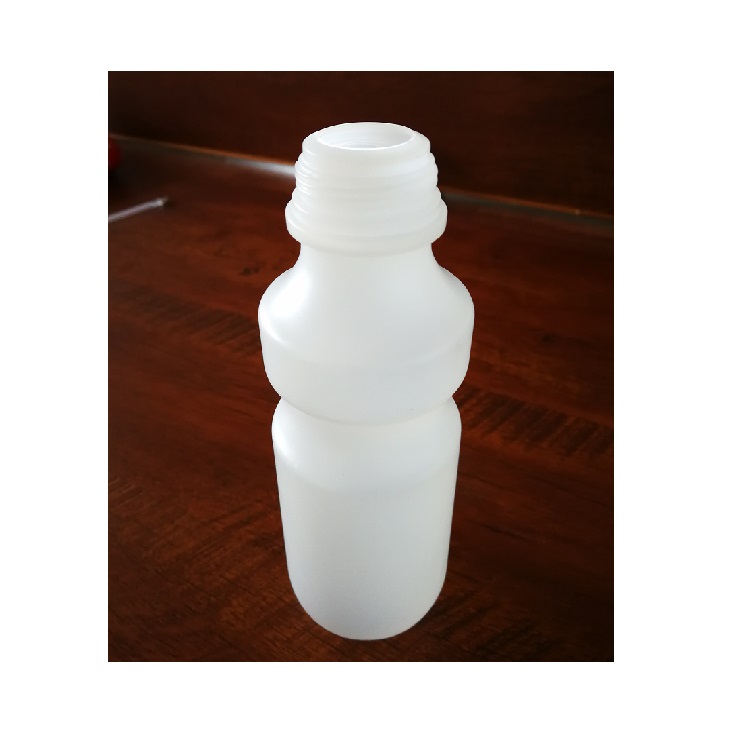

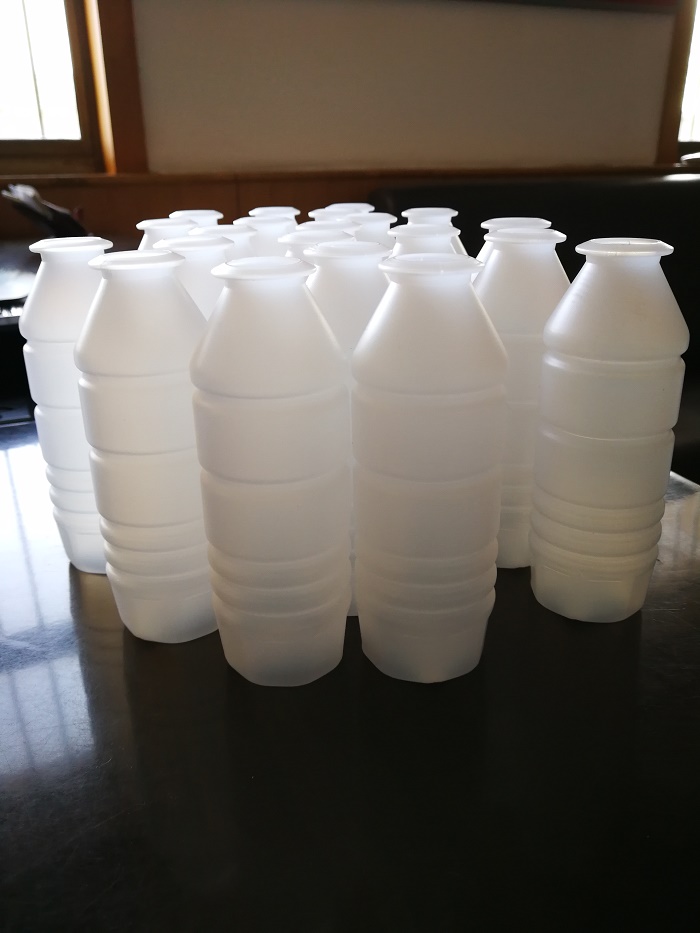

This machine could produce the bottles as below:




No comment

Product Detail

            Rotary Blow Molding Machine


             This type of machine is suitable to produce HDPE type bottles with cutting neck. For example milk bottles, yogurt bottles, etc. The most biggest advantage of this machine is achieved full automatic operation. The bottles could be trimmed automatically after delivery out from conveyor.


             For this type of machine, we could produce 4 molds, 6 molds, 8 molds, customer could choose based on the requirement.


Speed: 500ml bottles: about 1500 PCS per hour;


Max. Bottle Containment

800ml

Working Stations

6 stations

Productive capacity

1200 PCS per Hr (500ml bottle)

Allowed Mould width

125mm

Allowed Mould Thickness

118mm

Blowing Air pressure

0.4-0.7Mpa

Rated Power

25kw

Extruder Screw Diameter

75mm

Plasticizing Capacity

60KG/Hour

Size of Main Frame(L.W.H)

4500×1200×1700mm

Machine video is as below:




The machine actual photo as below:



This machine could produce the bottles as below:
