High Speed 12 Stations Vertical Style Blow Molding Machine

High speed 12 stations verticle style blow molding machine is designed to produce ice lolly tubes with high output, each hour could reach 5000-6000 pieces. It achieved automatically process function.

High Speed 12 Stations Vertical Style Blow Molding Machine
SQ-12

SQ-10

Specifications select

Product Detail

High Speed 12 Stations Vertical Style Blow Molding Machine

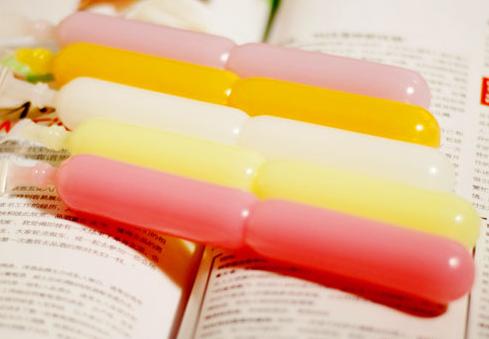

        This type of blow molding machine is specially designed for ice lolly tubes product, the most best character is output volume, every hour could produce 5000-6000 pieces of lolly automatically. It could produce lollys 45ml to 90ml.


       The lolly bottle could be redesigned according to customer requirement and include exchangeable month and year. If you need more information, please let us know.



序号

中文说明

Item

备注

1

机器型号

Machine Model

SQ-10

工位数量

Working Stations Quantity

10-12 Stations

10-12

2

瓶子容积

Bottle Volume

Max.  100ml



***100毫升

3

吹制速度

Production Speed

5000-6000 PCS/H

5000-6000/小时

5

螺杆直径

Screw Diameter

55mm

6

产品***直径

Product Max. Diameter

25mm

7

***开模量

Max. Distance of Mold Board

8

模具厚度

Mold Thickness

120 mm

9

模具宽度

Mold Width

120 mm

10

总功率

General Power

18KW

11

平均能耗

Average Power Consumption

15KW

12

设备特点

Machine Characteristic

Produce Lolly Tube Automatically

可做棒棒冰产品

13

吹制产品

Blow Products

Ice lolly tubes

吹制棒棒冰产品

配置 Components Brands and manufacturer

电机品牌

Motor Brand

Shunyi, China

中国顺义

变频器品牌

Inverter Brand

Delta, Taiwan

台湾台达

PLC品牌

PLC Brand

Omron, Japan

欧姆龙

电器元件品牌

Electric Component Brand

Delixi, China

德力西

气缸品牌

Air Cylinder

Isaiah, China

中国以赛亚

螺杆品牌

Screw Brand

ZhouShan, China

中国舟山

减速机品牌

Gearbox Brand

GuoMao,GuoTai, China

中国国茂国泰

显示屏

Monitor

WEINVIEW

威纶

机头品牌

Die Head Brand

Sanqing, China

三庆自制

Parameters


Video presentation as below:


video demo

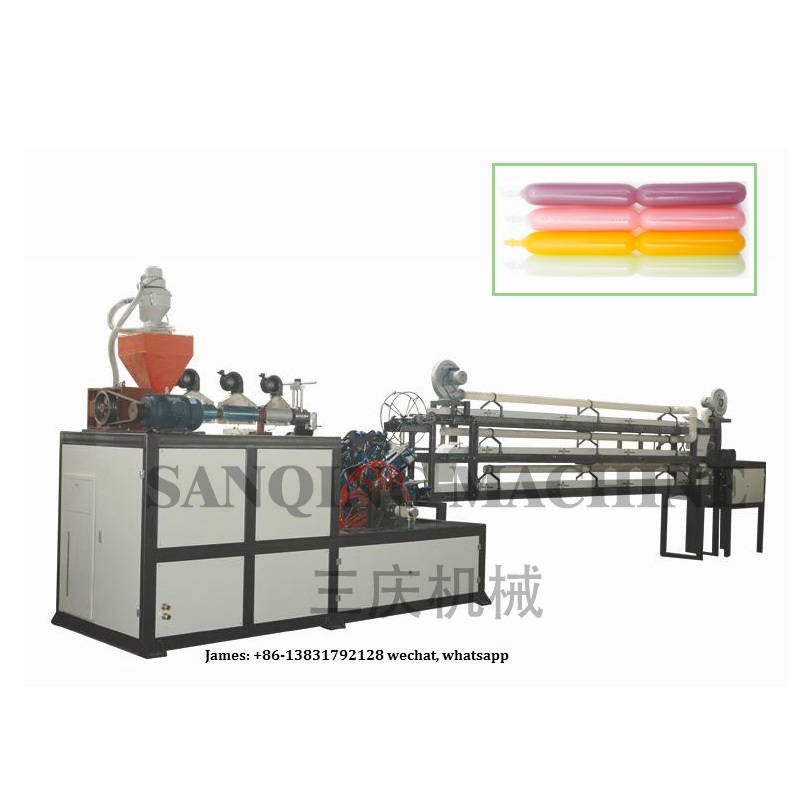

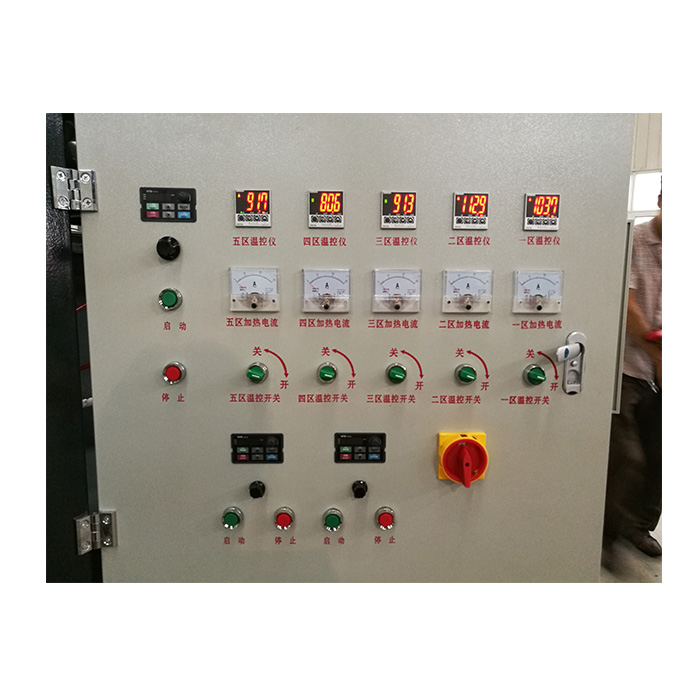

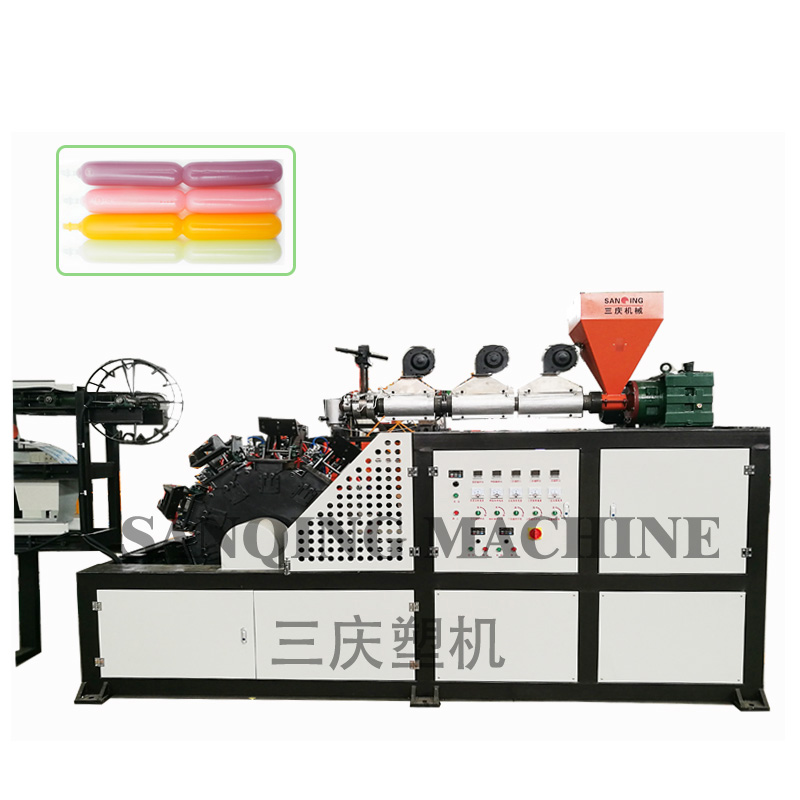

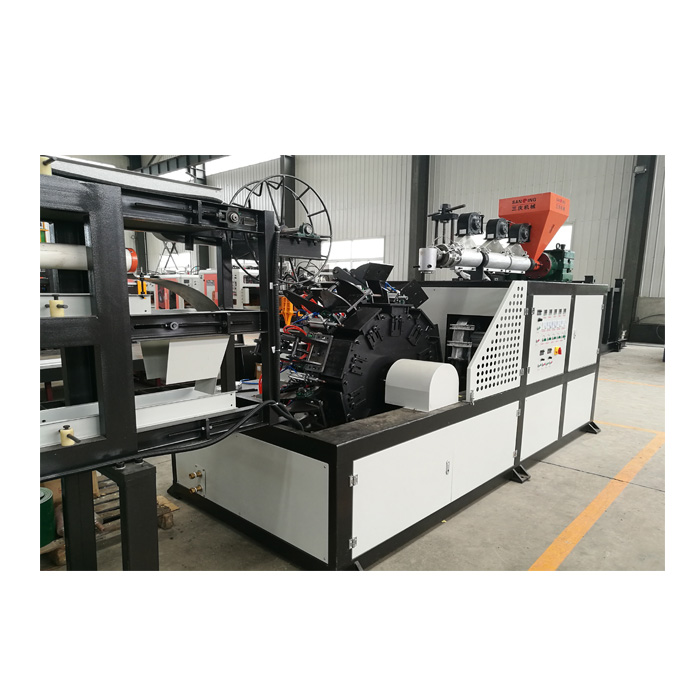

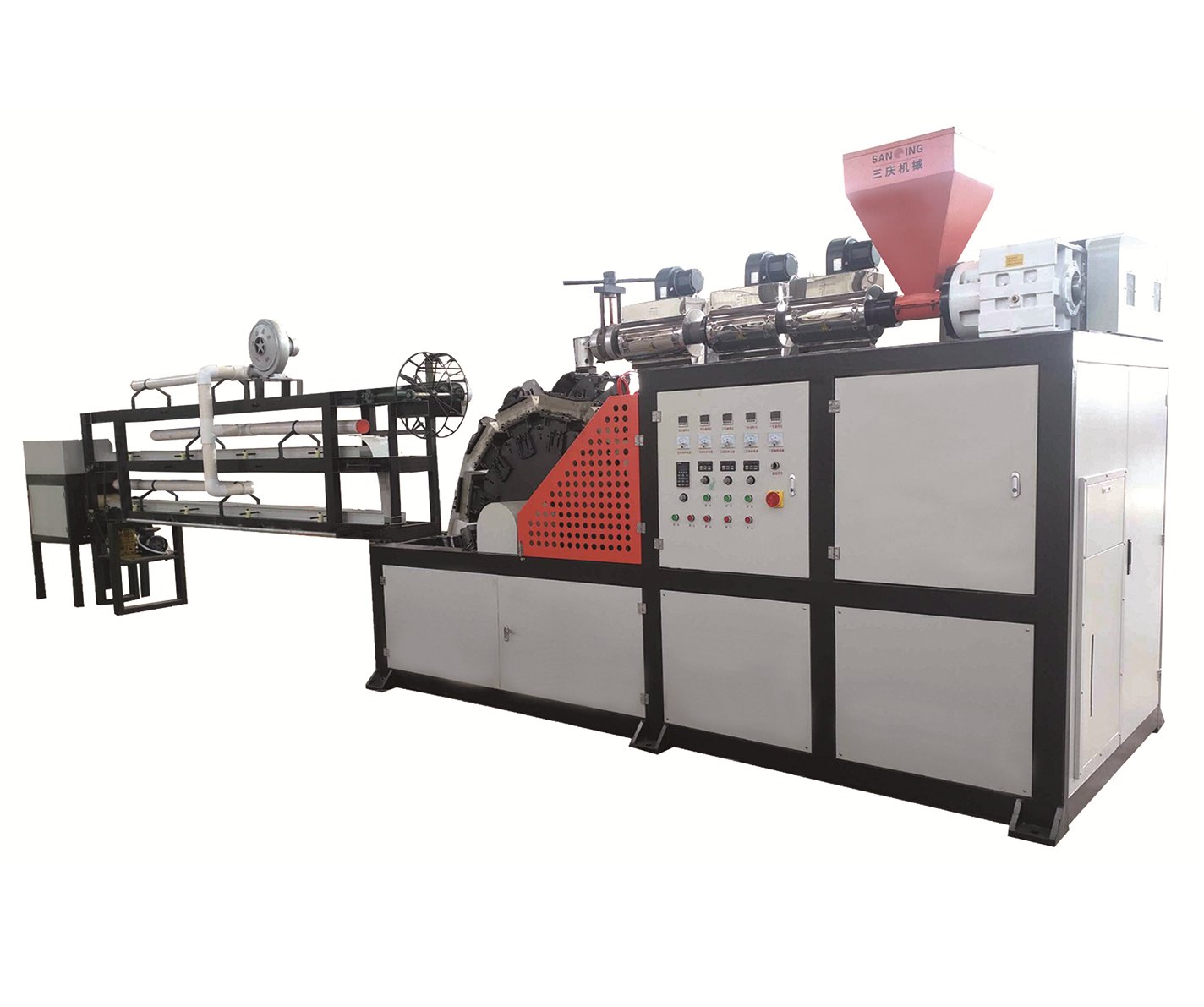

Photos of the machine as below:


No comment

Product Detail

High Speed 12 Stations Vertical Style Blow Molding Machine


        This type of blow molding machine is specially designed for ice lolly tubes product, the most best character is output volume, every hour could produce 5000-6000 pieces of lolly automatically. It could produce lollys 45ml to 90ml.


       The lolly bottle could be redesigned according to customer requirement and include exchangeable month and year. If you need more information, please let us know.
