ice pop production line setup

Author:James G. Click: Time:2020-04-09 11:33:18

ICE POP PRODUCTION LINE SETUP


            Many friends would like to setup a small factory to produce ice lolly product. Indeed, ice lolly is the best cool beverage. So, you will be like to understand what are the equipments do you need for the whole plant. Let's introduce you for it.

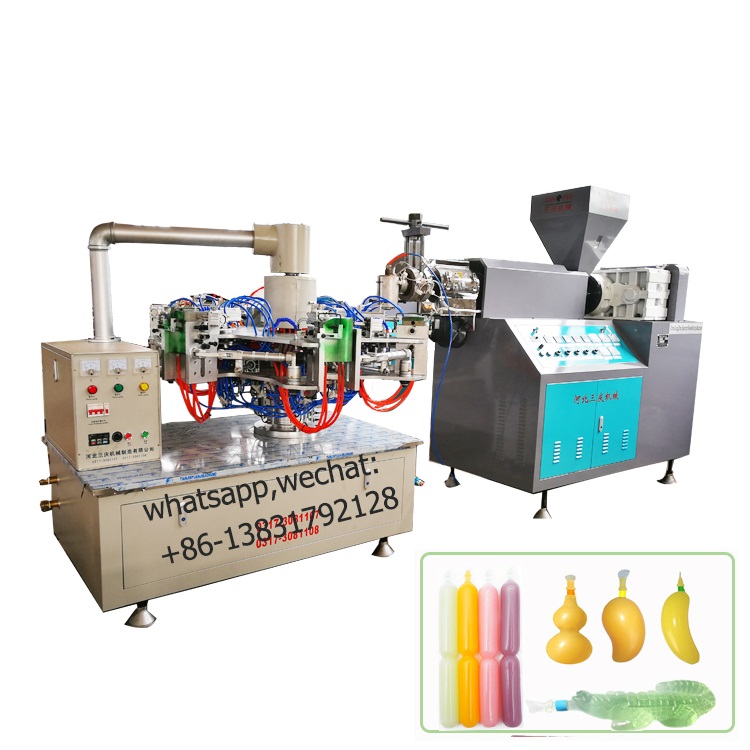

            First of all, you need to have at least one set ice lolly tube blowing machine. this machine could provide stable lolly tubes supply, you could choose two machines, so you could get 6000 pieces per hour. Our blowing machines work satable and long lasting, which could work more than 10 years.  To work together with the machine, you need ice lolly tube molds also,  we could design the tubes according to customer requirement, such as volume, logo, ingredients, month, year, etc.


            Air compressor is needed for blow molding machine, so that it could provide the pneumatic power for the blowing machine; Chiller is necessary for working with the machine, because it could supply cool water to cool down the molds. Auto loader could help save manpower to load the raw materials. Customer could choose based on the requirements.

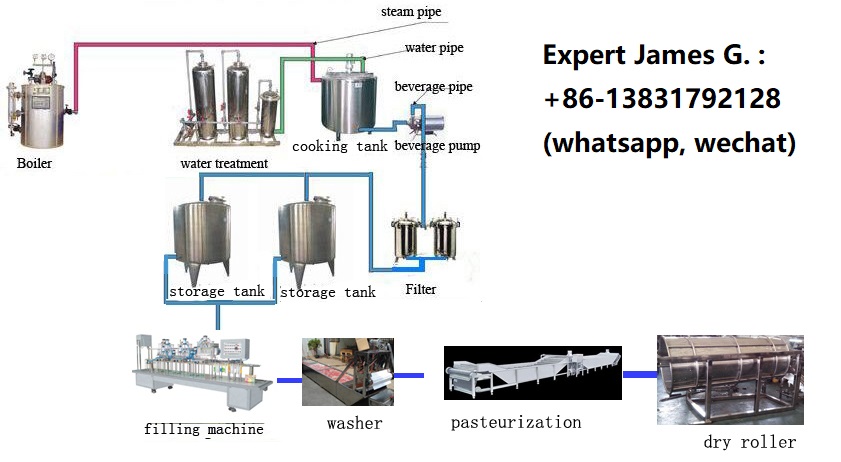

            Look at the below chart, one cooking tank used to prepare the juice and the two storage tank use to stock the coocked ready juice. Then the juice is pump to the filling machine to fill the ice lolly tubes, this filling machine normally have the function of filling, sealing, the ice pop product is sealed by the filling machine. Then the ice lolly will be washed and pasterized in different conveyor tanks.


             The total investment is around 100,000 dollars usually.

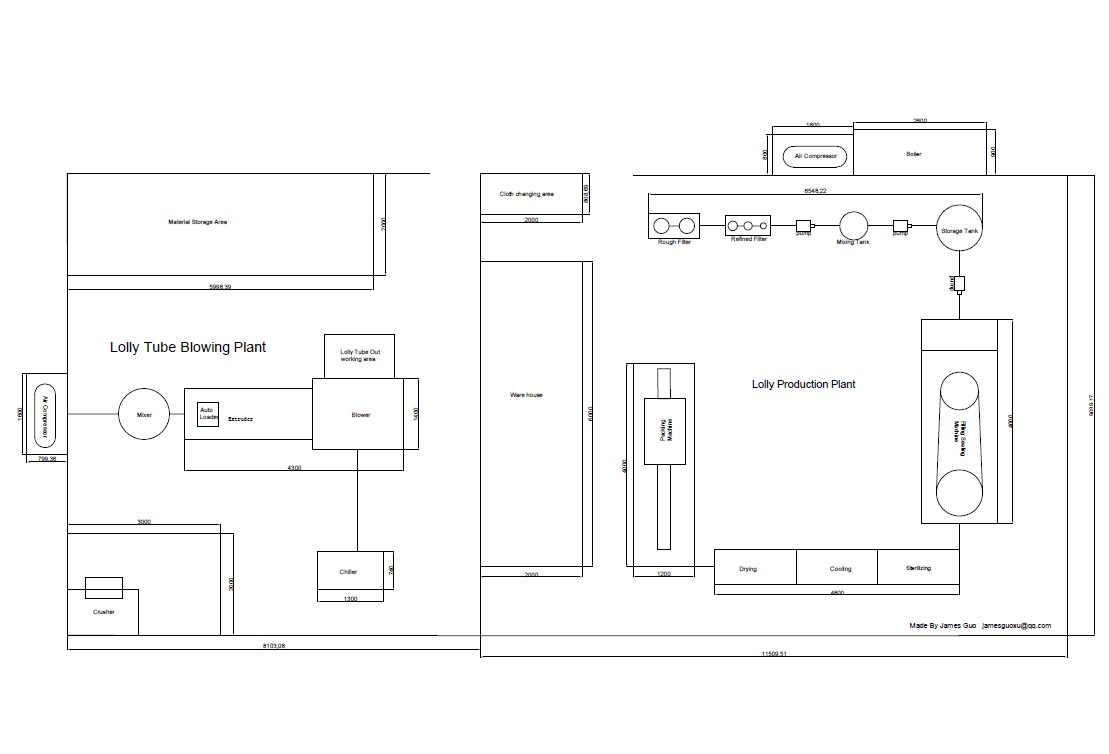

              The below is the factory layout design for ice lolly product. You could take this as an example. You also could let us know your requirement, so we could design a factory layout based on your needs. We are able to provide the full production line to fullfill your requirement. Please contact us for more.  jamesguoxu@qq.com  or you can reach us by +86-13831792128.(whatsapp, wechat)
